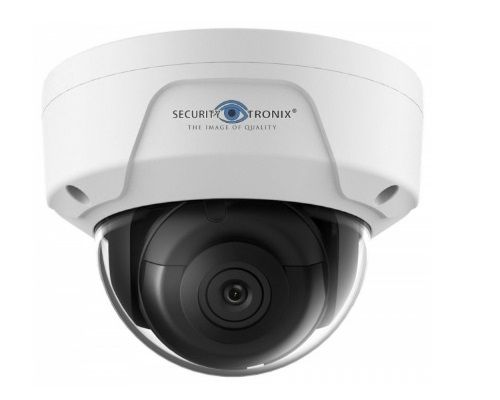

SecurityTronix ST-IP4FD-2-8 4 Megapixel IR Outdoor Dome Camera, 2.8mm Lens
SKU
ST-IP4FD-2-8
Model No
ST-IP4FD-2-8
$198.91
Product Highlights
- Up to 4 megapixel high resolution
- Full HD 2560 x 1440 @ 30fps video
- Three streams
- 2.8mm or 4.0mm fixed lens
- 120dB Wide dynamic range
Speak to an expert
The ST-IP4FD-2-8 from SecurityTronix is a 4 Megapixel IR Outdoor Dome Camera with a 2.8mm Lens designed for superior outdoor surveillance. This camera offers robust features including IP67 weatherproofing and IK10 vandal resistance, making it ideal for challenging environments. With its high-resolution performance and advanced technology such as 3D Digital Noise Reduction, this camera ensures clear imagery day and night, providing peace of mind for your security needs.
SecurityTronix ST-IP4FD-2-8 Camera Features
- High Resolution: Up to 4 megapixel clarity, ensuring detailed and accurate footage for security monitoring.
- Full HD Video: Captures video at 2560 x 1440 pixels at 30fps, providing smooth and clear images.
- Multi-Streaming: Supports three streams for flexible viewing options and efficient bandwidth management.
- Lens Options: Available with a 2.8mm fixed lens for wide coverage.
- Wide Dynamic Range: 120dB range enhances image quality in varied lighting conditions.
- Noise Reduction: 3D Digital Noise Reduction improves image quality in low-light situations.
- Backlight Control: Backlight compensation helps in capturing clear images in high-contrast lighting.
- Region of Interest: Allows users to focus on specific areas for detailed monitoring.
- Housing Color Options: Available in black or white to suit different environments.
- Power Options: Supports both DC12V and PoE for flexible installation.
- Compression Formats: Supports H.265+, H.265, H.264+, and H.264 for optimized video storage.
- IR Range: Infrared capability up to 98 feet for night-time surveillance.
- 3-Axis Adjustment: Provides versatile mounting options for optimal positioning.
- Weatherproof Rating: IP67 rated to withstand harsh weather conditions.
- Vandal-Proof Rating: IK10 rating offers high resistance to physical impact.
- Advanced Analytics: Includes behavior analysis and face detection features for enhanced surveillance capability.
SecurityTronix ST-IP4FD-2-8 Detailed Specifications
| Feature | Details |
|---|---|
| Resolution | 4 Megapixels |
| Video Quality | 2560 x 1440 @ 30fps |
| Lens Type | 2.8mm fixed lens |
| Weather Rating | IP67 |
| Vandal Resistance | IK10 |
| Power Supply | DC12V & PoE |
| IR Range | Up to 98 feet |
| Dimensions | Compact dome design |
| Storage Support | SD card support up to 128GB (not included) |
| Features | 3D Digital Noise Reduction, Backlight Compensation, Wide Dynamic Range, etc. |
SKU  | ST-IP4FD-2-8 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Infrared, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 111 × 82mm (4.4 × 3.2”) |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/3” Progressive Scan CMOS |
| Minimum Scene Illumination | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C – 60 °C (-22 °F – 140 °F) |
| Power Consumption | 12 VDC, 0.5A, max. 6W |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Video Output | RJ45 |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 2.8mm: horizontal FOV 98°, vertical FOV 55°, diagonal FOV 114° |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
