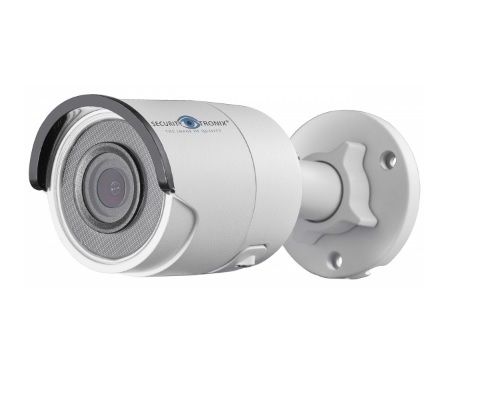

The ST-IP4FB-6 from SecurityTronix is a 4 Megapixel IR Outdoor Bullet Camera with 6mm Lens. IP cameras provide clear, quality images making it easy to identify people, objects, and areas whether viewing live or playing back recorded video surveillance footage. These cameras transmit and receive video and control data over a single network cable and can be remotely configured across the network for video analytics, such as object placement, object removal, face detection, and line crossing detection. Additional configuration options are available to trigger alarms, send email alerts and cameras can connect to the NACEConnect CloudView cloud-based platform for retention of recorded video off-site. Multiple video streams are available to send video for NVR recording and mobile device streams. The compact design includes an IP67 weather rating, Wide Dynamic Range (WDR) to provide a clear image when a lighting change occurs behind the subject being viewed, and IR LEDs allow the camera to see in total darkness up to 98 feet. The camera can be powered via PoE (Power over Ethernet) or locally with a 12V DC power supply. Power supply not included.
SecurityTronix ST-IP4FB-6 Key Features
Resolution: Up to 4 megapixels for high clarity images.
Video Quality: Full HD 1080p video ensures maximum detail in footage.
Dual Streams: Allows simultaneous video streaming for NVR recording and mobile access.
Lens: 6mm fixed lens for reliable zoom and focus.
Wide Dynamic Range: 120dB WDR provides clear images even with challenging lighting conditions.
Noise Reduction: 3D Digital Noise Reduction enhances video quality in low light situations.
Backlight Compensation: Improves visibility in backlit scenes.
Power Options: Works with DC12V or Power over Ethernet for flexible installation.
Compression Support: Supports H.264 and H.264+ for efficient video storage.
IR Range: Night vision capabilities up to 98 feet with built-in IR LEDs.
Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Infrared, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer
SecurityTronix
Camera Signal
Network IP
Connection Type
Wired
Infrared Distance
61~100 Feet
Resolution
4 Megapixel
Lens Type
Fixed
Lens Size
6mm
Mount Type
Ceiling, Wall
Compression Method
H.264, M-JPEG, H.264+
Durability
Weather Resistant
Voltage
12vDC, PoE
Dimensions (W x H)
60.4×76.9×139.2mm (2.4” × 3.0” × 5.5”)
Electronic Shutter
1/3 s to 1/100,000 s
Image Device
1/3” Progressive Scan CMOS
Minimum Scene Illumination
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR, 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR
