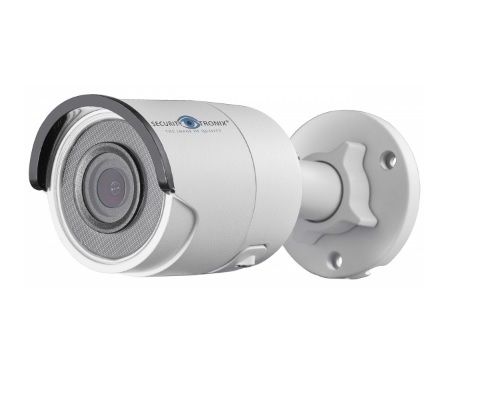

SecurityTronix ST-IP4FB-2-8 4 Megapixel IR Outdoor Bullet Camera with 2.8mm Lens
SKU
ST-IP4FB-2-8
Model No
ST-IP4FB-2-8
$198.91
Product Highlights
- Up to 4 megapixel high resolution
- Full HD1080p video
- Dual video streams
- 2.8mm fixed lens
- 120dB Wide Dynamic Range
Speak to an expert
The ST-IP4FB-2-8 from SecurityTronix is a high-performance 4 Megapixel IR Outdoor Bullet Camera equipped with a 2.8mm lens, designed for security surveillance. With its superior image quality, this camera enables easy identification of individuals and objects both in real-time and recorded footage. Featuring advanced analytics, weatherproof housing, and powerful infrared capabilities, it is ideal for monitoring a variety of environments. Enjoy the peace of mind that comes with remote configuration, reliable video retention, and a sleek design built for outdoor use.
SecurityTronix ST-IP4FB-2-8 Camera Features
- High Resolution: Up to 4 megapixel ensures clear and detailed images for reliable identification.
- Full HD Video: Offers Full HD 1080p video quality, enhancing viewing clarity during live feeds and playback.
- Dual Video Streams: Provides multiple streams for diverse recording and monitoring options, accommodating different viewing needs.
- Fixed Lens: The 2.8mm fixed lens captures a wider field of view for comprehensive surveillance coverage.
- Wide Dynamic Range: 120dB WDR improves image visibility in varying lighting conditions, ensuring clear footage.
- Noise Reduction: 3D Digital Noise Reduction minimizes graininess in low-light scenarios for clearer images.
- Backlight Compensation: Enhances visibility in challenging lighting conditions by adjusting image brightness.
- Power Flexibility: Supports both DC12V and PoE (Power over Ethernet) for versatile installation options.
- Video Compression: Supports H.264 & H.264+ codecs for efficient video storage and transmission.
- IR Range: Up to 98’ IR range allows for effective nighttime surveillance in total darkness.
- Adjustable Design: 3-axis adjustment enables precise camera positioning for optimal monitoring angles.
- Weather-Proof Housing: Rated IP66, the camera is protected from dust and heavy rain, suitable for outdoor use.
- Durable Construction: Metallic housing and bracket ensure robust performance and long-lasting durability.
SecurityTronix ST-IP4FB-2-8 Detailed Specifications
| Feature | Details |
|---|---|
| Resolution | 4 Megapixel |
| Video Output | Full HD 1080p |
| Lens Type | 2.8mm Fixed Lens |
| Wide Dynamic Range | 120dB WDR |
| Noise Reduction | 3D Digital Noise Reduction |
| Weather Rating | IP66 |
| IR Distance | Up to 98 feet |
| Power Options | DC12V & PoE |
| Video Compression | H.264 & H.264+ |
SKU  | ST-IP4FB-2-8 |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Infrared, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.264+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 60.4×76.9×139.2mm (2.4” × 3.0” × 5.5”) |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/3” Progressive Scan CMOS |
| Minimum Scene Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR, 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C – 60 °C (-22 °F – 140 °F) |
| Power Consumption | 5W MAX (Max. 7 W w/ IR cut filter on) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Video Output | RJ45 |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D DNR |
| IR Distance | 30m/98ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
