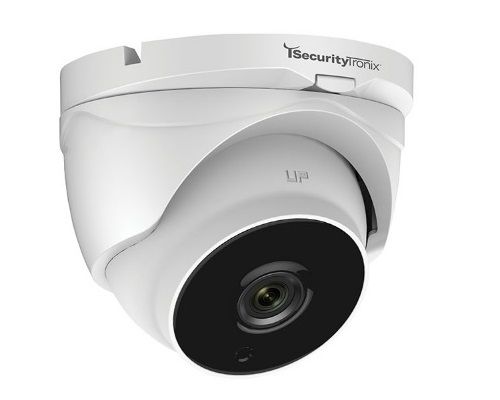

SecurityTronix ST-HDC2VFTD-MZ 2 Megapixel IR HD-TVI/Analog Turret Dome Camera with 2.8-12mm Lens
SKU
ST-HDC2VFTD-MZ
Model No
ST-HDC2VFTD-MZ
$121.68
Product Highlights
- 2MP High Resolution
- Incorporates HD-TVI to provide HD 1080p video over coaxial cable
- Motorized 2.8mm - 12.0mm vari-focal lens
- True Day/Night, Smart IR
- IR Distance up to 131 Feet
Speak to an expert
The ST-HDC2VFTD-MZ from SecurityTronix is a 2 Megapixel IR HD-TVI/Analog Turret Dome Camera with a 2.8-12mm lens that ensures high-definition surveillance for both indoor and outdoor applications. Featuring advanced technologies such as Smart IR and Digital Noise Reduction, this camera delivers vibrant images even in low light conditions, making it an ideal choice for security installations that require clear video footage day and night.
SecurityTronix ST-HDC2VFTD-MZ Camera Features
- 2MP High Resolution: Provides crisp and clear images for accurate monitoring and identification.
- HD-TVI Technology: Incorporates HD-TVI to deliver 1080p high-definition video over standard coaxial cable, simplifying installation.
- Motorized Vari-focal Lens: The 2.8mm to 12.0mm lens allows for flexible zoom capabilities, enabling users to adjust the field of view as per their requirements.
- True Day/Night & Smart IR: Automatically switches between color and black-and-white modes based on lighting conditions, enhancing visibility at night.
- IR Distance of Up to 131 Feet: Ensures reliable night vision performance, enabling clear monitoring in complete darkness.
- On-Screen Display Menu: User-friendly interface allows for easy setup and adjustment through Up the Coax control.
- IP66 Weather Rating: Designed to withstand harsh weather conditions, ensuring durability and reliability for outdoor use.
SecurityTronix ST-HDC2VFTD-MZ Detailed Specifications
| Camera Type | Turret Dome |
| Resolution | 2 Megapixels |
| Lens | 2.8mm - 12mm Motorized Vari-focal |
| IR Range | Up to 131 Feet |
| Technology | HD-TVI/Analog |
| Day/Night Functionality | True Day/Night |
| IR Technology | Smart IR |
| Weather Rating | IP66 |
| Power Supply | 12 VDC (not included, ST-PS12VDC2A suggested) |
SKU  | ST-HDC2VFTD-MZ |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Infrared, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant |
| Manufacturer | SecurityTronix |
Camera Signal  | Analog, HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 1/2.7" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/25(1/30) s to 1/50,000 s |
| Image Device | 1/2.7” Progressive Scan CMOS |
| Image Pixels-Effective | 1930(H) x 1088(V) |
| IR Distance | 40m/131ft |
| Minimum Scene Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR on |
| Operating Humidity | 90% or less (non-condensing) |
| Operating Temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| Dimensions (W x H) | 130.54 × 102.4 mm (5.1” × 4.0”) |
| OSD Menu | English/Chinese |
| Power Consumption | Max. 5W |
| Privacy Zone | On/Off, maximum 2 zones |
| S/N Ratio | More than 52dB |
| Video Output | 1 turbo HD output |
| Weatherproof | IP66 |
| Synchronization | Internal synchronization |
| Angle of View | 105.2° - 32.8° |
| Automatic White Balance | Auto/User/Push/8000K/6000K/4200K/3000K |
| Flickerless | On/Off |
| Motion Detection | On/Off, maximum 4 zones |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
