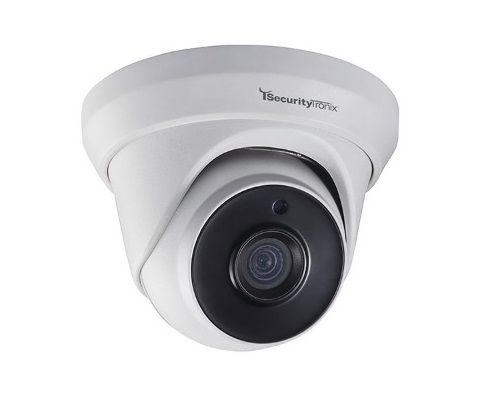

SecurityTronix ST-HDC2FTD 2 Megapixel HD-TVI Outdoor IR Dome Camera with 3.6mm Lens
SKU
ST-HDC2FTD
Model No
ST-HDC2FTD
$66.56
Product Highlights
- 2MP High Resolution
- Incorporates HD-TVI to provide HD 1080p video over coaxial cable
- 3.6mm Fixed lens
- True Day/Night
- Smart IR
Speak to an expert
The ST-HDC2FTD from SecurityTronix is a 2 megapixel HD-TVI outdoor IR dome camera designed for clear and reliable surveillance. With features like a 3.6mm lens, impressive infrared night vision, and robust weather resistance, this camera ensures safety and security in various conditions, making it ideal for residential or commercial environments.
SecurityTronix ST-HDC2FTD Camera Features
- 2MP High Resolution: Produces sharp and clear images, providing reliable video surveillance for identification and monitoring.
- HD-TVI Technology: Stream HD 1080p video over coaxial cable, ensuring high-quality video transmission without significant lag.
- 3.6mm Fixed Lens: Offers a suitable field of view for various surveillance applications, allowing for effective monitoring of larger areas.
- True Day/Night Functionality: Enables clear footage during both day and night, adjusting settings automatically based on lighting conditions.
- Smart IR: Prevents overexposure in night vision mode by adjusting infrared intensity, ensuring even illumination of the scene.
- IR Distance up to 131 Feet: Provides reliable night vision capabilities, allowing clear monitoring even in complete darkness.
- On Screen Display Menu: Easy-to-use menu system for quick adjustments and configurations, enhancing user control and flexibility.
- IP66 Weather Rating: Ensures durability against harsh weather conditions, making it suitable for outdoor installation.
SecurityTronix ST-HDC2FTD Detailed Specifications
| Camera Resolution | 2 Megapixels |
| Video Output | HD-TVI |
| Lens Type | 3.6mm Fixed Lens |
| IR Range | Up to 131 Feet |
| Low Light Sensitivity | 0.1 Lux/F1.2 |
| Weather Resistance | IP66 |
| Power Supply | 12VDC (not included) |
SKU  | ST-HDC2FTD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Analog, HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 2 MP CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/25s to 1/50,000s |
| Image Device | 2MP CMOS Image Sensor |
| Image Pixels-Effective | 1928(H) x 1088(V) |
| IR Distance | 40m/131ft |
| Minimum Scene Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR on |
| Operating Humidity | 90% or less (non-condensing) |
| Operating Temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| Dimensions (W x H) | 110 × 93.2mm (4.33” × 3.67”) |
| Power Consumption | Max. 5W |
| S/N Ratio | More than 62dB |
| Weatherproof | IP66 |
| Synchronization | Internal synchronization |
| Backlight Compensation | Supported |
| Automatic White Balance | Auto/Manual |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
