SecurityTronix ST-HDC2FD 2 Megapixel HD-TVI Outdoor IR Dome Camera with 3.6mm Lens
SKU
ST-HDC2FD
Model No
ST-HDC2FD
$66.56
Product Highlights
- 2MP High Resolution
- Incorporates HD-TVI to provide HD 1080p video over coaxial cable
- 3.6mm Fixed lens
- True Day/Night
- Smart IR
Speak to an expert

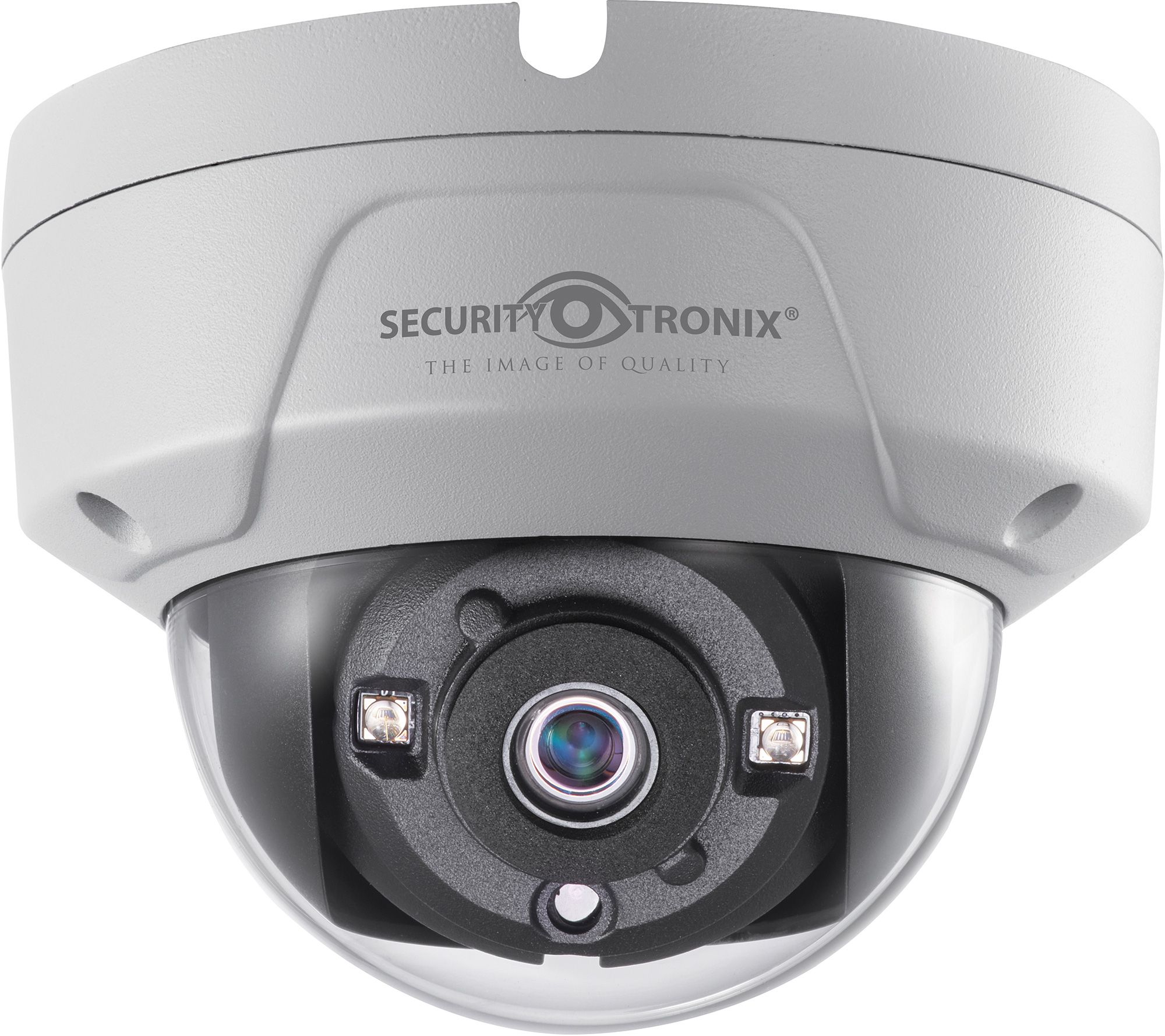

The ST-HDC2FD from SecurityTronix is a 2 megapixel HD-TVI outdoor IR dome camera with a 3.6mm lens, designed to deliver high-quality surveillance with a maximum resolution of 1080p. Equipped with advanced features such as a 65-foot IR range, an IP66 weather rating for outdoor durability, and IK10 vandal-proof protection, this camera ensures reliable performance day and night, making it an ideal choice for secure monitoring in any environment.
SecurityTronix ST-HDC2FD Camera Features
- 2MP High Resolution: Provides clear, detailed images for precise identification and monitoring.
- HD-TVI Technology: Incorporates HD-TVI to provide HD 1080p video over coaxial cable, ensuring high-quality transmission without signal loss.
- 3.6mm Fixed Lens: Offers a balanced field of view for versatile surveillance applications.
- True Day/Night Functionality: Switches automatically between day color and night monochrome imaging for optimal performance 24/7.
- Smart IR: Adjusts the intensity of the infrared lighting to prevent overexposure and ensure clear night vision.
- IR Distance up to 65 Feet: Extends nighttime visibility to effectively monitor large areas even in complete darkness.
- On Screen Display Menu: Facilitates easy setup and configuration via Up the Coax capability.
- IP66 Weather Rating: Ensures the camera is resistant to dust and water, suitable for outdoor installation.
- IK10 Vandal Rating: Provides assurance against physical impacts, enhancing overall security.
SecurityTronix ST-HDC2FD Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | 2 Megapixel HD-TVI Dome Camera |
| Maximum Resolution | 1080p |
| Lens Type | 3.6mm Fixed Lens |
| IR Range | Up to 65 Feet |
| Weather Rating | IP66 (Dust and Water Resistant) |
| Vandal Rating | IK10 (Impact Resistant) |
| IR Technology | Smart IR |
| Configuration Interface | On Screen Display Menu (Up the Coax) |
| Power Supply | 12VDC (Power Supply Not Included) |
SKU  | ST-HDC2FD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Analog, HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 2 MP CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/25s to 1/50,000s |
| Image Device | 2MP CMOS Image Sensor |
| Image Pixels-Effective | 1928(H) x 1088(V) |
| IR Distance | 20m/65ft |
| Minimum Scene Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR on |
| Operating Humidity | 90% or less (non-condensing) |
| Operating Temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| Dimensions (W x H) | 111 × 82.5 mm (4.3” × 3.25”) |
| OSD Menu | English |
| Power Consumption | Max. 5W |
| S/N Ratio | More than 62dB |
| Weatherproof | IP66 |
| Synchronization | Internal synchronization |
| Automatic White Balance | Auto/Manual |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
