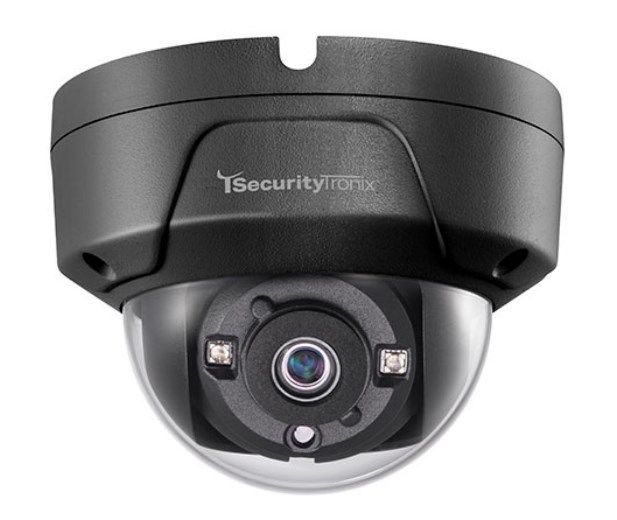

SecurityTronix ST-HDC2FD-BLK 2MP HD-TVI Outdoor IR Dome Camera with 3.6mm Lens, Black Housing
SKU
ST-HDC2FD-BLK
Model No
ST-HDC2FD-BLK
$66.56
Product Highlights
- 2MP High Resolution
- Incorporates HD-TVI to provide HD 1080p video over coaxial cable
- 3.6mm Fixed lens
- True Day/Night
- Smart IR
Speak to an expert
The ST-HDC2FD-BLK from SecurityTronix is a 2 megapixel HD-TVI outdoor IR dome camera with a 3.6mm lens designed for robust surveillance needs. Equipped with advanced features like ONVIF compatibility, a 1/3 inch CMOS sensor, and an impressive IR range of up to 98 feet, this camera delivers high-quality images even in low light. Its IP67 weather rating ensures durability against the elements, making it suitable for outdoor installations.
SecurityTronix ST-HDC2FD-BLK Camera Features
- 2MP High Resolution: Provides detailed and clear video footage, ensuring critical details are captured and easily identifiable.
- HD-TVI Technology: Offers HD 1080p video transmission over coaxial cable, making it compatible with existing security infrastructure without the need for costly upgrades.
- 3.6mm Fixed Lens: Delivers a wide field of view suitable for monitoring expansive areas, maximizing surveillance capabilities.
- True Day/Night Functionality: Switches automatically between color and black-and-white modes, allowing for 24/7 surveillance regardless of lighting conditions.
- Smart IR Technology: Adjusts the brightness of night vision to prevent overexposure, ensuring clear images in dark environments.
- IR Distance up to 65 Feet: Enables effective monitoring in low-light scenarios, improving security during nighttime.
- On Screen Display Menu: Simplifies camera configuration and adjustments, allowing for quick setup and personalized settings.
- IP67 Weather Rating: Guarantees protection against dust and water, making the camera suitable for outdoor use.
- IK10 Vandal Rating: Provides resistance against physical impact, ensuring durability and reliability in high-risk areas.
SecurityTronix ST-HDC2FD-BLK Detailed Specifications
| Product Model | SecurityTronix ST-HDC2FD-BLK |
| Resolution | 2 Megapixels |
| Lens Type | 3.6mm Fixed Lens |
| Sensor Type | 1/3 inch CMOS |
| IR Range | Up to 98 feet |
| Weather Rating | IP67 |
| Vandal Rating | IK10 |
| Power Supply | DC12V & PoE (Power supply not included) |
| Storage Support | SD Card up to 128GB (SD card not included) |
SKU  | ST-HDC2FD-BLK |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Analog, HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 2 MP CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/25s to 1/50,000s |
| Image Device | 2MP CMOS Image Sensor |
| Image Pixels-Effective | 1928(H) x 1088(V) |
| IR Distance | 20m/65ft |
| Minimum Scene Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR on |
| Operating Humidity | 90% or less (non-condensing) |
| Operating Temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| Dimensions (W x H) | 111 × 82.5 mm (4.3” × 3.25”) |
| OSD Menu | English |
| Power Consumption | Max. 5W |
| S/N Ratio | More than 62dB |
| Weatherproof | IP66 |
| Synchronization | Internal synchronization |
| Automatic White Balance | Auto/Manual |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
