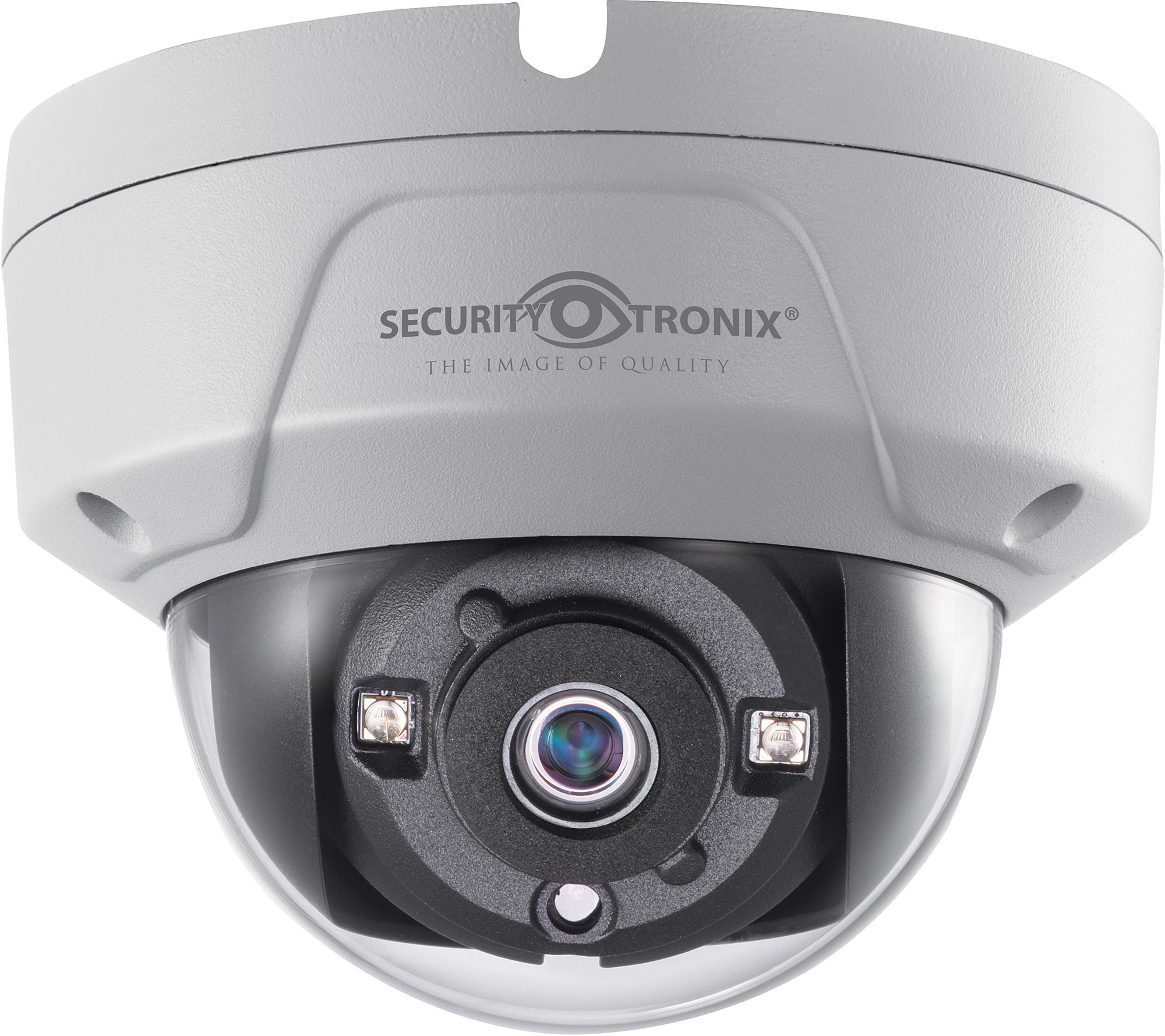

SecurityTronix ST-HDC2FD-2-8 2 Megapixel HD-TVI Outdoor IR Dome Camera with 2.8mm Lens
SKU
ST-HDC2FD-2-8
Model No
ST-HDC2FD-2-8
$66.56
Product Highlights
- 2MP High Resolution
- Incorporates HD-TVI to provide HD 1080p video over coaxial cable
- 2.8mm Fixed lens
- True Day/Night
- Smart IR
Speak to an expert
The ST-HDC2FD-2-8 from SecurityTronix is a 2 megapixel HD-TVI outdoor IR dome camera with a 2.8mm lens, designed to deliver high-quality surveillance with features such as 1080p maximum resolution, exceptional night vision capabilities, and robust weather and vandal-proof ratings. This camera offers easy installation and high-performance monitoring, making it an ideal choice for both residential and commercial applications.
SecurityTronix ST-HDC2FD-2-8 Camera Features
- 2MP High Resolution: Delivers clear and detailed imagery, ensuring that every scene is captured with precision.
- HD-TVI Technology: Provides high-definition 1080p video over coaxial cable, allowing for seamless integration with existing systems.
- 2.8mm Fixed Lens: Offers a wide field of view, ideal for monitoring large areas.
- True Day/Night Functionality: Automatically switches between day and night modes, ensuring clear images in varying light conditions.
- Smart IR: Adjusts the intensity of the infrared LEDs to prevent overexposure and provide balanced lighting at night.
- IR Distance up to 65 Feet: Ensures visibility in low-light conditions, making it effective for night surveillance.
- On Screen Display Menu: Facilitates easy setup and configuration via coaxial connection.
- IP66 Weather Rating: Protects against dust and water, making it suitable for outdoor use in various weather conditions.
- IK10 Vandal Rating: Provides resistance against physical damage, ensuring durability and reliability in high-risk areas.
Detailed Camera Specifications for SecurityTronix ST-HDC2FD-2-8
| Feature | Details |
|---|---|
| Image Sensor | 2 Megapixel |
| Maximum Resolution | 1080p |
| Lens Type | 2.8mm Fixed Lens |
| IR Range | 65 Feet |
| Weather Resistance | IP66 |
| Vandal Resistance | IK10 |
| Power Supply | 12VDC (not included) |
| Color | White |
SKU  | ST-HDC2FD-2-8 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Analog, HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 2 MP CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/25s to 1/50,000s |
| Image Device | 2MP CMOS Image Sensor |
| Image Pixels-Effective | 1928(H) x 1088(V) |
| IR Distance | 20m/65ft |
| Minimum Scene Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR on |
| Operating Humidity | 90% or less (non-condensing) |
| Operating Temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| Dimensions (W x H) | 111 × 82.5 mm (4.3” × 3.25”) |
| OSD Menu | English |
| Power Consumption | Max. 5W |
| S/N Ratio | More than 62dB |
| Weatherproof | IP66 |
| Synchronization | Internal synchronization |
| Automatic White Balance | Auto/Manual |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
