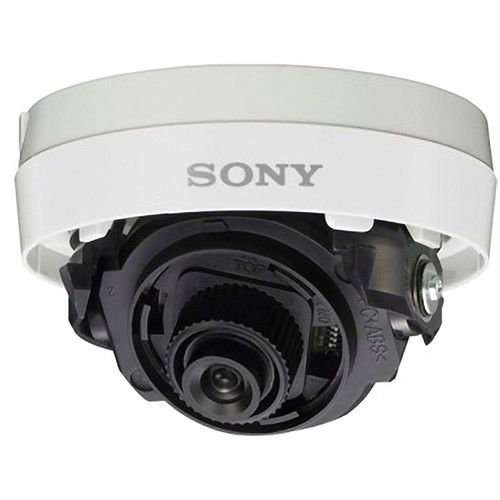

Sony SSC-N12A 540 TVL Indoor Minidome CCTV Camera with 6mm Lens
SKU
SSC-N12A
Model No
SSC-N12A
$137.48
Product Highlights
- Horizontal resolution 540 TV lines
- High sensitivity 0.3 lx (F2.0, 50 IRE, Color)
- Fixed focal lens (6.0 mm)
- Compact design
- 2D noise reduction employed
Speak to an expert
The Sony SSC-N12A is a high-performance 540 TVL Indoor Minidome CCTV camera designed for optimal surveillance. With features like a 6mm lens, day/night functionality, and advanced noise reduction, it ensures superior image clarity even in varying light conditions. Its low power consumption and flexible camera angle adjustments make it an efficient choice for security applications.
Sony SSC-N12A Camera Functions
- High Quality Imaging: Equipped with a 1/3" CCD sensor and 540 TVL resolution, ensuring clear and detailed images for effective surveillance.
- Electrical Day/Night Function: Automatically switches between day and night modes, allowing for 24/7 monitoring and adaptability to changing light levels.
- 2D Noise Reduction: Reduces visual noise, enhancing image quality in low light conditions, providing clearer footage.
- Low Power Consumption: Operating at just 0.9 W max, this camera is energy-efficient, reducing long-term operating costs.
- User-Friendly Design: The three-hinge structure simplifies camera angle adjustments, making installation and positioning straightforward.
Detailed Camera Specifications for Sony SSC-N12A
| Feature | Details |
|---|---|
| Image Sensor | 1/3” Super HAD CCD II |
| Resolution | 540 TVL |
| Lens Type | CS Mount, 6mm Focal Length |
| Illumination Sensitivity | 0.3 Lux (Color) |
| Day/Night Function | Electrical Mechanism |
| Noise Reduction | 2D Noise Reduction |
| BLC | iBLC for backlight compensation |
| Power Consumption | 0.9 W (Max) |
| Operating Temperature | Negative 10 to 50 degrees Celsius |
| Dimensions | Approx. 100mm in diameter |
SKU  | SSC-N12A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction |
| Manufacturer | Sony |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 6mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto/Flickerless/Manual |
| Image Device | 1/3-type Super HAD CCDII |
| Image Pixels-Effective | 380,000 pixels (768 x 494) |
| Minimum Scene Illumination | Color: 0.3 lx, B/W: 0.2 lx (F2.0, 50IRE); Color: 0.18 lx, B/W: 0.07 lx (F2.0, 30IRE) |
| Operating Humidity | 20 % to 80 % |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Dimensions (W x H) | 3 3/8 inches x 2 1/2 inches |
| Power Consumption | Max. 0.9 W |
| S/N Ratio | More than 55 dB (AGC Off) |
| Video Output | VBS:1.0Vp-p |
| Zoom Ratio | Fixed |
| Synchronization | Internal lock |
| Digital Noise Reduction | Yes (2D NR) |
| Backlight Compensation | Yes (iBLC) |
| Automatic White Balance | ATW (2000K to 10000K) |
| Auto Gain Control | Auto (on/off) |
| Back Light Compensation | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Auto Gain Control | Yes |
