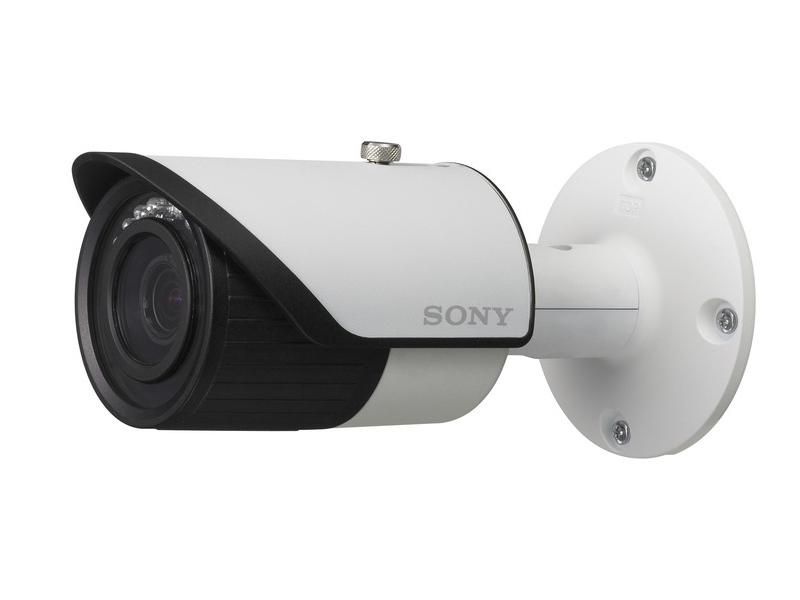

Sony SSC-CB574R 700TVL Outdoor IR Bullet CCTV Camera, 9-22mm
SKU
SSC-CB574R
Model No
SSC-CB574R
$330.00
Product Highlights
- Horizontal resolution of 700 TV lines (sharp mode)
- High sensitivity
- Built-in IR illuminators
- Optical Day/Night function
- IP66-rated waterproof and dust-tight feature
Speak to an expert
The SSC-CB574R from Sony is an outdoor analog fixed camera with a 9-22mm vari-focal lens, designed to deliver outstanding image quality and performance in various lighting conditions, thanks to its high resolution and built-in infrared capabilities.
Sony SSC-CB574R Camera Features
- Horizontal Resolution: 700 TV lines (sharp mode) - Delivers clear, sharp images for enhanced surveillance visibility.
- High Sensitivity: Ensures effective performance in low light situations, allowing for reliable surveillance anytime.
- Built-in IR Illuminators: Captures objects in complete darkness, up to 98 feet (30 m) away, ensuring security monitoring around the clock.
- Optical Day/Night Function: Automatically switches between day and night modes for optimal imaging under varying light conditions.
- IP66 Rating: Fully waterproof and dust-tight, making it suitable for outdoor installation in any weather.
- AC 24 V/DC 12 V Operation: Offers flexible power options for easy integration into existing setups.
- 2D Noise Reduction: Reduces image noise for clearer video quality, especially in low light environments.
- Automatic Tracing White Balance (ATW): Adapts to changing lighting conditions for natural color representation.
- iBLC: Intelligent Back Light Compensation enhances visibility of subjects in high-contrast lighting scenes.
Sony SSC-CB574R Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | SSC-CB574R |
| Type | Outdoor Analog Fixed Camera |
| Lens | 9-22mm Vari-focal Lens |
| Resolution | 700 TV Lines |
| IR Range | Up to 98 feet (30 m) |
| Power Supply | AC 24 V/DC 12 V (±10 %) |
| Waterproof Rating | IP66 |
| Day/Night Functionality | Optical Day/Night |
| Noise Reduction | 2D Noise Reduction |
| White Balance | Automatic Tracing White Balance (ATW) |
SKU  | SSC-CB574R |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Weather Resistant |
| Manufacturer | Sony |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 9-22mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Image Device | 1/3-type EXview HAD CCD II |
| Image Pixels-Effective | 480,000 pixels (976 x 494) |
| Minimum Scene Illumination | Color: 0.09 lx, B/W: 0 lx (F1.2, 50 IRE), Color: 0.05 lx, B/W: 0 lx (F1.2, 30 IRE) |
| Operating Humidity | 20% to 80% |
| Operating Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Dimensions (W x H) | 3 1/8 inches x 4 3/8 inches |
| Power Consumption | Max. 5.5 W |
| S/N Ratio | More than 55 dB (AGC Off) |
| Signal System | NTSC standard |
| Video Output | VBS: 1.0 Vp-p |
| Weatherproof | IP66 |
| Zoom Ratio | Optical 3.7x |
| Synchronization | Internal/AC line lock selectable |
| Digital Noise Reduction | Yes |
| Backlight Compensation | Yes (iBLC, On/Off) |
| Automatic White Balance | ATW (2000K to 10000K), ATW-PRO (2500K to 6000K) |
| Auto Gain Control | Auto (On/Off) |
| IR LEDs | 50 IR |
| Back Light Compensation | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Intelligent Infrared | Yes |
| Auto Gain Control | Yes |
