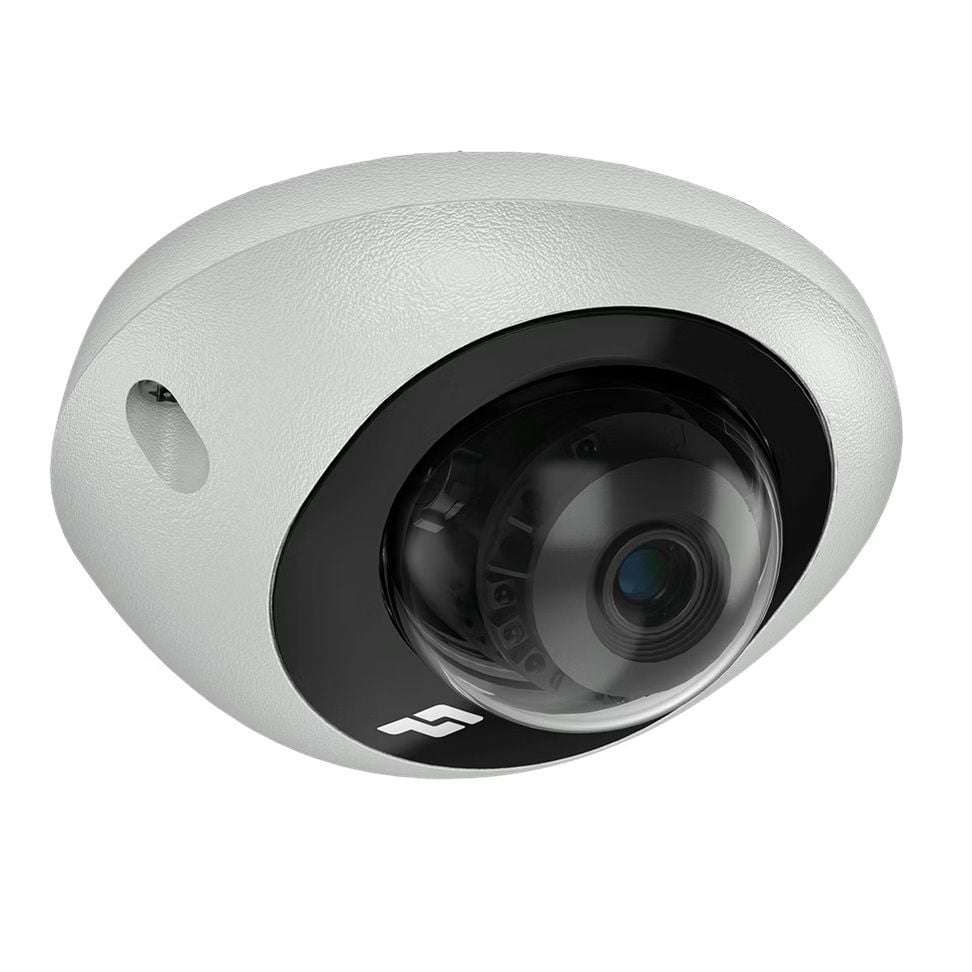

Pelco SRXV2-2F3-EWD-IR 2 Megapixel Network IP Outdoor IR Sarix Value 2 Wedge Camera with 2.8mm Lens
SKU
SRXV2-2F3-EWD-IR
Model No
SRXV2-2F3-EWD-IR
$274.45
Product Highlights
- Record and stream live-video
- See day to night with built-in IR
- Detect motion, intrusion or tampering
- Can be installed on moving trains
Speak to an expert
The Pelco SRXV2-2F3-EWD-IR 2 Megapixel Network IP Outdoor IR Sarix Value 2 Wedge Camera is designed to deliver high-quality video surveillance with its advanced features and reliable performance. Offering exceptional night vision, intelligent motion detection, and versatile installation options, this camera is the ideal choice for comprehensive security monitoring.
Pelco SRXV2-2F3-EWD-IR Camera Key Features
- High Resolution: 2 Megapixel image quality ensures clear, detailed video surveillance for accurate monitoring.
- Day/Night Capability: Built-in IR functionality allows for effective visibility in low-light conditions, ensuring 24/7 surveillance.
- Intelligent Detection: Advanced motion detection can alert users to intrusion or tampering, enhancing security measures.
- Versatile Installation: Can be installed on moving trains, making it adaptable for various surveillance environments.
Pelco SRXV2-2F3-EWD-IR Detailed Camera Specifications
| Feature | Details |
|---|---|
| Image Sensor | 2 Megapixel |
| Lens | 2.8mm |
| IR Distance | Up to 30 meters |
| Network Connectivity | IP Enabled |
| Power Supply | 12V DC |
SKU  | SRXV2-2F3-EWD-IR |
|---|---|
| Features | Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 111.5 mm (4.39 in) x 111 mm (4.37 in) x 57.6 mm (2.27 in) |
| Electronic Shutter | Automatic, Manual (1/2 to 1/32000 sec), Shutter-Priority: (1/2 to 1/10000 sec) |
| Image Device | 1/2.8” CMOS |
| Minimum Scene Illumination | Color mode: 0.03 lux Black and White mode: 0.01 lux |
| Operating Humidity | 90% non-condensing |
| Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Power Consumption | <12.95W |
| Privacy Zone | Up to 8 zones |
| Protocols | IPv6, IPv4, HTTP, HTTPS, DNS, NTP, RTSP, RTCP, RTP, RTMP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP, uPnP, DDNS, FTP, SFTP, SSH,TLS/TTLS, SNMP, QOS |
| S/N Ratio | > 50 dB |
| Weatherproof | IP66, IP67, IK10 |
| Angle of View | Horizontal Angle of View Based on Aspect Ratio (16:9) 105° , Vertical Angle of View Based on Aspect Ratio (16:9) 56° |
| Motion Detection Tracking | Pixel motion: Selectable sensitivity and threshold |
| Back Light Compensation | Adjustable |
| Automatic White Balance | Automatic, Manual |
| IR Distance | 20m/66ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
