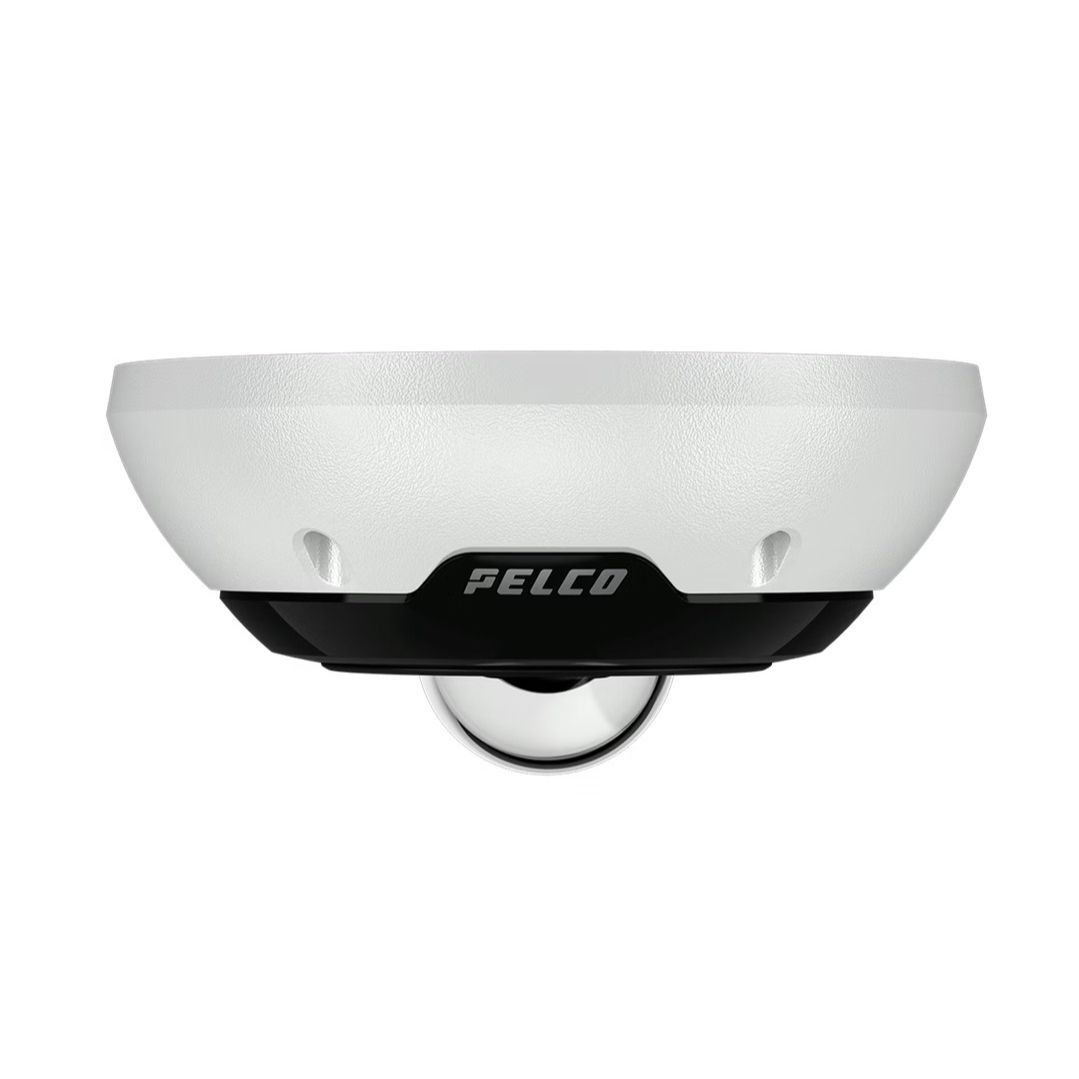

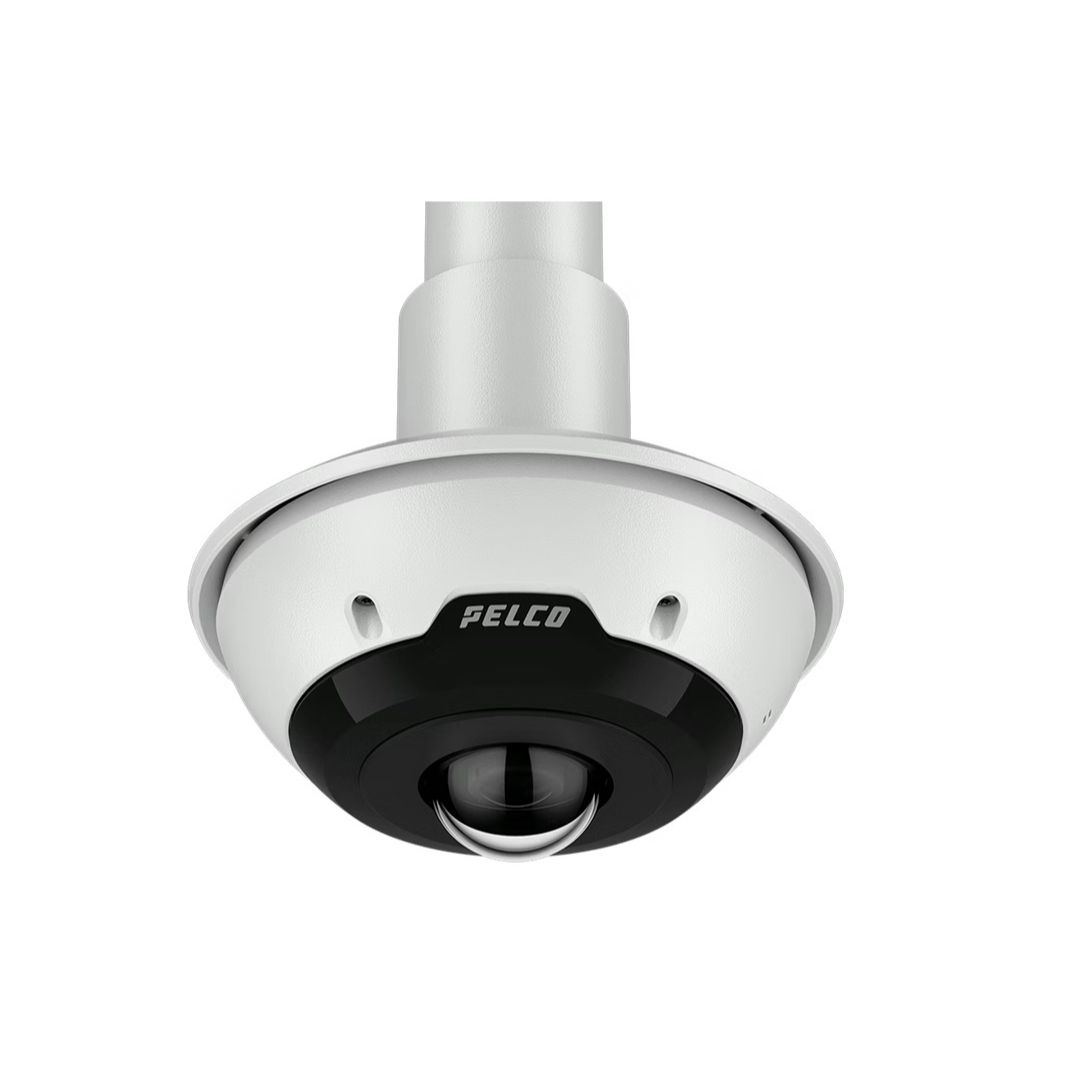

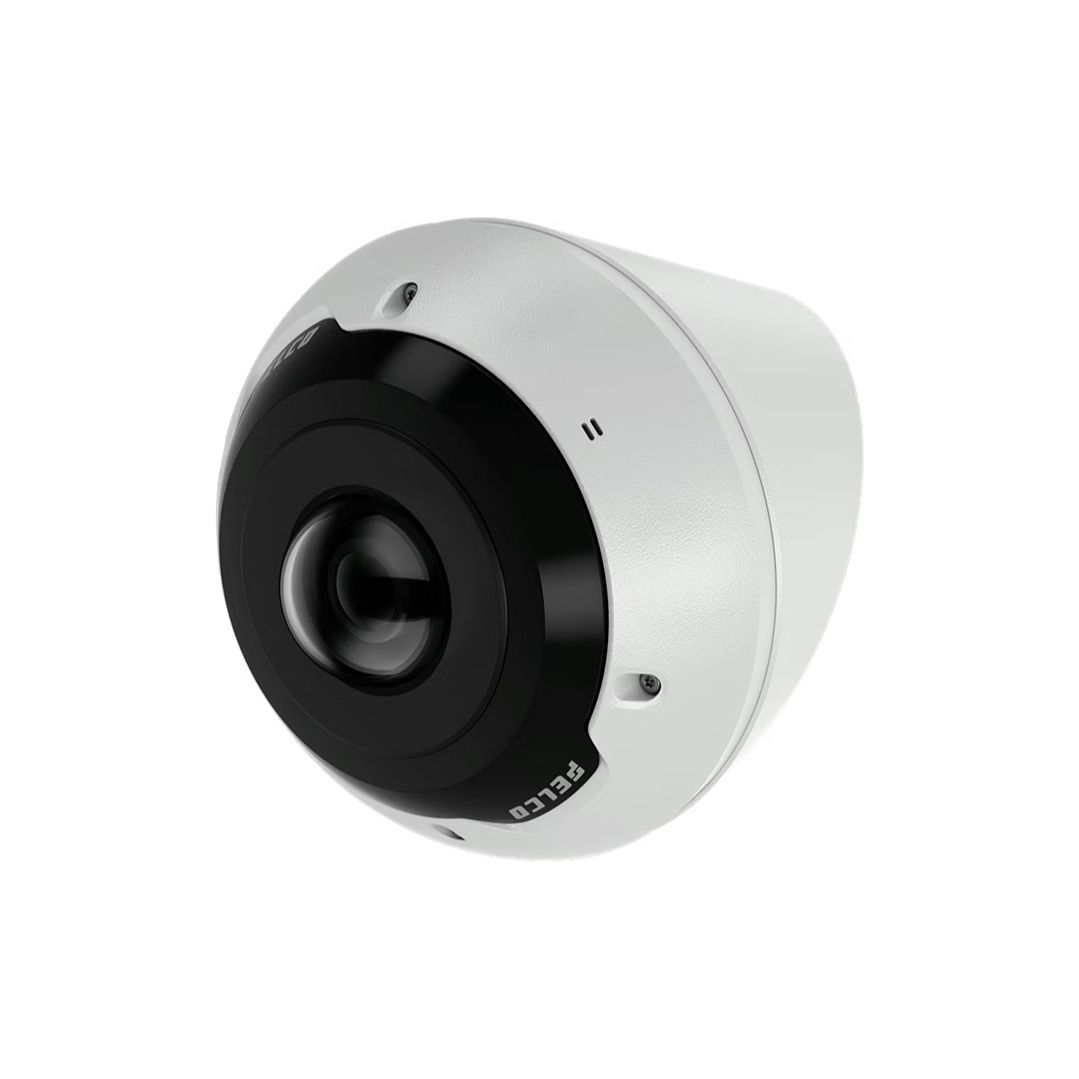

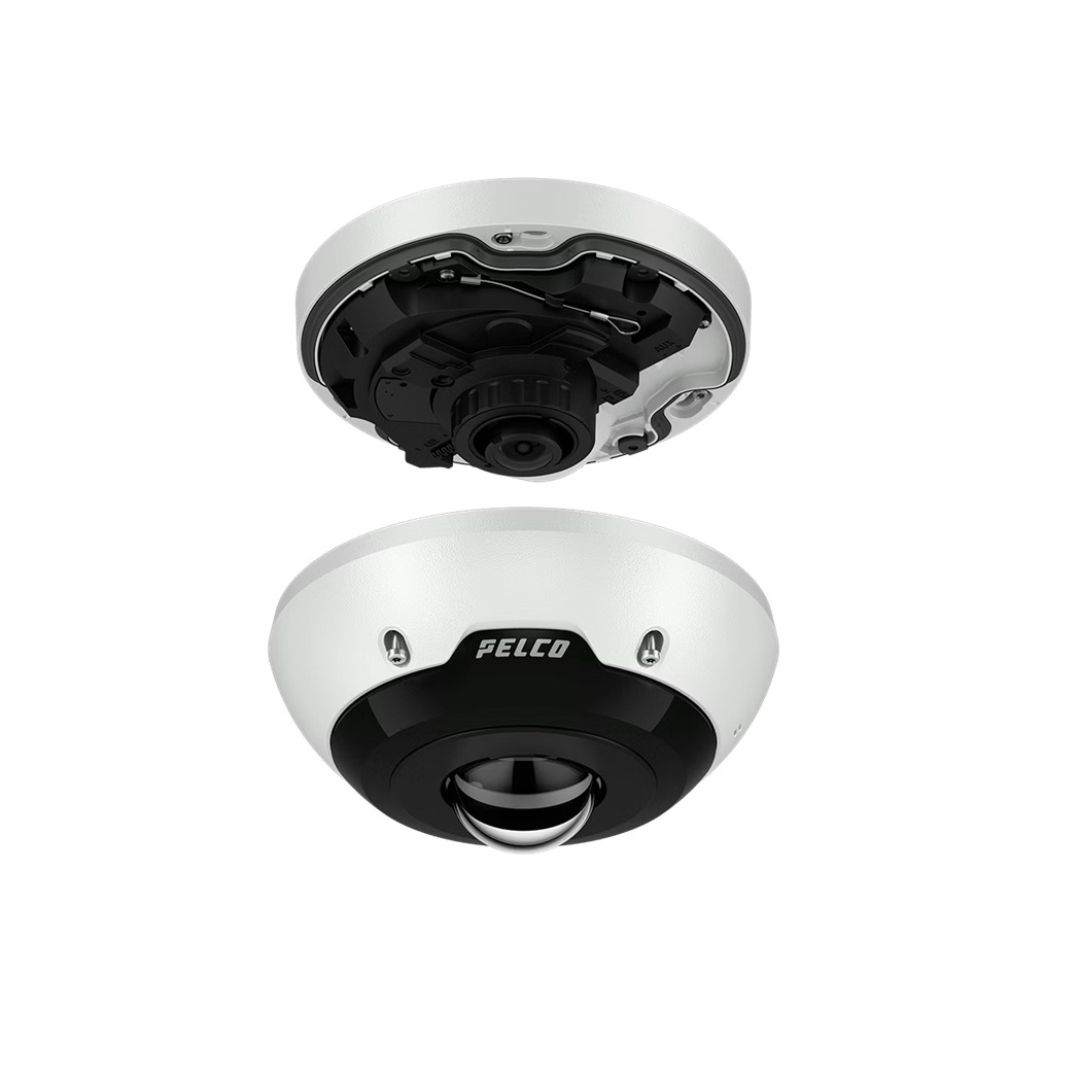

Pelco SRXF3-8180-ES 8 Megapixel Network IP Outdoor Sarix Fisheye 3 Camera with 1.74mm Lens
SKU
SRXF3-8180-ES
Model No
SRXF3-8180-ES
$577.97
Product Highlights
- Clearly see objects day or night
- Follow objects without interruptions
- Identify loud and unusual sounds
- Integrate with your ONVIF-conformant VMS
Speak to an expert
The Pelco SRXF3-8180-ES 8 Megapixel Network IP Outdoor Sarix Fisheye 3 Camera is engineered to deliver superior surveillance performance. With its advanced 8-megapixel resolution and 1.74mm lens, this camera ensures clear visibility in both day and night conditions, making it an ideal choice for outdoor security. Its cutting-edge technology allows for seamless integration with ONVIF-conformant VMS systems, providing users with reliable and efficient video management capabilities.
Pelco SRXF3-8180-ES Camera Features
- High Resolution: 8-megapixel clarity ensures detailed images for precise monitoring and analysis.
- Night Vision: Enhanced low-light performance allows for clear visibility after dark, improving security around the clock.
- Continuous Tracking: Smooth tracking capabilities allow users to follow objects without interruptions, enhancing situational awareness.
- Sound Detection: Built-in capabilities to identify loud and unusual sounds, alerting users to potential security breaches.
- ONVIF Compliance: Easily integrates with ONVIF-conformant VMS for flexible video management and compatibility with various systems.
Detailed Camera Specifications
| Camera Type | 8 Megapixel Network IP |
| Lens Type | 1.74mm Fisheye |
| Resolution | 8 Megapixels |
| Night Vision Capability | Yes |
| Sound Detection | Yes |
| VMS Integration | ONVIF-conformant |
| Outdoor Use | Yes |
SKU  | SRXF3-8180-ES |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.74mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, PoE |
| Dimensions (W x H) | 153.5 mm x 153.5 mm x 71.3 mm; 6" x 6" x 2.81" |
| Electronic Shutter | Automatic, Manual (1/6 to 1/8000 sec) |
| Image Device | 1/1.8” progressive scan CMOS |
| Minimum Scene Illumination | With IR 0 lux , Without IR 0.1 lux in monochrome, 0.2 lux in colour mode |
| Operating Humidity | 0 - 100% non-condensing |
| Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Power Consumption | With IR: 26 W , Without IR: 12 W |
| Privacy Zone | Up to 64 zones |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, DSCP, FTP |
| Weatherproof | IP66, IP67, IK10 |
| Angle of View | Horizontal Angle of View (HFOV): 180° 188°, 360° 182° , Vertical Angle of View (VFOV): 180° 104°, 360° 182° |
| Motion Detection Tracking | Pixel motion and classified object detection |
| Back Light Compensation | Adjustable |
| Automatic White Balance | Automatic, Manual |
| IR Distance | 17m/56ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
