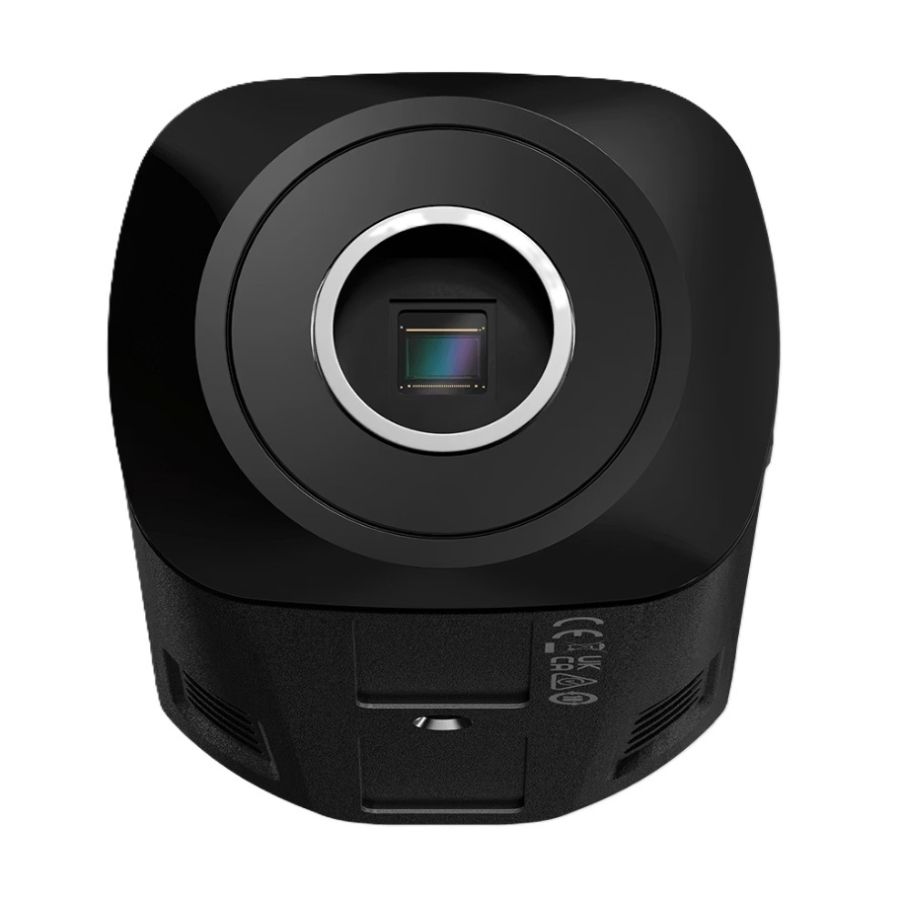

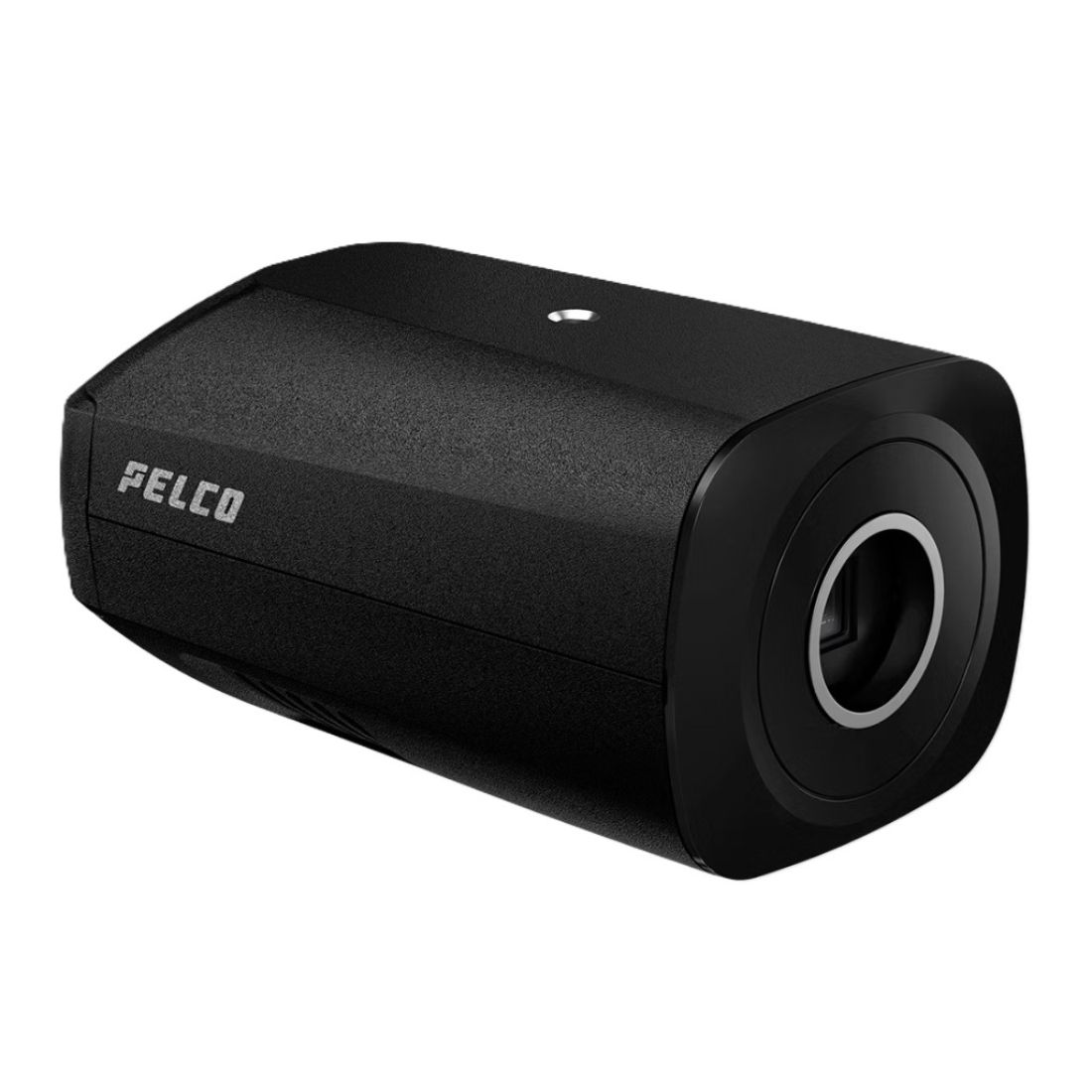

Pelco SRXE4P-6-IBX-1-B 6 Megapixel Network IP Sarix Enhanced 4P Box Camera
SKU
SRXE4P-6-IBX-1-B
Model No
SRXE4P-6-IBX-1-B
$887.40
Product Highlights
- Classify and identify people and vehicles
- Reliable through network failovers
- Capture up to 60 fps to see video clearly
- Lens sold separately for customization
- Protect against cyber attacks
Speak to an expert
The Pelco SRXE4P-6-IBX-1-B is a state-of-the-art 6 Megapixel Network IP Sarix Enhanced 4P Box Camera designed for superior surveillance and security. With advanced imaging capabilities and robust network features, this camera ensures optimal performance in identifying people and vehicles, while providing secure video management that protects against cyber threats.
Pelco SRXE4P-6-IBX-1-B Camera Highlights
- High Resolution: With 6 megapixels, this camera delivers crisp and detailed video, making it easier to classify and identify individuals and vehicles in real-time.
- Network Reliability: Designed for dependable operation during network failovers, ensuring continuous surveillance even in challenging conditions.
- High Frame Rate: Captures video at up to 60 frames per second to provide smooth and clear visuals, essential for observing fast-moving subjects.
- Customizable Lens: Offers flexibility by allowing users to choose and customize the lens according to specific surveillance needs (lens sold separately).
- Cybersecurity Features: Enhanced protection against potential cyber attacks keeps critical data safe, providing peace of mind for users.
Pelco SRXE4P-6-IBX-1-B Detailed Specifications
| Specification | Details |
|---|---|
| Camera Type | Network IP Camera |
| Image Sensor | 6 Megapixel |
| Video Resolution | Up to 3072 x 2048 |
| Frame Rate | Up to 60 fps |
| Lens | Interchangeable (sold separately) |
| Cybersecurity | Advanced cybersecurity measures implemented |
| Connectivity | Standard networking with failover capabilities |
| Dimensions | Varies based on lens selection |
SKU  | SRXE4P-6-IBX-1-B |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 6 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Voltage | 12-24vDC, PoE |
| Dimensions (W x H) | 122 mm x 75 mm x 63 mm; 4.8” x 3.0” x 2.5” |
| Electronic Shutter | Automatic, Manual (1/7.5 to 1/15000 sec) |
| Image Device | 1/1.8” progressive scan CMOS |
| Minimum Scene Illumination | 0.02 lux in color mode, 0.006 lux in monochrome mode at f/1.3 |
| Operating Humidity | 0 - 95% non-condensing |
| Operating Temperature | -10 °C to +65 °C (14 °F to 149 °F) |
| Power Consumption | 13 W max |
| Privacy Zone | Up to 64 zones |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, ARP, HSTS, FTP |
| S/N Ratio | > 50 dB |
| Motion Detection Tracking | Pixel motion: Selectable sensitivity and threshold. Classified object detection |
| Automatic White Balance | Automatic, Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
