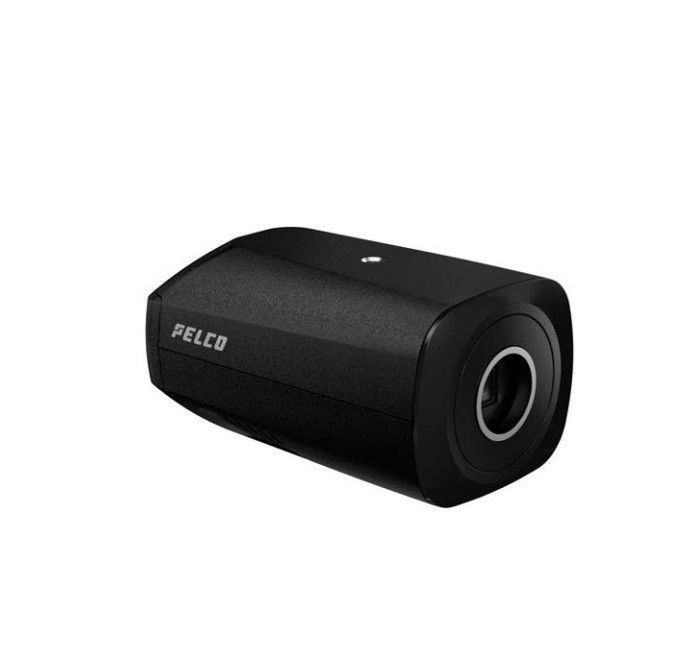

Pelco SRXE4P-4-IBX-1 4 Megapixel Netwirk Indoor Box Camera
SKU
SRXE4P-4-IBX-1
Model No
SRXE4P-4-IBX-1
$599.95
Product Highlights
- Leverage Pelco Smart Analytics, powered by Motorola Solutions, to detect human and vehicle events Secured From the Inside Out
- Sarix Enhanced 4 and 4P Series camera ensures high data-security with onboard TPM, Secure Boot, and FIPs-140-2 level 3 compliance. Manufactured in North America, NDAA and TAAcompliant, it's an ideal choice for security-focused businesses and organizations
- Capture crucial details and provide valuable evidence with clearer, sharper footage
- Enhance your camera management with cloudbased AI intelligence, seamlessly integrating with your existing system
- Save on maintenance and operational costs with the camera's durability
Speak to an expert
The Pelco SRXE4P-4-IBX-1 4 Megapixel Network Indoor Box Camera offers cutting-edge surveillance features designed to elevate security measures. With Smart Analytics capabilities, robust data-security protocols, and advanced image clarity, this camera is an essential tool for any security-focused organization. Its seamless integration and durability make it a reliable choice for comprehensive monitoring.
Features
Pelco SRXE4P-4-IBX-1 Camera Features
- Protect More Things at Once: Leverage Pelco Smart Analytics to simultaneously detect human and vehicle events, enhancing threat detection.
- Secured From the Inside Out: High data-security protocols, including onboard TPM and Secure Boot, ensure the integrity of your surveillance system.
- Enhanced Clarity and Coverage: Capture clearer footage at up to 60 frames per second, ideal for monitoring fast-moving objects.
- Elevate Enabled: Cloud-based AI intelligence automates camera checks, boosting efficiency and reducing maintenance costs.
- Resilient in Every Condition: Built to withstand tough environments with IP66, 67, 68 ratings and wider operating temperature ranges.
- Increased Compatibility with Pelco Connect: Seamlessly integrates with various third-party VMS systems, unlocking full analytics potential for enhanced functionality.
Detailed Camera Specifications
| Product Model | Pelco SRXE4P-4-IBX-1 |
| Resolution | 4 Megapixel |
| Frame Rate | Up to 60 frames per second |
| Data Security | Onboard TPM, Secure Boot, FIPs-140-2 Level 3 |
| Weather Resistance | IP66/67/68 and IK10/11 ratings |
| Analytics Type | Pelco Smart Analytics |
| Operating Temperature Range | Wider range for extreme conditions |
| Integration | ONVIF S, G, T, and M compliant |
SKU  | SRXE4P-4-IBX-1 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 4 Megapixel |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 122 mm x 75 mm x 63 mm; 4.8” x 3.0” x 2.5” |
| Electronic Shutter | Automatic, Manual (1/7.5 to 1/15000 sec) |
| Image Device | 1/1.8” progressive scan CMOS |
| Operating Humidity | 0 - 95% non-condensing |
| Operating Temperature | -10 °C to +65 °C (14 °F to 149 °F) |
| Power Consumption | 13 W max |
| Privacy Zone | Up to 64 zones |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, ARP, HSTS |
| S/N Ratio | > 50 dB |
| Weatherproof | Indoor |
| Automatic White Balance | Automatic, Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
