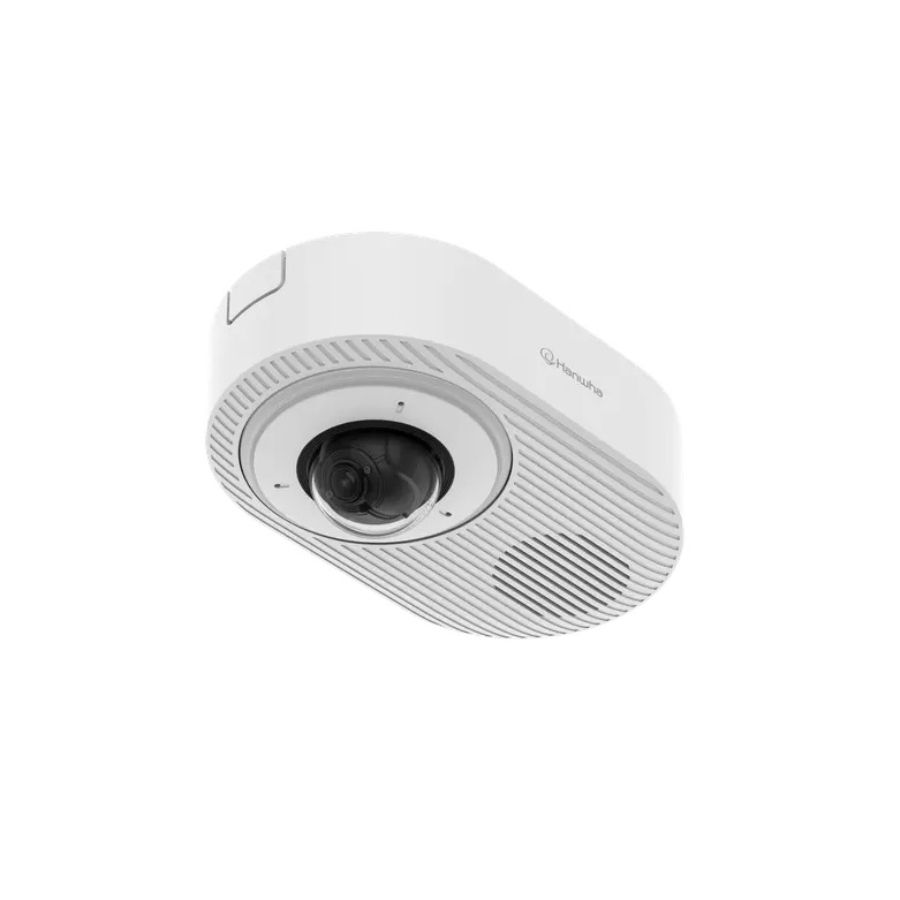

Hanwha Vision SPS-A8016 5 Megapixel Network IP Indoor All-In-One Camera with 3mm Lens
- Built-in speaker (Peak Sound Pressure Level 97.5dB(PoE+))
- Full-duplex two-way audio support (Echo Cancellation & Noise Reduction)
- Built-in LED ring indicator for clear status alerts
- Object Classification & AI-based Analytics
- AI-based Sound Classification (Extreme Decibel, Scream, Glass Break, Aggression, Tire Screech, Vehicle Horn)
The WN9 is an indoor all-in-one 5MP network camera delivering high-quality video at up to 30 fps. It features a 3.0 mm fixed lens with a 100°–74° field of view, H.265/H.264/MJPEG video compression, Day & Night functionality with ICR, and 120 dB extremeWDR for clear images in challenging lighting conditions. A hard-coated dome bubble provides added durability, while the USB-C port simplifies installation.
The camera incorporates AI-powered video analytics, including WiseStream and WiseNR II, dynamic privacy masking, motion and object detection, line crossing, area detection, slip and fall detection, sound classification, and BestShot. It can classify people, faces, vehicles, and license plates, with additional attributes such as clothing color, gender, age, masks, glasses, vehicle type, and vehicle color.
For advanced business intelligence, the camera supports people, vehicle, and crowd counting, queue management, and heatmap analytics. It also provides defocus, tampering, fog, audio, and shock detection, along with sound classification for events such as glass breaking, screaming, extreme decibel levels, and aggression.
The WN9 features three digital microphones with selectable one-way/two-way audio, full-duplex communication with echo cancellation and noise reduction, and a high-output speaker rated up to 97.5 dB SPL at 1 m. An RGB LED ring supports multiple colors and operating modes for visual status and event indication.
Features
- Built-in speaker (Peak Sound Pressure Level 97.5dB(PoE+))
- Full-duplex two-way audio support (Echo Cancellation & Noise Reduction)
- Built-in LED ring indicator for clear status alerts
- Object Classification & AI-based Analytics
- AI-based Sound Classification (Extreme Decibel, Scream, Glass Break, Aggression, Tire Screech, Vehicle Horn)
- Dynamic Privacy Masking
SKU  | SPS-A8016 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3mm |
| Mount Type | Ceiling |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant |
| Voltage | PoE+, PoE |
| Automatic Gain Control (AGC) | Off, Max gain, Manual |
| Dimensions (W x H) | 215.1(W)x135.1(D)x52.8(H)mm(8.47"x5.32"x2.08") |
| Electronic Shutter | 2~1/30,000sec |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color(1/30sec, 30IRE) 0.06 BW(1/30sec, 30IRE) 0.006 |
| Operating Humidity | 0~90% RH(non-condensing) |
| Operating Temperature | -20°C~+55°C(-4°F~+131°F) |
| Power Consumption | PoE+ : Max. 20W, typical 6.2W(excluding Speaker and LED) PoE : Max. 9.0W,typical 6.2W(excluding Speaker and LED) |
| Weatherproof | IK08 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Angle of View | Horizontal 100°, Vertical 74°, Diagonal 130° |
| Motion Detection Tracking | Quantity 8ea, Shape 8point Polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
SPS-A8016-Specsheet SPS-A8016-User-Manual
