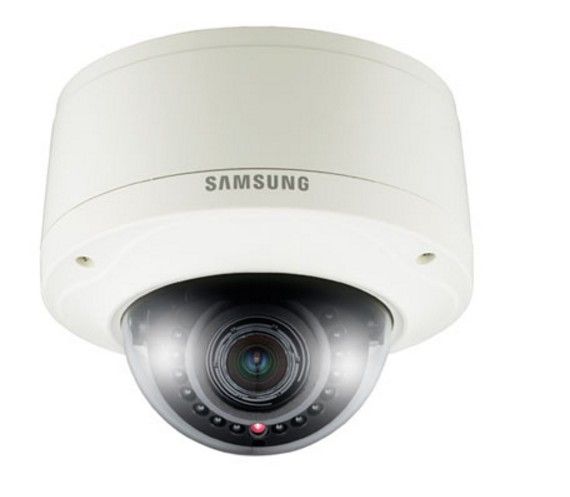

Hanwha Vision SNV-5080RN 1.3 Megapixel HD Network IR Dome Camera, 3.8.5mm Lens

Name: Hanwha Vision SNV-5080RN 1.3 Megapixel HD Network IR Dome Camera, 3.8.5mm Lens
Brand: Hanwha Vision
SKU: SNV-5080RN
Price: 246.00 USD
Availability: InStock

SKU

SNV-5080RN

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision SNV-5080RN 1.3 Megapixel HD Network IR Dome Camera, 3.8.5mm Lens SNV-5080RN by Hanwha Vision

Model No

SNV-5080RN

$246.00

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

Max. 1.3M (1280 x 1024) resolution
16 : 9 HD (720p) resolution support
3 ~ 8.5mm (2.8x) motorized varifocal lens
H.264, MPEG-4, MJPEG multiple codec
Multiple streaming

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

1.3 Megapixel HD Network IR Dome Camera, 3.8.5mm Lens

The SNV-5080RN from Hanwha Vision is a 1.3 Megapixel HD Network IR Dome Camera equipped with a versatile 3.8-8.5mm lens, providing exceptional image quality and adaptability for various surveillance needs. Its advanced features include multiple codec support, intelligent video analytics, and robust build quality, making it an ideal choice for both indoor and outdoor applications.

Camera Functions

Audio

Auto Gain Control

Automatic White Balance

BLC

Day/Night Vision

3D DNR

Mirror

Motion Detection

Privacy Masking

ONVIF

Vandal Resistant

Weather Resistant

Camera Features


Max. 1.3M (1280 x 1024) resolution	Multiple streaming
16: 9 HD (720p) resolution support	Intelligent video analytics
3 ~ 8.5mm (2.8x) motorized varifocal lens	PoE, SD memory, IP66, IK10, IR LED (15ea)
H.264, MPEG-4, MJPEG multiple codec

Specifications

SKU	SNV-5080RN
Features	Wide Dynamic Range
Manufacturer	Hanwha Vision
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	0~60 Feet
Resolution	2 Megapixel
Lens Type	Varifocal
Lens Size	3-8.5mm
Mount Type	Wall
Compression Method	M-JPEG
Durability	Weather Resistant
Voltage	PoE
Automatic Gain Control (AGC)	Off / Low / Medium / High / Manual
Dimensions (W x H)	Ø160.0 x 134.5mm (Ø6.3" x 5.3")
Electronic Shutter	Auto / A.FLK / Manual (1/30 ~ 30,000sec)
Image Device	1/3" 1.3M PS CMOS
Image Pixels Total	1,384(H) x 1,076(V)
Image Pixels-Effective	1,329(H) x 1,049(V)
IR LEDs	15ea
Minimum Scene Illumination	Color : 0.3Lux (F1.2, 50IRE), 0.005Lux (Sens-up 60x) B/W : 0Lux (F1.2, 50IRE, IR LED on)
Operating Humidity	Less than 90% RH (Heater on)
Operating Temperature	24V AC : -40°C ~ +55°C (-40°F ~ +131°F)
OSD Menu	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,Croatian, Hungarian, Greek, Finnish, Norwegian
Power Consumption	Max. 9W or 650mA (Heater off), Max. 13W or 800mA (Heater on)* Heater works at AC input only
Privacy Zone	Off / On (1ea 4 point polygonal + 12ea rectangular zones)
Protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoEFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
S/N Ratio	50dB
Scanning System	Progressive
Video Output	CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Weatherproof	IP66
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Mirror	Off / On
Angle of View	H : 91.0°(Wide) ~ 32.1°(Tele) / V : 72.2°(Wide) ~ 25.7°(Tele)
Rotation Angle	0° ~ 355°
Motion Detection Tracking	Off / On (4 programmable zones)
Back Light Compensation	Off / BLC / HLC
Automatic White Balance	ATW / AWC / Manual / Indoor / Outdoor
IR Distance	15m/49.21ft
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Motion Detection Tracking	Yes
On Screen Display Menu	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
ONVIF	Yes
