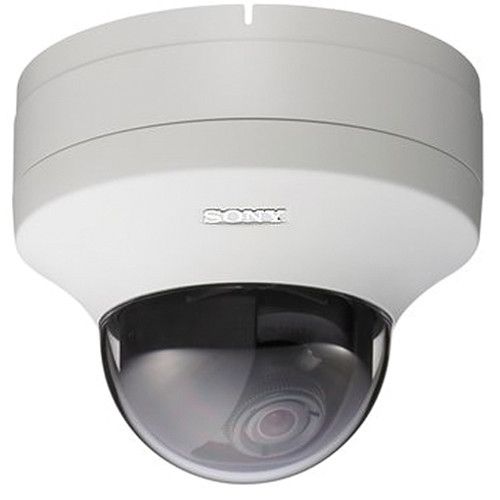

Sony SNC-DS10 400 TVL Network Minidome Camera Dual Stream with 2.8-10mm Lens

SKU
SNC-DS10
Model No
SNC-DS10
$19.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • ExwavePRO CCD
  • DEPA Platform
  • Intelligent Motion Detection
  • Voice Alert
  • Simultaneous JPEG-MPEG-4

The Sony SNC-DS10 is a state-of-the-art 400 TVL Network Mini-Dome Camera featuring innovative ExwavePRO technology. This camera combines remarkable low-light performance with versatile mounting options and intelligent analytics, making it an excellent choice for security applications. With its dual stream capability and high-quality lens, it ensures exceptional image clarity in various environments.

Sony SNC-DS10 Camera Features

  • Professional Imaging: With 400 TVL resolution and ExwavePRO technology, this camera delivers clear, detailed images both day and night, ideal for security surveillance.
  • Advanced Low-light Performance: Minimum illumination of 0.3 lx in color at F1.3 allows for effective monitoring even in dimly lit conditions.
  • Versatile Lens Options: The 2.8-10mm vari-focal lens provides flexibility in viewing angles, ensuring optimal coverage of the surveillance area.
  • Dual Stream Capability: Supports simultaneous JPEG and MPEG-4 streaming, which provides flexibility for different monitoring needs and storage options.
  • Intelligent Video Analytics: The DEPA platform offers advanced motion detection and other smart features, enhancing security monitoring capabilities.
  • Privacy Masking: Allows sections of the image to be hidden from view, meeting privacy compliance requirements in sensitive areas.

Detaied Specifications for Sony SNC-DS10

TypeNetwork Mini-Dome Camera
Resolution400 TVL
Lens2.8-10mm Vari-focal Lens
Imaging Sensor1/4-type Progressive Scan CCD
Minimum Illumination0.3 lx (Color at F1.3)
Compression FormatsJPEG, MPEG-4
Power Options24 V AC, 12 V DC, PoE
AudioBi-directional Audio
AnalyticsIntelligent Motion Detection, DEPA Platform
Mounting OptionsWall or Ceiling Mountable
SKU  SNC-DS10
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Motion Detection Tracking, Privacy Masking
Manufacturer  Sony
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    400 TVL
Lens Type    Varifocal
Lens Size    2.8-10mm
Mount Type  Ceiling, Wall
Compression Method    MPEG-4, JPEG
Voltage  12vDC, 24vAC, PoE
Automatic Gain Control (AGC)    On/Off (0 dB to +36 dB)
Dimensions (W x H)  5.5 x 4.6" (140 x 118mm)
Electronic Shutter    1 to 1/10,000 sec
Image Device    1/4" Color Progressive Scan CCD with ExwavePRO Technolog
Minimum Scene Illumination  0.3 lux (50IRE, F1.3,AGC 36dB)
Operating Temperature    32 - 122°F (0 ~ +50°C)
Privacy Zone    7.5W max
Protocols  TCP/IP, HTTP, ARP, ICMP, FTP, SMTP, DHCP, SNMP, DNS, NTP, RTP/RTCP, UDP
S/N Ratio  >50dB
Angle of View    Horizontal Viewing Angle: 73-20°
Automatic White Balance    ATW, ATW Pro
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Digital ZoomYes
