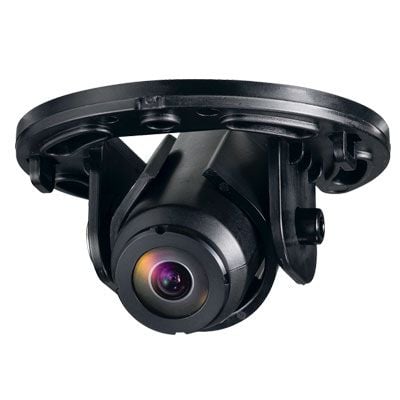

Hanwha Vision SNB-B-6025B 2MP Network Covert Camera, 1.5 Meter Cable, SBU-100 ATM Bracket Mount
SKU
SNB-B-6025B
Model No
SNB-B-6025B
$403.02
Product Highlights
- Max. 2megapixel (1920 x 1080) resolution
- H.264, MJPEG dual codec, Multiple streaming
- WDR (120dB), Defog
- micro SD/SDHC/SDXC memory slot, Multi-crop streaming
- Extremely discreet design
Speak to an expert
2MP Network Covert Camera, 1.5 Meter Cable, SBU-100 ATM Bracket Mount
- The Hanwha Vision SNB-B-6025B 2MP Network Covert Camera offers a perfect blend of performance and stealth, making it an ideal solution for discreet surveillance in sensitive areas. With its innovative WiseNet III technology, this camera delivers high-definition video quality and advanced features that set it apart in the security market. Its compact design allows for versatile installation in tight spaces, such as ATMs and bank tellers, while providing essential functionalities like two-way audio and intelligent video analytics. The included 1.5-meter cable and SBU-100 ATM bracket mount enhance its usability for covert applications.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
WDR
Camera Features
| Max. 2megapixel (1920 x 1080) resolution | Motion detection, Audio Detection, Face Detection with Metadata, Tampering, Virtual line, Enter/Exit, (Dis) Appear |
| H.264, MJPEG dual codec, Multiple streaming | micro SD/SDHC/SDXC memory slot, Multi-crop streaming |
| WDR (120dB) , Defog | Extremely discreet design |
Additional Hanwha Vision Products
SKU  | SNB-B-6025B |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Camera header: Ø24.0 x 50.0mm (Ø0.94" x 1.97"), Main unit: 131.1 x 28.0 x 86.0 (5.16" x 1.1" x 3.39") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/2.8" 2.38M CMOS |
| Image Pixels Total | 1,952 (H) x 1,116 (V) |
| Image Pixels-Effective | 1,944 (H) x 1,104 (V) |
| Minimum Scene Illumination | Color: 0.3Lux (1/30sec, F2.5, 50IRE) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Power Consumption | PoE: Max. 7.5W, 12V DC: Max. 6.5W |
| Privacy Zone | Off / On (32 zones with 4 points of polygonal) |
| Protocols | TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Scanning System | Progressive |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation, DIP connector type |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Mirror | Off / On |
| Angle of View | H: 134.3° / V: 70.9° |
| On Screen Display Menu | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian |
| Motion Detection Tracking | Off / On (4ea 4 points polygonal zone) |
| Back Light Compensation | Off / BLC / WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
