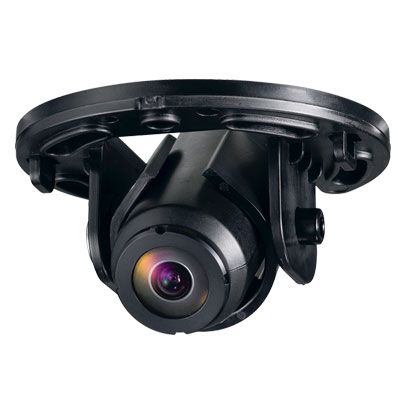

Hanwha Vision SNB-6011B 2 Megapixel Network Remote Head Camera with 2.4mm Lens
SKU
SNB-6011B
Model No
SNB-6011B
$365.04
Product Highlights
- Max. 2megapixel (1920 x 1080) resolution
- H.264, MJPEG dual codec, Multiple streaming
- WDR (120dB), Defog
- Motion detection, Audio Detection, Face Detection with Metadata, Tampering, Virtual line, Enter/Exit, (Dis)Appear
- Micro SD/SDHC/SDXC memory slot, Multi-crop streaming
Speak to an expert
2 Megapixel Network Remote Head Camera with 2.4mm Lens
- Introducing the Hanwha Vision SNB-6011B, a cutting-edge 2 Megapixel Network Remote Head Camera designed for versatile security applications. Equipped with advanced features like a 2.4mm pinhole lens and 120dB Wide Dynamic Range (WDR), this camera ensures exceptional image quality even in challenging lighting conditions. Its compact design allows for discreet installations in tight spaces, making it ideal for locations such as ATMs and bank tellers. With intelligent video analytics and dual codec support, the SNB-6011B offers both flexibility and reliability for all your surveillance needs.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
WDR
Camera Features
| Max. 2megapixel (1920 x 1080) resolution | Motion detection, Audio Detection, Face Detection with Metadata, Tampering, Virtual line, Enter/Exit, (Dis) Appear |
| H.264, MJPEG dual codec, Multiple streaming | Micro SD/SDHC/SDXC memory slot, Multi-crop streaming |
| WDR (120dB), Defog | Extremely discreet design |
Additional Hanwha Vision Products
SKU  | SNB-6011B |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Camera header: Ø24.0 x 50.0mm (Ø0.94" x 1.97"), Main unit: 131.1 x 28.0 x 86.0 (5.16" x 1.1" x 3.39") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/2.8" 2.38M CMOS |
| Image Pixels Total | 1,952 (H) x 1,116 (V) |
| Image Pixels-Effective | 1,944 (H) x 1,104 (V) |
| Minimum Scene Illumination | Color: 0.3Lux (1/30sec, F2.5, 50IRE) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Power Consumption | PoE: Max. 7.5W, 12VDC: Max. 6.5W |
| Privacy Zone | Off / On (32 zones with 4 points of polygonal) |
| Protocols | TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Scanning System | Progressive |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Mirror | Off / On |
| Angle of View | H: 134.3° / V: 70.9° |
| On Screen Display Menu | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian |
| Motion Detection Tracking | Off / On (4ea 4 points polygonal zone) |
| Back Light Compensation | Off / BLC / WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
