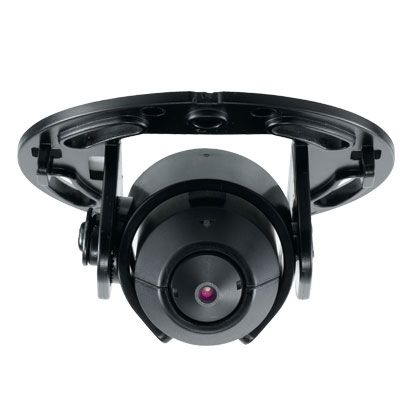

Hanwha Vision SNB-6010B 2 Megapixel Network Remote Head Camera with 4.6mm Lens
SKU
SNB-6010B
Model No
SNB-6010B
$475.00
Product Highlights
- Max. 2megapixel (1920 x 1080) resolution
- H.264, MJPEG dual codec, Multiple streaming
- WDR (120dB), Defog
- Motion detection, Audio Detection, Face Detection with Metadata, Tampering, Virtual line, Enter/Exit, (Dis)Appear
- Micro SD/SDHC/SDXC memory slot, Multi-crop streaming
Speak to an expert
2 Megapixel Network Remote Head Camera with 4.6mm Lens
- Introducing the Hanwha Vision SNB-6010B, a cutting-edge 2 Megapixel Network Remote Head Camera designed for high-performance surveillance. Equipped with advanced features such as a unique DSP chipset, 120dB WDR, and intelligent video analytics, this camera meets the demands of covert and confined installations. With a flexible design that includes a separated camera head and main unit, this solution provides both versatility and security for varied environments.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
WDR
Camera Features
| Max. 2megapixel (1920 x 1080) resolution | Motion detection, Audio Detection, Face Detection with Metadata, Tampering, Virtual line, Enter/Exit, (Dis) Appear |
| H.264, MJPEG dual codec, Multiple streaming | Micro SD/SDHC/SDXC memory slot, Multi-crop streaming |
| WDR (120dB), Defog | Extremely discreet design |
Additional Hanwha Vision Products
SKU  | SNB-6010B |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Camera header: Ø24.0 x 42.4mm (Ø0.94" x 1.67"), Main unit: 131.1 x 28.0 x 86.0 (5.16" x 1.1" x 3.39") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/2.8" 2.38M CMOS |
| Image Pixels Total | 1,952 (H) x 1,116 (V) |
| Image Pixels-Effective | 1,944 (H) x 1,104 (V) |
| Minimum Scene Illumination | Color: 0.3Lux (1/30sec, F2.5, 50IRE) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Power Consumption | PoE: Max. 7.5W, 12VDC: Max. 6.5W |
| Privacy Zone | Off / On (32 zones with 4 points of polygonal) |
| Protocols | TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Scanning System | Progressive |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Mirror | Off / On |
| Angle of View | H: 71° / V: 38° |
| On Screen Display Menu | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian |
| Motion Detection Tracking | Off / On (4ea 4 points polygonal zone) |
| Back Light Compensation | Off / BLC / WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
