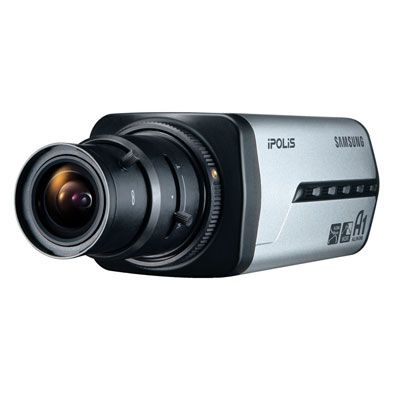

Hanwha Vision SNB-3000N 4CIF WDR Network Camera, No Lens
SKU
SNB-3000N
Model No
SNB-3000N
$97.21
Product Highlights
- Max. 30(25)fps at 4CIF resolution
- H.264, MPEG-4, MJPEG multiple codec
- PoE, SD memory, bi-directional audio support
Speak to an expert
4CIF WDR Network Camera, No Lens
- The Hanwha Vision SNB-3000N 4CIF WDR Network Camera is a versatile and powerful surveillance solution designed for high-quality video monitoring. With its ONVIF compliance, multiple codec support, and advanced features like Wide Dynamic Range (WDR) and True Day/Night operation, this camera ensures exceptional performance in various lighting conditions. Whether for residential or commercial use, the SNB-3000N delivers reliable video analytics and seamless integration into existing security systems.
Camera Functions
Audio
Auto Gain Control
Automatic White Balance
BLC
Day/Night Vision
3D DNR
Digital Zoom
Mirror
Motion Detection
ONVIF
Privacy Masking
WDR
Camera Features
| Max. 30 (25) fps at 4CIF resolution | PoE, SD memory, bi-directional audio support |
| H.264, MPEG-4, MJPEG multiple codec |
Additional Hanwha Vision Products
SKU  | SNB-3000N |
|---|---|
| Features | Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 704 X 480 |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Automatic Gain Control (AGC) | AGC (Low / Middle / High) |
| Dimensions (W x H) | 72.0 x 60.0 x 136.8mm (2.83" x 2.36" x 5.39") |
| Electronic Shutter | Off / Auto (1/100 ~ 1/10Ksec) |
| Image Device | 1/3" Super HAD PS CCD |
| Image Pixels Total | 811(H) x 508(V) |
| Image Pixels-Effective | 768(H) x 494(V) |
| Minimum Scene Illumination | Color : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x), B/W : 0.04Lux (F1.2, 50IRE), 0.0001Lux (Sens-up 512x) |
| Operating Humidity | 20% ~ 80% RH |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) |
| OSD Menu | English, French, German, Spanish, Italian, Chinese, Korean |
| Power Consumption | Max. 8W |
| Privacy Zone | Off / On (12 polygonal programmable zones, 4 point polygonal method) |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF |
| S/N Ratio | 52dB |
| Scanning System | Progressive (If WDR on, Interlaced scan) |
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite |
| Digital Noise Reduction | Motion adaptive 2D+3D noise filter (Off / Low / Middle / High / User) |
| Mirror | Off / On |
| Motion Detection Tracking | Off / On (4 programmable zones) |
| Back Light Compensation | Off / BLC / WDR |
| Automatic White Balance | ATW1 / ATW2 / AWC / 3200K / 5600K |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
