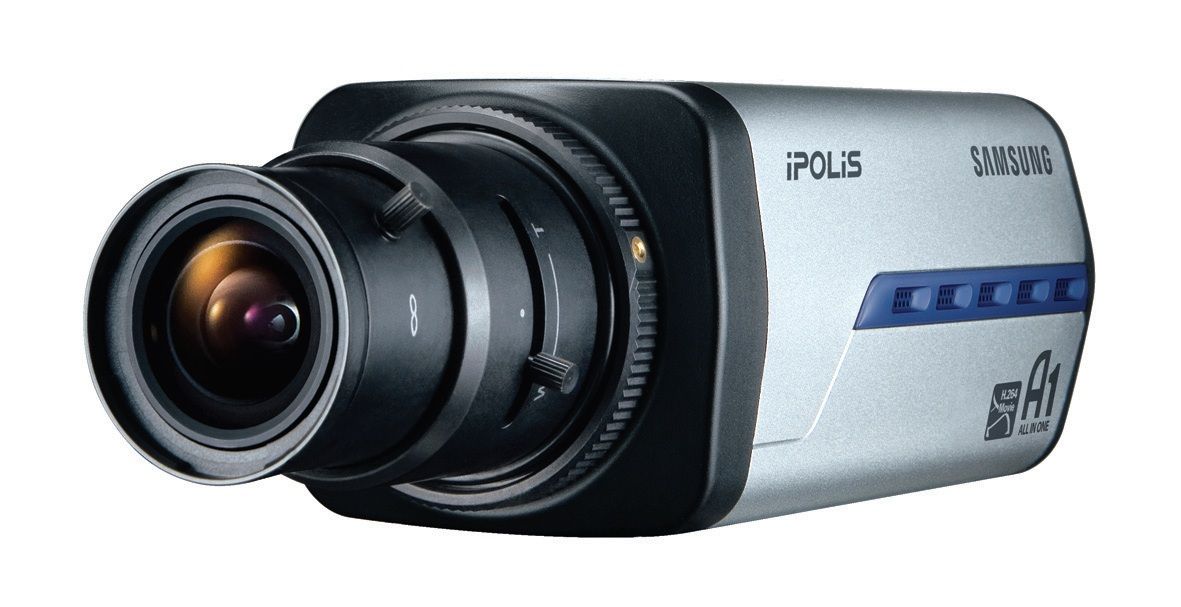

Hanwha Vision SNB-2000-N 0.3 Megapixel Network IP Indoor Box Camera, Lens Not Included
SKU
SNB-2000-N
Model No
SNB-2000-N
$56.37
Product Highlights
- Real-time 30(25)fps at high resolution (4CIF)
- H.264, MPEG-4 & MJPEG triple codec
- XDR (Extend Dynamic Range)
- Progressive scan
- Day & Night (Software)
Speak to an expert
The SNB-2000-N from Hanwha Vision is a 0.3 Megapixel network IP indoor box camera, lens not included. This camera offers advanced features designed for high-quality surveillance and ease of use, making it an excellent choice for various indoor applications.
Hanwha Vision SNB-2000-N + Camera Features
- Real-time 30(25)fps at high resolution (4CIF) ensures smooth video playback, allowing for better monitoring and analysis of live footage.
- H.264, MPEG-4 & MJPEG triple codec compatibility provides flexible video compression options, optimizing storage and bandwidth usage without sacrificing quality.
- XDR (Extend Dynamic Range) enhances image clarity in challenging lighting conditions, ensuring detailed visuals even in high-contrast environments.
- Progressive scan technology delivers superior image quality by reducing motion blur, making it ideal for capturing fast-moving objects.
- Day & Night (Software) functionality enables seamless transition between day and night modes, ensuring reliable performance around the clock.
- PoE (Power over Ethernet) simplifies installation by allowing the camera to receive power and data through a single cable, reducing clutter and setup time.
- HTTPS security login support protects your camera feed from unauthorized access, enhancing overall system security.
- IPv4/IPv6 support ensures compatibility with modern networking standards, future-proofing your surveillance system.
Hanwha Vision SNB-2000-N Detailed Camera Specifications
| Model | SNB-2000-N |
| Megapixels | 0.3 Megapixel |
| Video Resolution | 4CIF |
| Frame Rate | 30(25)fps |
| Video Codec | H.264, MPEG-4, MJPEG |
| Dynamic Range | XDR (Extend Dynamic Range) |
| Scanning Method | Progressive scan |
| Day & Night | Software enabled |
| Power | PoE (Power over Ethernet) |
| Security | HTTPS support |
| Networking | IPv4/IPv6 support |
SKU  | SNB-2000-N |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 0.3 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | AGC (Low / Middle / High) |
| Dimensions (W x H) | 2.83" x 2.36" x 5.39" |
| Image Device | 1/3" Super HAD PS CCD |
| Image Pixels Total | 811(H) x 508(V) |
| Image Pixels-Effective | 768(H) x 494(V) |
| Minimum Scene Illumination | Color: 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x); B/W: 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x) |
| Operating Humidity | 20% ~ 80% RH |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) |
| Power Consumption | Max. 7W |
| Privacy Zone | Off / On (12 polygonal programmable zones, 4 point polygonal method) |
| S/N Ratio | 52dB |
| Scanning System | 52dB |
| Digital Noise Reduction | Motion adaptive 2D+3D noise filter (Off / Low / Middle / High / User) |
| Mirror | Off / On |
| Motion Detection Tracking | Off / On (4 programmable zones) |
| Back Light Compensation | Off / BLC |
| Automatic White Balance | ATW1 / ATW2 / AWC / 3200K / 5600K |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Mirror | Yes |
| ONVIF | Yes |
