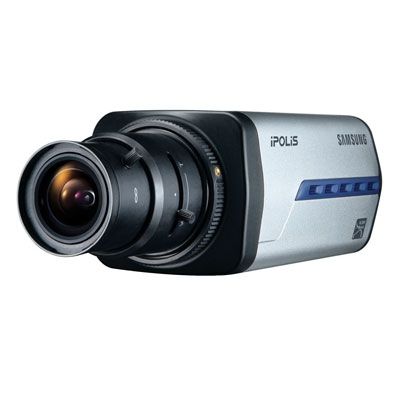

Hanwha Vision SNB-1000-N 0.3 Megapixel H.264 Network IP Box Camera
SKU
SNB-1000-N
Model No
SNB-1000-N
$35.63
Product Highlights
- Max. 30fps at VGA (640 x 480) resolution
- H.264 / MPEG4 / MJPEG multiple codec
- Multiple streaming simultaneously
Speak to an expert
The Hanwha Vision SNB-1000-N is a versatile network IP box camera designed for high-quality image capture and efficient streaming. With support for multiple video codecs and a maximum frame rate of 30fps at VGA resolution, this camera is perfect for various surveillance applications. Its multi-streaming capability allows for simultaneous image transmission, making it an ideal choice for flexible network setups.
Hanwha Vision SNB-1000-N + Camera Features
- Max. 30fps at VGA (640 x 480) resolution - Ensures smooth video playback and clear image quality for effective monitoring.
- H.264 / MPEG4 / MJPEG multiple codec - Offers flexibility in video compression, allowing compatibility with various network systems.
- Multiple streaming simultaneously - Enables efficient resource allocation and simultaneous monitoring across different platforms.
Detailed Camera Specifications
| Camera Model | Hanwha Vision SNB-1000-N |
| Image Sensor | 0.3 Megapixel |
| Video Compression | H.264 / MPEG4 / MJPEG |
| Max Resolution | 640 x 480 (VGA) |
| Frame Rate | Up to 30fps (NTSC) |
| Streaming Capability | Multiple streams simultaneously |
| Network Interface | Ethernet |
| Power Supply | 12V DC |
SKU  | SNB-1000-N |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 0.3 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | 2x, 4x, 8x, 16x, 32x |
| Dimensions (W x H) | 2.83" x 2.36" x 5.39" |
| Image Device | 1/4" PS CMOS |
| Image Pixels Total | 656(H) x 488(V) |
| Image Pixels-Effective | 640(H) x 480(V) |
| Minimum Scene Illumination | Color: 1.4Lux (F1.2, 50IRE), 0.18Lux (Sens-up 8x) |
| Operating Humidity | 20% ~ 80% RH |
| Operating Temperature | 0°C ~ +50°C (+32°F ~ +122°F) |
| OSD Menu | English, French, German, Spanish, Italian, Korean, Chinese, Russian, Japanese, Danish, Swedish, Portuguese |
| Power Consumption | Max. 2.5W |
| S/N Ratio | 50dB |
| Scanning System | Progressive |
| Mirror | Off / On |
| Automatic White Balance | Auto/Manual |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Mirror | Yes |
| ONVIF | Yes |
