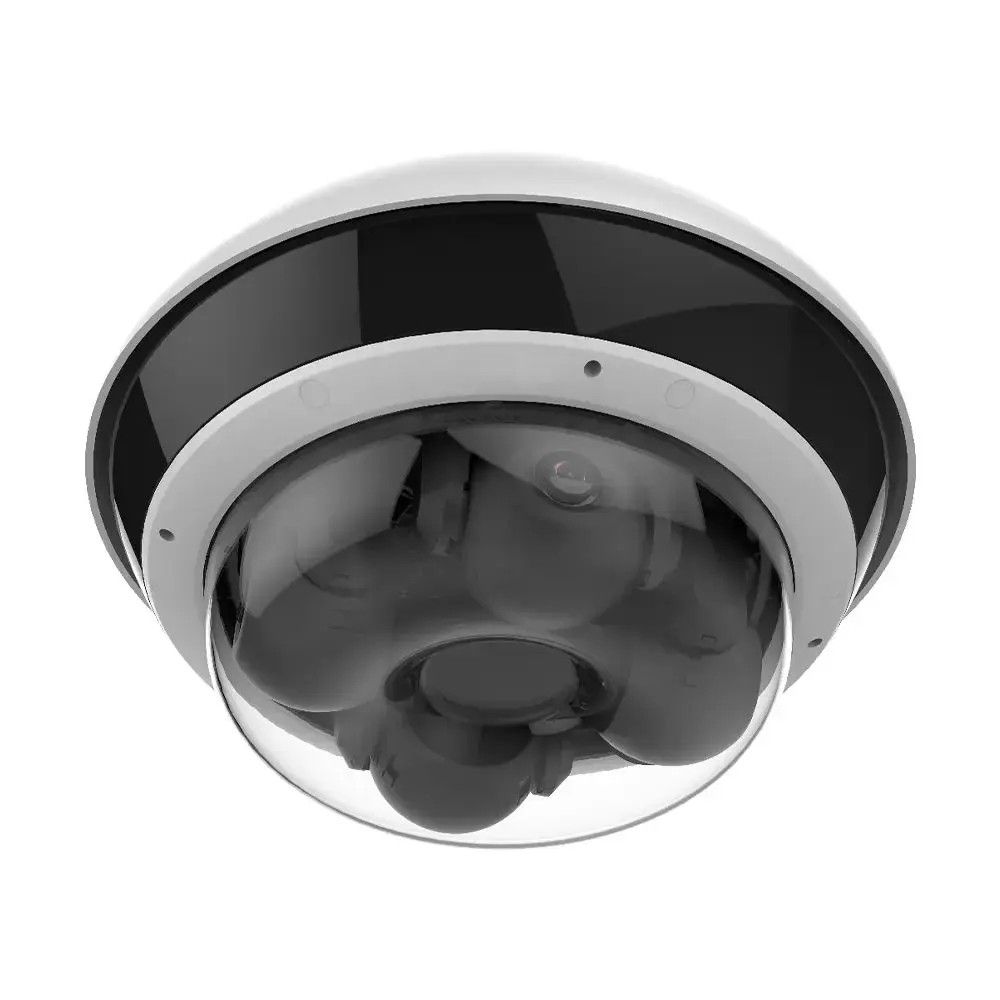

ENS SIPSP5-4-MZ-2 4 x 5 Megapixel Network IP IR Multi Sensor Dome Camera with 2.8-8mm & 2mm Lenses
SKU
SIPSP5-4-MZ-2
Model No
SIPSP5-4-MZ-2
$2,310.00
Product Highlights
- 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
- Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- Human and vehicle target classification based on deep learning for up to 4 channels
Speak to an expert
The ENS SIPSP5-4-MZ-2 is an advanced 4 x 5 Megapixel Network IP IR Multi Sensor Dome Camera designed to provide comprehensive surveillance solutions. With high-resolution capabilities, adjustable lenses, and robust environmental protection, this camera ensures superior performance in various settings, offering exceptional image clarity and expansive coverage.
ENS SIPSP5-4-MZ-2 Camera Features
- 4 Lenses: Four adjustable lenses allow for a complete 360° field of view, ensuring thorough coverage without blind spots.
- High Resolution: Each lens supports up to 5 MP, allowing for crystal clear images and detailed visuals on video walls.
- True WDR Technology: Features 120 dB true WDR technology, enabling clear imaging even in challenging backlight conditions.
- Durability: Designed to be water and dust resistant (IP67) and vandal proof (IK10), making it suitable for harsh environments.
- Intelligent Classification: Utilizes deep learning algorithms for human and vehicle classification across up to 4 channels, enhancing monitoring efficiency.
ENS SIPSP5-4-MZ-2 Detailed Specifications
| Specification | Details |
|---|---|
| Model | ENS SIPSP5-4-MZ-2 |
| Image Sensor | 4 x 5 Megapixel |
| Lens Type | 2.8-8mm & 2mm adjustable lenses |
| Field of View | Up to 360° |
| WDR | 120 dB true WDR |
| Protection Rating | IP67, IK10 |
| Classification Technology | Deep learning for human & vehicle detection |
SKU  | SIPSP5-4-MZ-2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ENS |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 20 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-8mm, 2mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø290 mm × 148 mm (Ø11.42" × 5.8") |
| Electronic Shutter | 1 s to 1/100,000 s |
| Image Device | Varifocal: 1/2.4" Progressive Scan CMOS; Fixed: 1/2.5" Progressive Scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, SSL/TLS |
| S/N Ratio | ≥ 52 dB |
| Weatherproof | IP67 & IK10 |
| Angle of View | Varifocal :2.8 to 8 mm, horizontal FOV 96.5° to 48.9°, vertical FOV 69.9° to 36.5°, diagonal FOV 129° to 61.3° , Fixed:2mm, horizontal FOV 71.68°, vertical FOV 71.68°, diagonal FOV 99.16° |
| Rotation Angle | -90° to 90° |
| IR Distance | 30m/98.43ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
