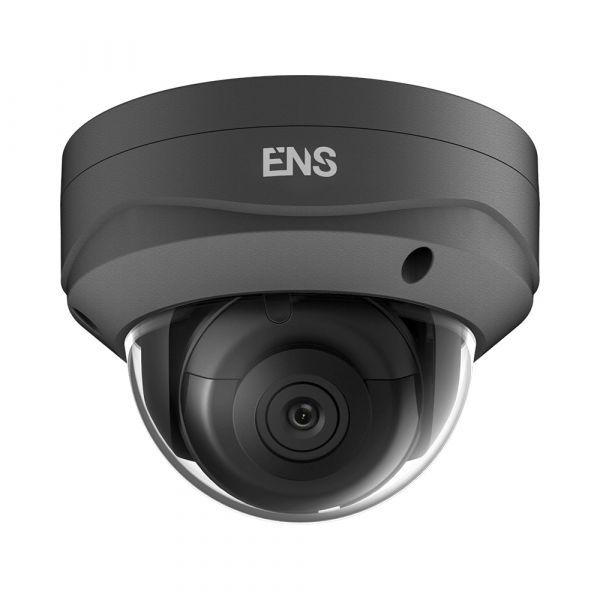

ENS SIP44D3-G28-K 4 Megapixel IR Fixed Dome Network Camera, 2.8mm Lens
SKU
SIP44D3-G28-K
Model No
SIP44D3-G28-K
$156.75
Product Highlights
- 1/2.5" progressive scan CMOS
- 2688 × 1520@30 fps
- Up to 30 m IR range
- 2.8mm fixed lens
- 4 Behavior analyses
Speak to an expert
The SIP44D3-G28-K from ENS is a high-performance 4 Megapixel IR Fixed Dome Network Camera featuring a 2.8mm lens designed to capture crystal-clear video in various lighting conditions. With advanced technologies like True WDR and Starlight, it ensures superior image quality, while its durable design makes it suitable for both indoor and outdoor settings.
ENS SIP44D3-G28-K Camera Features
- 1/2.5" progressive scan CMOS: Delivers high-quality images with exceptional clarity and detail.
- 2688 - 1520@30 fps: Offers smooth video playback and recording for real-time monitoring.
- Up to 30 m IR range: Provides clear visibility in complete darkness, enhancing security surveillance.
- 2.8mm fixed lens: Wide field of view for monitoring larger areas effectively.
- 4 Behavior analyses: Integrates advanced analytics for smarter monitoring and threat detection.
- Powered by Darkfighter: Optimizes low-light performance, ensuring quality images without excessive noise.
- H.265+, H.265, H.264+, H.264: Supports multiple video compression formats for efficient storage and bandwidth usage.
- IP67, IK10: Weatherproof and vandal-resistant design suitable for outdoor deployment.
- 120 dB WDR (Wide Dynamic Range): Balances challenging lighting conditions, providing clearer images.
- BLC/3D DNR/ROI/HLC: Advanced image processing features enhance visibility in various scenarios.
- PoE (Power over Ethernet): Simplifies installation by allowing power and data to be transmitted over a single cable.
Detailed Camera Specifications for ENS SIP44D3-G28-K
| Image Sensor | 1/2.5" progressive scan CMOS |
| Resolution | 2688 - 1520@30 fps |
| IR Range | Up to 30 m |
| Lens | 2.8mm fixed lens |
| Behavior Analysis | 4 different analyses |
| Low-Light Technology | Powered by Darkfighter |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Ingress Protection | IP67 |
| Impact Rating | IK10 |
| Wide Dynamic Range | 120 dB |
| Image Features | BLC/3D DNR/ROI/HLC |
| Power | PoE (Power over Ethernet) |
SKU  | SIP44D3-G28-K |
|---|---|
| Features | Auto Gain Control, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ENS |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Camera: Φ 111 × 82.4 mm (Φ 4.4" × 3.2") Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3") |
| Electronic Shutter | 1/3 s to 1/100, 000 s |
| Image Device | 1/2.5" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.008 lux @(F1.2, AGC ON), 0 lux with IR, Color: 0.014 lux @(F1.6, AGC ON), 0 lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | 12 VDC: Max. 5.5W, PoE: Max. 7W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131° |
| Rotation Angle | 0° to 355° |
| IR Distance | 30m/98.42ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Flickerless | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
