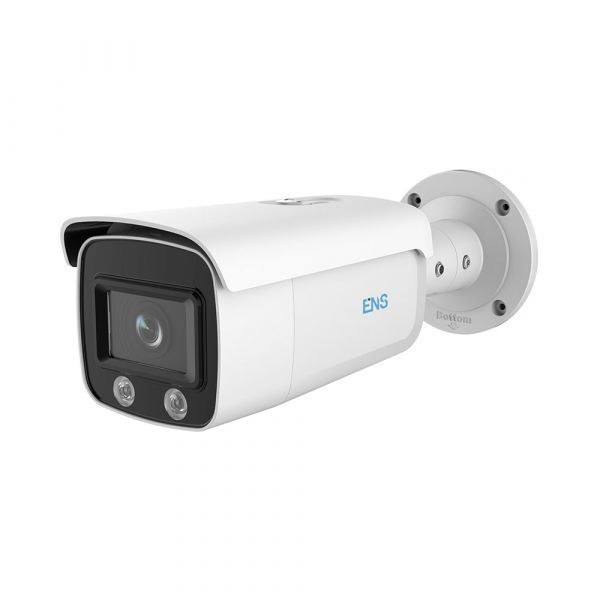

ENS SIP44B5L-4-U 4 Megapixel Fixed Bullet Network Security Camera, 4mm Lens
SKU
SIP44B5L-4-U
Model No
SIP44B5L-4-U
$199.00
Product Highlights
- 1/1.8" progressive scan CMOS
- Max. 2688 × 1520 @30fps
- 4 mm fixed lens
- H.265+, H.264+
- 120dB WDR
Speak to an expert
The SIP44B5L-4-U from ENS is a 4 Megapixel Fixed Bullet Network Security Camera with a 4mm Lens, designed for robust surveillance applications. Equipped with advanced features such as Night Color, White LED, True WDR, Starlight+, and various analytics capabilities, it offers exceptional image quality and versatility for both day and night monitoring.
ENS SIP44B5L-4-U Camera Features
- Sensor: 1/1.8" progressive scan CMOS for high-quality image capture.
- Resolution: Max. 2688 - 1520 @30fps for sharp and clear video playback.
- Lens: 4 mm fixed lens providing a balanced field of view for various applications.
- Codec: Supports H.265+ and H.264+ for efficient video compression.
- Wide Dynamic Range: 120dB WDR enhances visibility in challenging lighting conditions.
- Power Options: Flexible power supply with 12 VDC & PoE (802.3af, class 3) for ease of installation.
- Storage: Built-in micro SD/SDHC/SDXC slot, up to 128G for local video storage.
- Image Enhancement: BLC/3D DNR/HLC/ROI technology improves video quality in variable light conditions.
- Low Light Performance: 0.0014 @ (F1.0, AGC ON), 0 Lux with Light for reliable nighttime surveillance.
- Color Features: Full time color delivers vibrant video 24/7.
- Visibility: Visible Light Range Up to 30m, ensuring comprehensive monitoring coverage.
- Durability: IP67 rating making it suitable for outdoor and harsh environments.
ENS SIP44B5L-4-U Detailed Camera Specifications
| Sensor | 1/1.8" progressive scan CMOS |
| Maximum Resolution | 2688 - 1520 @30fps |
| Lens | 4 mm fixed lens |
| Video Compression | H.265+, H.264+ |
| Wide Dynamic Range | 120dB WDR |
| Power Supply | 12 VDC & PoE (802.3af, class 3) |
| Storage Capacity | Built-in micro SD/SDHC/SDXC slot, up to 128G |
| Image Features | BLC/3D DNR/HLC/ROI |
| Low Light Sensitivity | 0.0014 @ (F1.0, AGC ON), 0 Lux with Light |
| Color Performance | Full time color |
| Visible Light Range | Up to 30m |
| Weather Resistance | IP67 |
SKU  | SIP44B5L-4-U |
|---|---|
| Features | Auto Gain Control, Digital Noise Reduction, Flickerless, Mirror, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ENS |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Camera: Φ 105 × 290.7 mm (Φ 4.1" × 11.4") With package: 385 × 190 × 180 mm (15.2" × 7.5" × 7.1") |
| Electronic Shutter | 1/3 s to 1/100, 000 s |
| Image Device | 1/1.8" Progressive Scan CMOS |
| Minimum Scene Illumination | 0.0014 @ (F1.0, AGC ON), 0 Lux with Light |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | 12 VDC: Max. 6W, PoE: Max. 7.5W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115° |
| Rotation Angle | 0° to 360° |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Flickerless | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
