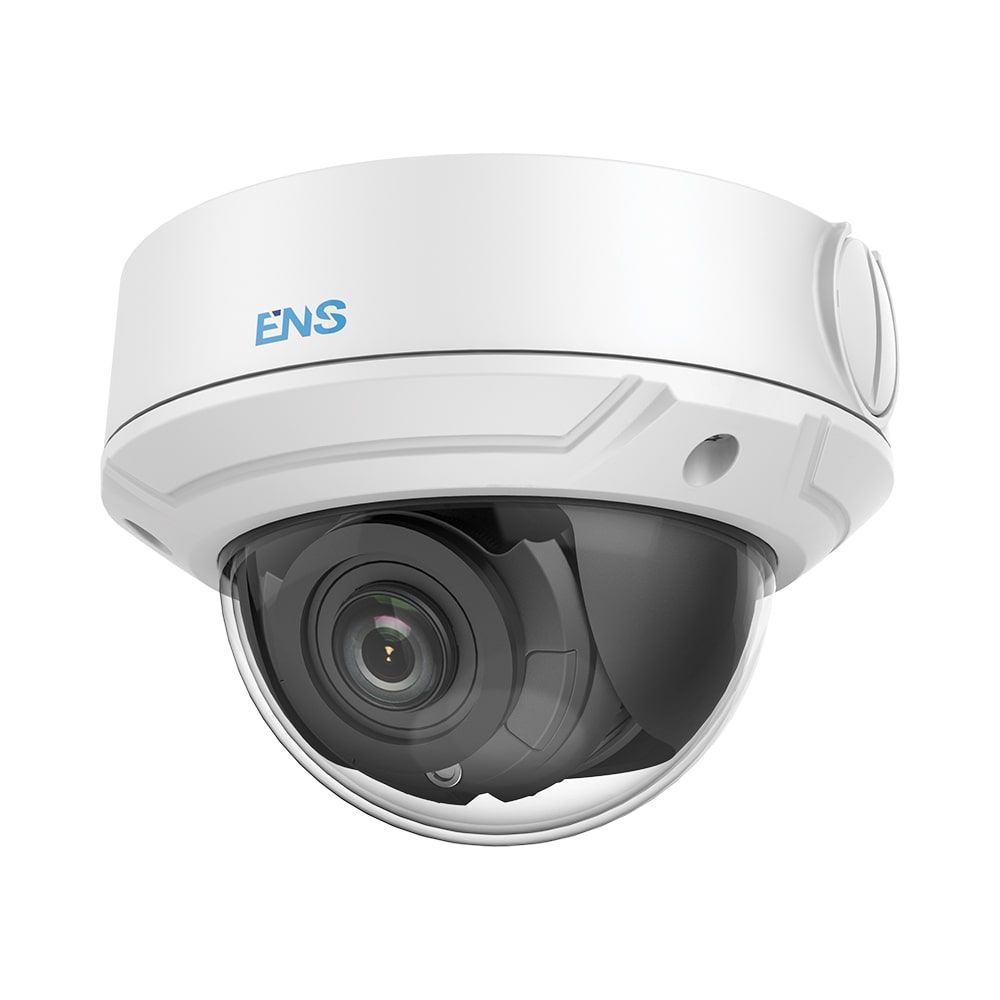

ENS SIP34D3-MZ-C 4 Megapixel IR Fixed Network Dome Security Camera, 2.8-12mm Lens
SKU
SIP34D3-MZ-C
Model No
SIP34D3-MZ-C
$219.00
Product Highlights
- 1/3" progressive scan CMOS
- 3D DNR (Digital Noise Reduction)
- 2560 × 1440@20fps
- Up to 30 m IR range
- 2.8~12 mm motorized lens
Speak to an expert
The SIP34D3-MZ-C from ENS is a 4 Megapixel IR Fixed Network Dome Security Camera, 2.8-12mm Lens, designed to provide high-resolution surveillance with advanced features for enhanced security. Its robust design and smart technology make it an excellent choice for various surveillance applications.
ENS SIP34D3-MZ-C Camera Features
- 1/3" progressive scan CMOS: Experience high image quality and clarity, ensuring reliable monitoring.
- 3D DNR (Digital Noise Reduction): Reduces noise and enhances image quality in low-light conditions.
- 2560 - 1440@20fps: Captures crisp, clear video footage at a high frame rate for smooth playback.
- Up to 30 m IR range: Provides clear night vision for effective monitoring in complete darkness.
- 2.8~12 mm motorized lens: Offers versatile focal length options for adaptable surveillance coverage.
- PoE (Power over Ethernet): Simplifies installation with a single cable for both power and data transmission.
- H.265+, H.265, H.264+, H.264: Supports multiple compression formats for efficient storage and bandwidth management.
- IP67, IK10: Ensures durability and protection against dust and vandalism, suitable for outdoor use.
- Dual-stream: Allows simultaneous streaming of high and low-resolution video for flexible bandwidth usage.
- 120 dB WDR (Wide Dynamic Range): Provides superior visibility in challenging lighting conditions by balancing bright and dark areas.
Detailed Camera Specifications for ENS SIP34D3-MZ-C
| Feature | Details |
|---|---|
| Camera Type | Fixed Network Dome |
| Megapixels | 4 Megapixels |
| Lens Type | 2.8-12mm Motorized |
| Sensor | 1/3" Progressive Scan CMOS |
| Video Resolution | 2560 - 1440@20fps |
| IR Range | Up to 30 meters |
| Power Supply | PoE (Power over Ethernet) |
| Weather Resistance | IP67 Rated |
| Vandal Resistance | IK10 Rated |
| Wide Dynamic Range | 120 dB WDR |
SKU  | SIP34D3-MZ-C |
|---|---|
| Features | Auto Gain Control, Digital Noise Reduction, Flickerless, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | ENS |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Camera: Φ 141 mm × 99.9 mm (5.6" × 3.9") With package: 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1") |
| Electronic Shutter | 1/3 s to 1/100, 000 s |
| Image Device | 1/3" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C to 50 °C (-22 °F to 122 °F) |
| Power Consumption | 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal field of view: 98° to 28° Vertical field of view: 51° to 16° Diagonal field of view: 115° to 32° |
| Rotation Angle | 0° to 355° |
| IR Distance | 30m/98.42ft |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Flickerless | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
