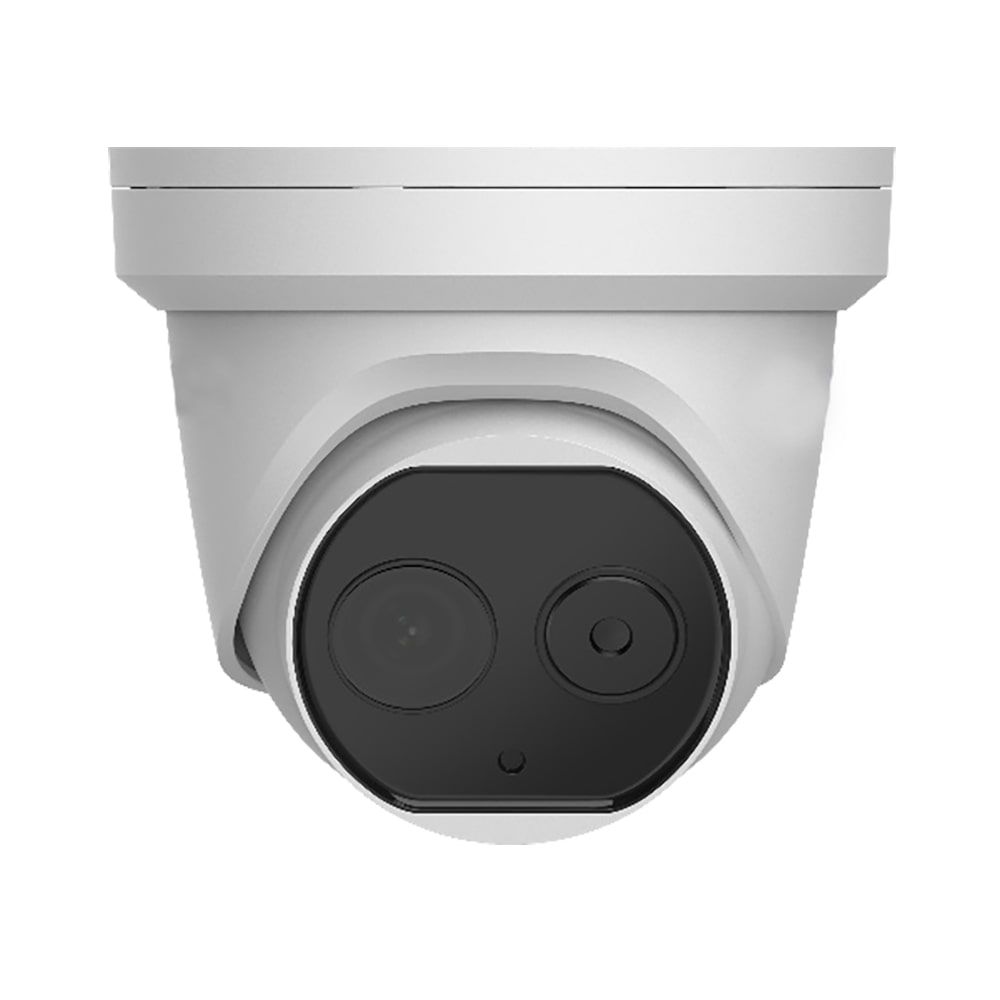

ENS SIP32T2ATH-2 2 Megapixel Thermal & Optical Network Turret Camera, 2.1mm Lens

SKU
SIP32T2ATH-2
Model No
SIP32T2ATH-2
$1,798.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Reliable temperature exception alarm function
  • The advanced fire detection algorithm
  • Bi-spectrum image fusion, picture in picture preview
  • Thermal Imaging Module Function
  • Shutter adjustment in various modes

The SIP32T2ATH-2 from ENS is a cutting-edge 2 Megapixel Thermal & Optical Network Turret Camera equipped with a 2.1mm lens, designed for superior surveillance and advanced monitoring capabilities. Key features include exceptional image processing technology, powerful analytics through deep learning algorithms, and reliable temperature and fire detection functionalities, making it ideal for a variety of security applications.

ENS SIP32T2ATH-2 Camera Features

  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (@25°C, F#=1.1) ensuring high-quality imaging in various environments.
  • Powerful behavior analysis function: Utilizes deep learning algorithms for line crossing, intrusion, and region entrance/exit detection, enhancing security measures.
  • Reliable temperature exception alarm function: Alerts users to abnormal temperature levels, crucial for safety in high-risk environments.
  • Advanced fire detection algorithm: Quickly identifies signs of fire, enabling prompt responses to potential emergencies.
  • Bi-spectrum image fusion: Offers picture-in-picture previews for improved situational awareness and monitoring efficiency.
  • Thermal Imaging Module Function: Enhances visibility in low-light conditions for reliable performance day and night.
  • High sensitivity sensor: 160 × 120 resolution with output image resolution of 320 × 240, supporting contrast adjustment for clearer images.
  • Shutter adjustment in various modes: Flexibly adapts to changing light conditions for optimal image quality.
  • 3D DNR: Provides 15 adjustable color palettes and enhanced image detail, ensuring clarity and precision in footage.

ENS SIP32T2ATH-2 Detailed Camera Specifications

Camera TypeThermal & Optical Network Turret
Lens2.1mm
Resolution2MP@30FPS, Thermal: 160×120@25FPS
Image FusionBi-spectrum with picture-in-picture preview
Advanced FeaturesVCA, Fire Detection, Temperature Measurement, Audio/Alarm
Infrared RangeEXIR (up to 49ft)
Sensor Type1/2.7” sensor, high sensitivity
Special FunctionsStarlight, True WDR, 3D DNR
SKU  SIP32T2ATH-2
Features  Auto Gain Control, Digital Noise Reduction, Weather Resistant
Manufacturer  ENS
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    2.1mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
Electronic Shutter    1s to 1/100,000s
Image Device    1/2.8” Progressive Scan CMOS
Minimum Scene Illumination  Color: 0.002 Lux @ (F1.2,AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
Operating Humidity    95% or less (non-condensing)
Operating Temperature    -30 °C to 60 °C (-22 °F to 140 °F)
Power Consumption  12 VDC ± 20%: 0.7 A, max. 8W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.5W
Protocols  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Angle of View    101.2°× 77°(H × V)
IR Distance  15m/49.21ft
Auto Gain Control    Yes
Digital Noise Reduction    Yes
