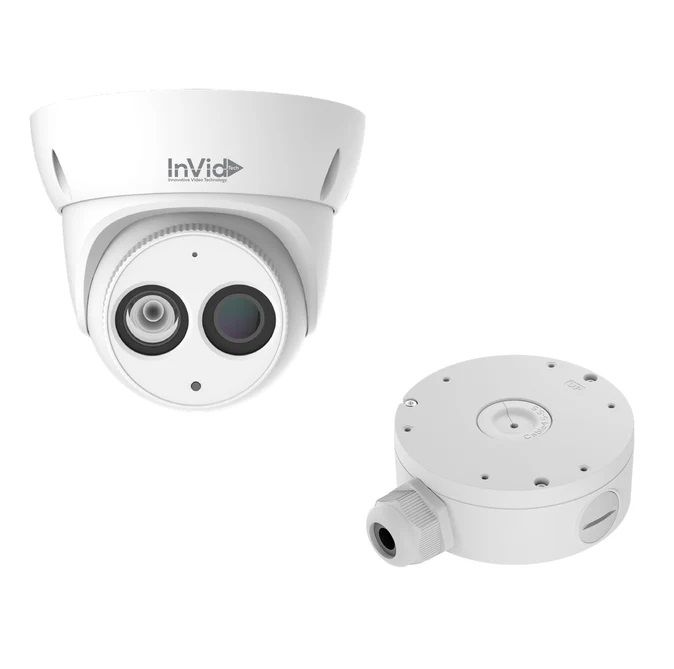

InVid SECA-P4TXIR28 4 Megapixel Network IR Outdoor Dome Camera with 2.8mm Lens
- Fixed Lens
- True Day/Night with IR Range up to 98'
- H.265, H.264, MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
4 Megapixel Network IR Outdoor Dome Camera
- The SECA-P4TXIR28 from InVid is a 4 megapixel ip plug & play outdoor turret camera with 2.8mm fixed lens, IR range up to 98’, built-in mic, true WDR, sd card slot, 12vdc/PoE, includes junction box.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Motion Detection
Mirror
Privacy Masking
Weather Resistant
WDR
Camera Features
| Human & Vehicle Classification for Multi-Object Detection | Audio Input: Built-in Mic |
| Human and Vehicle Detection for Intelligent Analysis | IP67 Weatherproof |
| 4 Megapixel Resolution | 12VDC/PoE Operation |
| Fixed Lens | ONVIF |
| True Day/Night with IR Range up to 98’ | Supports Native Chrome/EDGE Use |
| H.265, H.264, MJPEG Compression | Free iOS & Android Apps for Smart Phones & Tablets |
| 30 FPS Recording and Live | Free Central Management Software (CMS) |
| True WDR 120dB | TAA Compliant |
| Micro SD Slot: Up to 256GB | Junction Box Included |
What is TAA Compliance?
TAA refers to the Trade Agreement Act that was created in 1979 for the purpose of fostering fair and open international trade, and now plays an important role in deciding where the United States Government can obtain products. TAA compliance requires the U.S. Government to only acquire products that were made in the U.S. or countries that are deemed TAA compliant. More specifically, the products being sold must have been manufactured or “substantially transformed” in the U.S. or a TAA compliant country. In some instances, a product has several components and was made in multiple countries. If that is the case, at least 50% of the production must occur in a TAA compliant country, and the last country that the product was in before being imported to the U.S. must also be TAA compliant.
Illuminate
Full color at night without white light or IRs.
Additional InVid Products
SKU  | SECA-P4TXIR28 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | InVid |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | φ4.65” × 4.06” (φ118 × 103mm) |
| Electronic Shutter | Auto/Manual, 1/5 ~ 1/20,000s |
| Image Device | 1/2.8” Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.03 Lux @ (F1.6, AGC ON), B/W: 0 Lux @ (IR LED ON) |
| Operating Temperature | -40°F ~ 131°F (-40°C ~ 55°C) |
| Power Consumption | Max 6 W |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
| S/N Ratio | 55dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D/3D DNR |
| Automatic White Balance | Auto/Manual |
| IR Distance | 29m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
SECA-P4TXIR28-Specsheet
