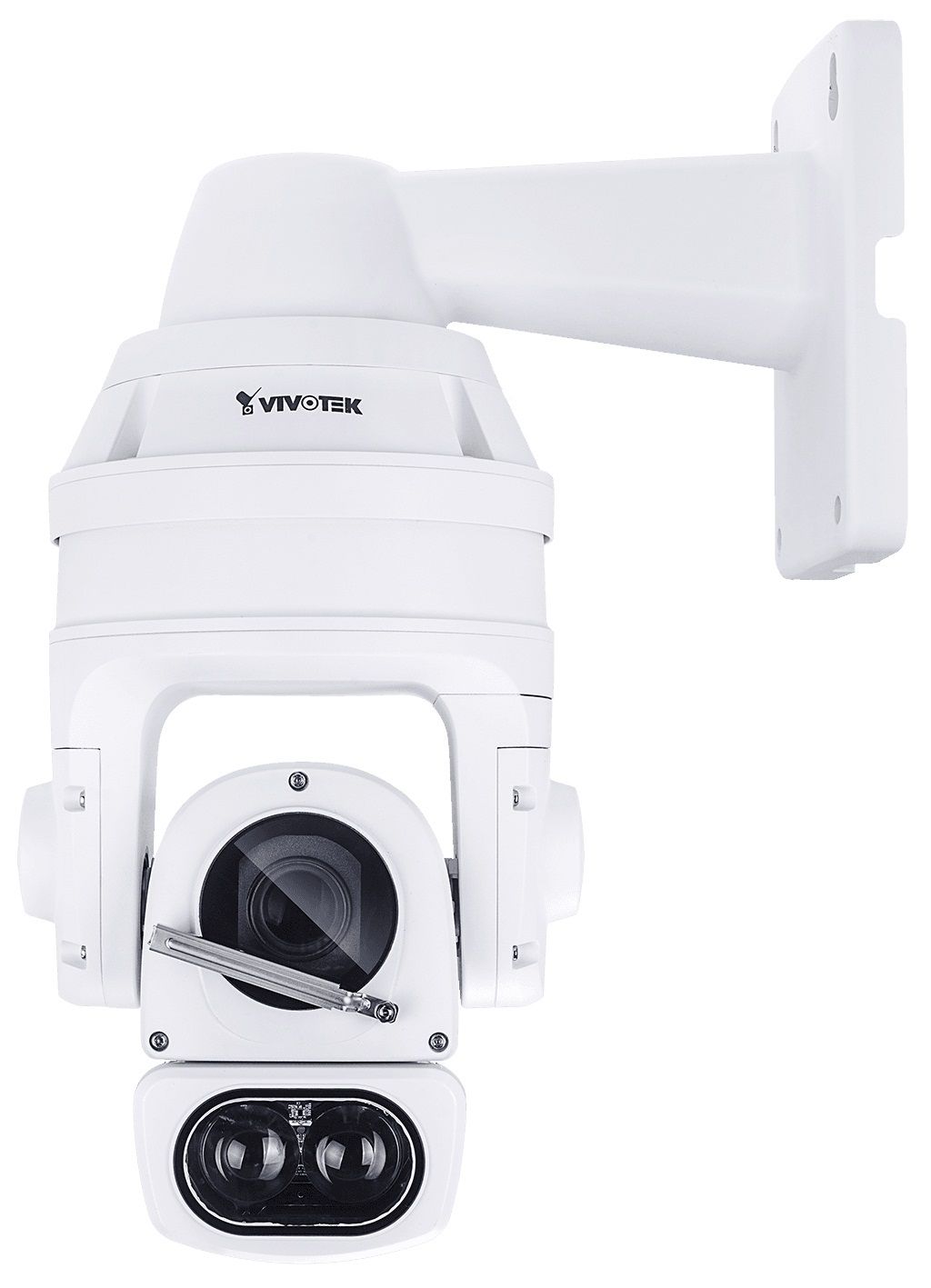

Vivotek SD9366-EH-V2 2 Megapixel Network IR Outdoor PTZ Camera, 30X Lens

SKU
SD9366-EH-v2
Model No
SD9366-EH-V2
$3,800.00
Qty:
Product Highlights
    • H.265 Compression technology
    • 1080P Full HD CMOS Sensor
    • 60 fps @ 1080p Full HD
    • 30x Zoom Lens
    • 250M IR with Smart IR II (Vari-Angle IR)

The SD9366-EH-v2 is the latest professional IR speed dome camera with wiper from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 250M IR illuminators and a 30x optical zoom lens, the SD9366-EH-v2 provides a superb low light image in the most challenging situations. The camera also adopts VIVOTEK's Smart IR II technology, Vari-Angle IR. VIVOTEK's Vari-Angle IR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.

The SD9366-EH-v2 is the PTZ surveillance camera with IR Illumination to utilize H.265 compression technology. When combined with VIVOTEK's Smart Stream II technology users can obtain bandwidth savings of up to 80%* compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, Vari-Angle IR, WDR, and 30x optical zoom, the SD9366-EH-v2 is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week.

VIVOTEK further strengthened the camera performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9366-EH-v2 has a wide operating temperature range from -50°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9366-EH-v2 ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required.

Features

  • H.265 Compression technology
  • 1080P Full HD CMOS Sensor
  • 60 fps @ 1080p Full HD
  • 30x Zoom Lens
  • 250M IR with Smart IR II (Vari-Angle IR)
  • 360° Continuous Pan and 220° Tilt
  • Removable IR-cut Filter for Day & Night Function
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
  • -50°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
  • EIS (Electronic Image Stabilization) to Control Image Stability
  • Easy Cleaning with Built-in Wiper
SKU  SD9366-EH-v2
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    30X
Mount Type  Wall
Compression Method    H.264, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  24vDC, 24vAC, PoE
Dimensions (W x H)  237 x 364 mm
Electronic Shutter    1 sec. to 10,000 sec.
Image Device    1/2.8" Progressive CMOS
IR LEDs  2
Minimum Scene Illumination  0.195 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W), 0 Lux with IR illumination on
Operating Humidity    0.98
Operating Temperature    -40°C ~ 55°C (-40°F ~ 131°F),DC 24V power input -50°C ~ 55°C (-58°F ~ 131°F), AC 24V/PoH (95W) power input *Wiper is functional at 10°C ~ 55°C(50°F ~ 131°F)
Power Consumption  PoH/PoE (95W): Max. 70 W (Heater on, IR on), Max. 51 W (Heater off, IR on), AC/DC 24V: Max. 63 W (Heater on, IR on), Max. 45 W (Heater off, IR on)
Protocols  802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
S/N Ratio  66 dB
Weatherproof    IP66
Digital Noise Reduction    3DNR
Angle of View    2.3° ~ 64° (Horizontal), 1.3° ~ 36° (Vertical), 2.6° ~ 73° (Diagonal)
Motion Detection Tracking    Five-window video motion detection
IR Distance  250m/820.21ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
There are no related videos.
SKU
SD9366-EH-v2
Availability: In stock
