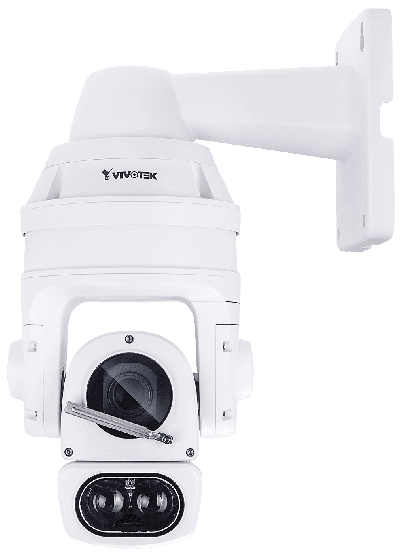

Vivotek SD9365-EHL 2 Megapixel Network IR Outdoor PTZ Camera, 20x Lens

SKU
SD9365-EHL
Model No
SD9365-EHL
$2,203.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Real-time H.265, H.264 and MJPEG Compression (Triple Codec)
  • 60 fps @ 1080p Full HD
  • 20x Zoom Lens
  • 150M IR with Smart IR II (vari-angle IR)
  • WDR Pro for Unparalleled Visibility in High Contrast Environments

The Vivotek SD9365-EHL 2 Megapixel Network IR Outdoor PTZ Camera is designed for professional surveillance needs, offering high-quality low light performance and remarkable zoom capabilities. With advanced features like Smart IR II technology, real-time H.265 compression, and a durable all-weather housing, this camera ensures top-notch monitoring 24/7, making it ideal for large outdoor areas such as ports and highways.

Vivotek SD9365-EHL Camera Features

  • Real-time H.265, H.264 and MJPEG Compression: Supports triple codec technology, allowing for versatile video streaming options while maximizing storage efficiency.
  • 60 fps @ 1080p Full HD: Captures smooth, high-definition footage at 60 frames per second, ensuring clear and detailed images.
  • 20x Zoom Lens: Offers extensive zoom capabilities for close-up monitoring of distant subjects without losing clarity.
  • 150M IR with Smart IR II: Delivers exceptional night vision with vari-angle IR adjustments for uniform coverage and reduced hot-spots.
  • WDR Pro: Enhances visibility in high-contrast lighting conditions, ensuring reliable performance in mixed light environments.
  • Weather-proof IP66, Vandal-proof IK10, and NEMA 4X-rated Housing: Provides robust protection against harsh weather and physical impacts to ensure durability and longevity.
  • -40°C ~ 55°C Wide Temperature Range: Ensures reliable operation in extreme temperatures, making it suitable for diverse environmental conditions.
  • Smart Stream II: Optimizes bandwidth efficiency by intelligently adjusting video quality based on activity level.
  • EIS: Electronic image stabilization minimizes blurriness caused by camera shakes, ensuring steady footage.
  • Easy Cleaning with Built-in Wiper: Keeps the lens clear in adverse weather, maintaining image quality without manual intervention.

Detailed Specifications for Vivotek SD9365-EHL

FeatureDetails
Camera TypePTZ Network IR Outdoor Camera
Resolution2 Megapixels (1080p Full HD)
Optical Zoom20x
IR Illumination Range150 meters
Temperature Range-40°C to 55°C
Compression FormatsH.265, H.264, MJPEG
Frame Rate60 fps at 1080p
WDR TechnologyWDR Pro
Housing RatingIP66, IK10, NEMA 4X
Additional FeaturesSmart Stream II, EIS, Built-in Wiper
SKU  SD9365-EHL
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Mount Type  Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  24vDC, PoE
Dimensions (W x H)  236.45 x 364.2 mm
Electronic Shutter    1/8 sec. to 1/30,000 sec
Image Device    1/3" Progressive CMOS
IR LEDs  2
Minimum Scene Illumination  0.26 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W), 0 Lux with IR illumination on
Operating Humidity    90%
Operating Temperature    Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F), Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
Power Consumption  PoH/PoE (95W): Max. 70 W (Heater on), Max. 39 W (Heater off) AC/DC 24V: Max. 96 W (Heater on), Max. 45 W (Heater off)
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, NTCIP
S/N Ratio  53 dB
Weatherproof    IP66
Digital Noise Reduction    3D
Angle of View    3° ~ 55° (Horizontal), 2° ~ 33° (Vertical), 3° ~ 63° (Diagonal)
Motion Detection Tracking    Five-window video motion detection
IR Distance  150m/492.12ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
