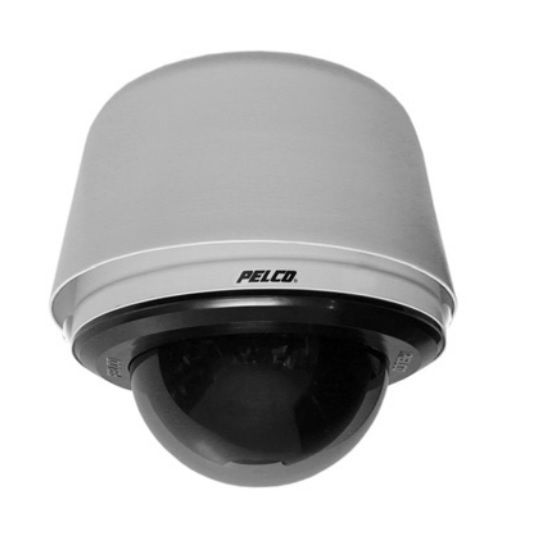

Pelco SD4E29-PG-E1-X 540 TVL Day/Night Pendant Environmental Clear Network IP PTZ Camera, PAL, 29X, Light Gray
SKU
SD4E29-PG-E1-X
Model No
SD4E29-PG-E1-X
$2,581.10
Product Highlights
- Ability to Control and Monitor Video Over IPv4 and IPv6 Networks
- Simultaneous IP and Analog Video and Control
- H.264, MPEG-4, and MJPEG Compression
- Multilevel Password Protection
- 3 Autofocus, High Resolution Integrated Camera/Optics Packages
Speak to an expert
The Pelco SD4E29-PG-E1-X is a top-of-the-line Day/Night Pendant Environmental Clear Network IP PTZ Camera, tailored for both security professionals and users seeking robust surveillance solutions. It boasts impressive 540 TVL resolution, a powerful 29X optical zoom, and has an advanced environmental design suitable for various settings, allowing for exceptional image quality at all times of the day.
Pelco SD4E29-PG-E1-X Camera Highlights
- Control and Monitor: Ability to Control and Monitor Video Over IPv4 and IPv6 Networks ensures seamless integration into modern infrastructures.
- Dual Video Streaming: Simultaneous IP and Analog Video and Control provides flexibility for different applications and user preferences.
- Advanced Compression Formats: H.264, MPEG-4, and MJPEG Compression supports high-quality footage with reduced bandwidth usage, improving storage and transmission efficiency.
- Enhanced Security: Multilevel Password Protection safeguards against unauthorized access, ensuring that sensitive surveillance data remains secure.
- High-Quality Optics: 3 Autofocus, High Resolution Integrated Camera/Optics Packages deliver exceptional clarity and detail for precise monitoring.
Pelco SD4E29-PG-E1-X Detailed Specifications
| Camera Resolution | 540 TVL |
| Zoom Capability | 29X Optical Zoom |
| Video Compression | H.264, MPEG-4, MJPEG |
| Network Support | IPv4 and IPv6 |
| Video Output | Simultaneous IP and Analog |
| Security Features | Multilevel Password Protection |
| Integration | Compatible with various video management systems |
| Environmental Design | Suitable for outdoor and harsh environments |
SKU  | SD4E29-PG-E1-X |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 540 TVL |
| Lens Type | Motorized Zoom |
| Lens Size | 29X |
| Mount Type | Pendant |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor, Weather Resistant |
| Voltage | 24vDC |
| Automatic Gain Control (AGC) | Automatic/OFF |
| Electronic Shutter | Automatic (electronic iris)/Manual, 1/1.5 ~ 1/30,000 |
| Image Device | 1/4-inch EXview HAD |
| Image Pixels-Effective | 752 (H) X 582 (V) |
| Minimum Scene Illumination | 0.45 lux at 1/50 sec (color), 0.015 lux at 1/1.5 sec (color), 0.045 lux at 1/50 sec (B-W), 0.0015 lux at 1/1.5 sec (B-W) |
| Operating Temperature | 60°C (140°F) absolute maximum; 50°C (122°F) sustained maximum, –51°C (–60°F) absolute minimum; prevents icing at sustained minimum of –45°C (–50°F); de-ices 2.5 mm (0.1 inch) within 3 hours after power-up |
| OSD Menu | English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP) |
| S/N Ratio | >50 dB |
| Scanning System | Interlace/Progressive selectable |
| Signal System | PAL |
| Video Output | 1 Vp-p, 75 ohms |
| Weatherproof | IP66 |
| Processor | Intel Pentium 4 microprocessor, 1.6 GHz |
| Angle of View | 57.2° at 3.4 mm wide zoom, 2.2° at 95.7 mm telephoto zoom |
| Rotation Angle | 360° |
| Motion Detection Tracking | Integrated |
| Automatic White Balance | Automatic with manual override |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
