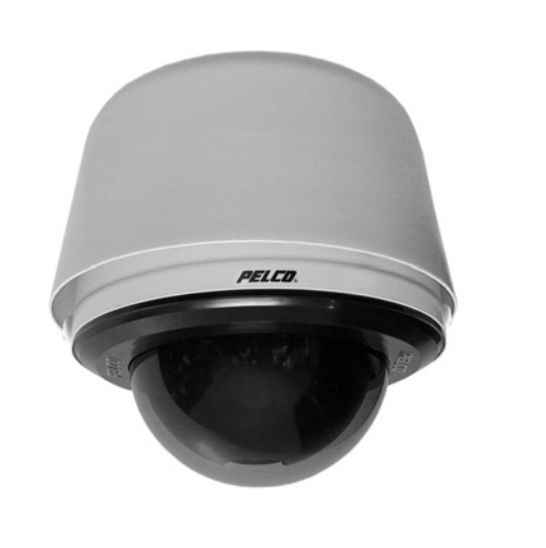

Pelco SD4E29-PG-E0-X 540 TVL Day/Night Pendant Environmental Smoked Network IP PTZ Camera, PAL, 29X, Light Gray
SKU
SD4E29-PG-E0-X
Model No
SD4E29-PG-E0-X
$2,581.10
Product Highlights
- Ability to Control and Monitor Video Over IPv4 and IPv6 Networks
- Simultaneous IP and Analog Video and Control
- H.264, MPEG-4, and MJPEG Compression
- Multilevel Password Protection
- 3 Autofocus, High Resolution Integrated Camera/Optics Packages
Speak to an expert
540 TVL Day/Night Pendant Environmental Smoked Network IP PTZ Camera
- The SD4E29-PG-E0-X from Pelco is a 540 TVL day/night pendant environmental smoked network IP PTZ camera, PAL, 29X, light gray. Spectra IV IP dome systems incorporate all of the features and functions of Spectra IV (including analog) while allowing you to control and monitor video over an IP network from virtually anywhere in the world. Spectra IV IP is a high-speed dome with a built-in 100Base-TX network interface for live streaming to any network application.
- Spectra IV IP supports two simultaneous video streams. The two streams can be compressed in MJPEG, MPEG-4, and H.264 formats across several resolution configurations. The streams can be configured in a variety of frame rates, bit rates, and a group of pictures (GOP) structures for additional bandwidth administration. The H.264 compression video files are up to 20 times smaller than MJPEG, making network video storage more affordable.
Camera Functions
Auto Gain Control
Auto White Balance
Day/Night Vision
Motion Detection
On Screen Display Menu
Onvif
Weather Resistant
WDR
Camera Features
| Ability to Control and Monitor Video Over IPv4 and IPv6 Networks | Up to 2 Simultaneous Video Streams |
| Simultaneous IP and Analog Video and Control | Web Viewing |
| H.264, MPEG-4, and MJPEG Compression | Open IP Standards |
| Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP) | Environmental Models |
| Multilevel Password Protection | Built-in Memory Stores Camera/Dome Settings |
| 3 Autofocus, High Resolution Integrated Camera/Optics Packages | Environmental Pendant Gray Finish Only |
| Autotracking | Quick Disconnect to Dome Drive |
| Horizontal Zone and Window Blanking | Aluminum Construction |
| On-Screen Compass and Tilt Display | Environmental Model Includes Sun Shield, Fan, and Heater |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
Additional Pelco Products
SKU  | SD4E29-PG-E0-X |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 540 TVL |
| Lens Type | Motorized Zoom |
| Lens Size | 29X |
| Mount Type | Pendant |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor, Weather Resistant |
| Voltage | 24vDC |
| Automatic Gain Control (AGC) | Automatic/OFF |
| Electronic Shutter | Automatic (electronic iris)/Manual, 1/1.5 ~ 1/30,000 |
| Image Device | 1/4-inch EXview HAD |
| Image Pixels-Effective | 752 (H) X 582 (V) |
| Minimum Scene Illumination | 0.45 lux at 1/50 sec (color), 0.015 lux at 1/1.5 sec (color), 0.045 lux at 1/50 sec (B-W), 0.0015 lux at 1/1.5 sec (B-W) |
| Operating Temperature | 60°C (140°F) absolute maximum; 50°C (122°F) sustained maximum, –51°C (–60°F) absolute minimum; prevents icing at sustained minimum of –45°C (–50°F); de-ices 2.5 mm (0.1 inch) within 3 hours after power-up |
| OSD Menu | English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP) |
| S/N Ratio | >50 dB |
| Scanning System | Interlace/Progressive selectable |
| Signal System | PAL |
| Video Output | 1 Vp-p, 75 ohms |
| Weatherproof | IP66 |
| Processor | Intel Pentium 4 microprocessor, 1.6 GHz |
| Angle of View | 57.2° at 3.4 mm wide zoom, 2.2° at 95.7 mm telephoto zoom |
| Rotation Angle | 360° |
| Motion Detection Tracking | Integrated |
| Automatic White Balance | Automatic with manual override |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
