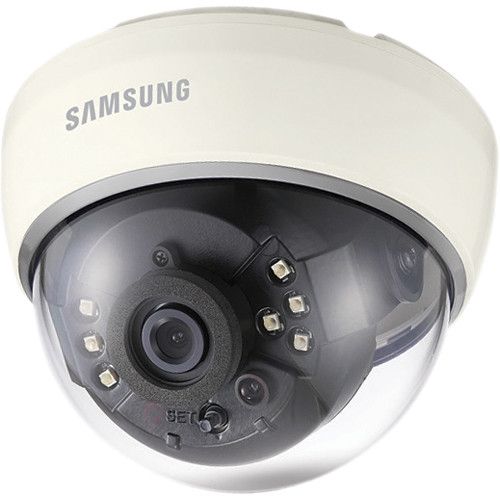

Hanwha Vision SCD-2042RN 700 TVL Premium Resolution IR Dome Camera, 8mm
SKU
SCD-2042RN
Model No
SCD-2042RN
$93.32
Product Highlights
- High resolution of 700TV lines
- Min. Illumination 0Lux (IR LED on), IR distance 7m
- Built-in fixed lens 8mm
- Day & Night (ICR), SSNRIII, Defog
- Coax : Pelco-C (Coaxitron), 12V DC
Speak to an expert
700 TVL Premium Resolution IR Dome Camera, 8mm
- The SCD-2042RN from Hanwha Vision is a discreet general purpose analog fixed dome camera suitable for a wide range of applications. It incorporates the 6th generation Winner engine from Hanwha Vision Techwin that features premium level resolution at 700TV lines in sharp mode and other core functionalities such as SSNRIII, day & night (ICR), and defog. It provides clear images under challenging environments, the SCD-2042RN is a perfect solution for who is looking for a cost effective high quality video surveillance camera.
Camera Functions
Auto Gain Control
Automatic White Balance
BLC
Day/Night Vision
3D DNR
Digital Zoom
Motion Detection
Privacy Masking
Camera Features
| High resolution of 700TV lines | Day & Night (ICR) , SSNRIII, Defog |
| Min. Illumination 0Lux (IR LED on) , IR distance 7m | Coax: Pelco-C (Coaxitron) , 12V DC |
| Built-in fixed lens 8mm |
Additional Hanwha Vision Products
SKU  | SCD-2042RN |
|---|---|
| Features | Privacy Masking |
| Manufacturer | Hanwha Vision |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 8mm |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor |
| Mount Type | Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/60 ~ 1/120,000sec |
| Image Device | 1/3" Super HAD CCD II |
| Image Pixels Total | 1,020(H) x 508(V) |
| Image Pixels-Effective | 976(H) x 494(V) |
| IR Distance | 7m/22.96 ft |
| Minimum Scene Illumination | Color : [email protected] (50IRE), 0.0002Lux (Sens-up, 512x), B/W : 0 LUX (IR LED on) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Dimensions (W x H) | Ø107.6 x 83.7mm (Ø4.24" x 3.3") |
| OSD Menu | English, Japanese, Spanish, French, Portuguese, Korean |
| Power Consumption | Max. 3W |
| Privacy Zone | Off / On (8 programmable zones) |
| Protocols | Coax : Pelco-C (Coaxitron) |
| S/N Ratio | 52dB (AGC off, Weight on) |
| Scanning Horizontal | 15.734KHz |
| Scanning System | 2 : 1 Interlace |
| Scanning Vertical | 59.94Hz |
| Signal System | NTSC |
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite |
| Synchronization | Internal |
| Digital Noise Reduction | SSNRIII (Off / On) |
| Angle of View | H : 34° / V : 26° |
| Backlight Compensation | Off / BLC / HLC |
| Automatic White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K) |
| Auto Gain Control | Off / Low / Middle / High |
| IR LEDs | 8 |
| Motion Detection | Off / On |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Coaxitron | Yes |
