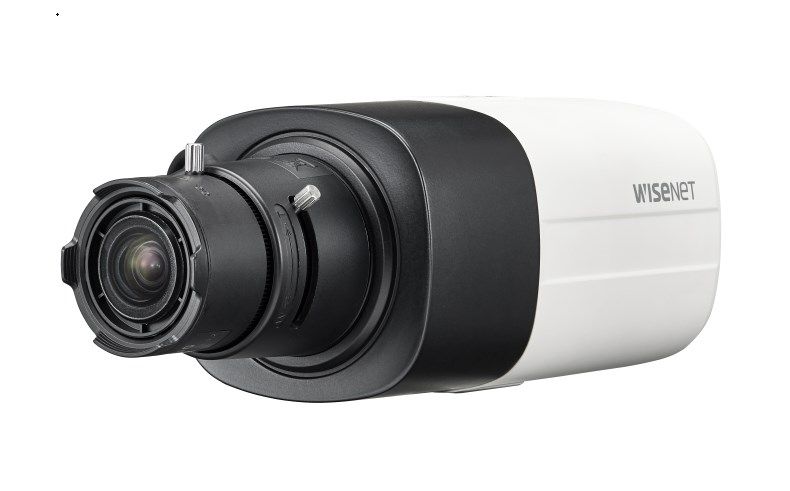

Hanwha Vision SCB-6005 1080p Full HD Analog Box Camera
SKU
SCB-6005
Model No
SCB-6005
$99.95
Product Highlights
- Full HD(1920 x 1080, 30fps) resolution
- [email protected] (Color), [email protected](B/W)
- Day & Night(ICR)
- SSNR, Motion detection
- Transmission distance max.500m
Speak to an expert
WiseNet HD+ box cameras allow users to upgrade their surveillance systems to HD using legacy coax cabling without the costly process of ripping and replacing coax with Ethernet cabling. The new WiseNet HD+ cameras offer a variety of high-performance features including Day/Night operation, motion detection, defog, IR illuminators and more depending on model. Setup functions are easily controlled by OSD with the built-in joystick or control over coaxial cable with WiseNet HD+ DVRs. Low power consumption, compact form factors, and transmission up to 1,640 feet further enhance the lineup. Lens optional.
Hanwha Vision SCB-6005 Camera Features
- Full HD(1920 x 1080, 30fps) resolution for crystal-clear video quality, ensuring detailed monitoring of your premises.
- [email protected] (Color), [email protected](B/W) for excellent low-light performance, allowing visibility in challenging lighting conditions.
- Day & Night(ICR) capability, enabling seamless transition between day and night modes for 24/7 surveillance.
- SSNR (Super Noise Reduction) technology reduces noise in low-light conditions, enhancing video clarity.
- Transmission distance max. 500m, providing flexibility in installation without compromising on video quality.
Detailed Camera Specifications
| Camera Type | Analog Box Camera |
| Video Resolution | 1920 x 1080 (Full HD) |
| Frame Rate | 30fps |
| Minimum Illumination | 0.04Lux (Color), 0.004Lux (B/W) |
| Day & Night Functionality | Yes (ICR) |
| Noise Reduction | SSNR |
| Transmission Distance | Up to 500m |
SKU  | SCB-6005 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking |
| Manufacturer | Hanwha Vision |
Camera Signal  | Analog |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | 1 ~ 1/12,000sec |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color: 0.04Lux (F1.2, 1/30sec), BW: 0.004Lux(F1.2) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Dimensions (W x H) | 68.4(W)×59.6(H)×92.7(D)mm(2.69×2.35×3.65") |
| Power Consumption | AC 24V / 0.37A (Max 3.6W), DC 12V / 0.32A (Max 3.5W) |
| Privacy Zone | 8ea, rectangular zones |
| Protocols | ACP (AHD Coax Protocol), CVBS: Pelco-C (Coaxitron) |
| Digital Noise Reduction | SSNRâ…£ |
| Backlight Compensation | BLC, HLC, DWDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Auto Gain Control | Low / Middle / High / Very High |
| Motion Detection | 4ea |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
There are no related videos.
1
Write a review
Share your thoughts with other customers
Top customer reviews
- Lens not included 0 people found this helpfulBuyer beware. The pictures of this product show a lens but it does not come with one. I found out the hard way. The detailed specifications do say lens not included but everything else in the listing leads one to believe that it comes with a lens.
