RVS Systems RVS-Transit-NC 520 TVL Backup Camera for Ford Transit-Connect Vehicles, No Cable
SKU
RVS-Transit-NC
Model No
RVS-Transit-NC
$141.30
Product Highlights

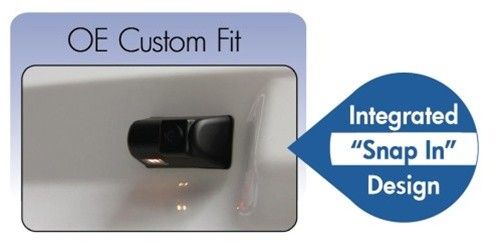

- OEM installation - installs on top of license plate
- 130° ultra-wide-angle view with excellent night vision
- Completely waterproof with an IP68 rating
- Comes included with light for license plate
- Fits transit-Connect vans from 2010-2016
Speak to an expert

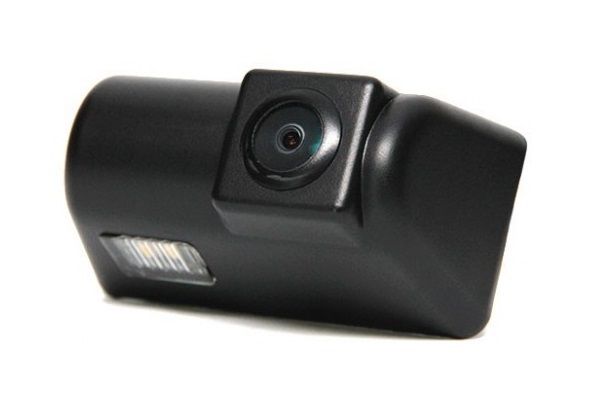

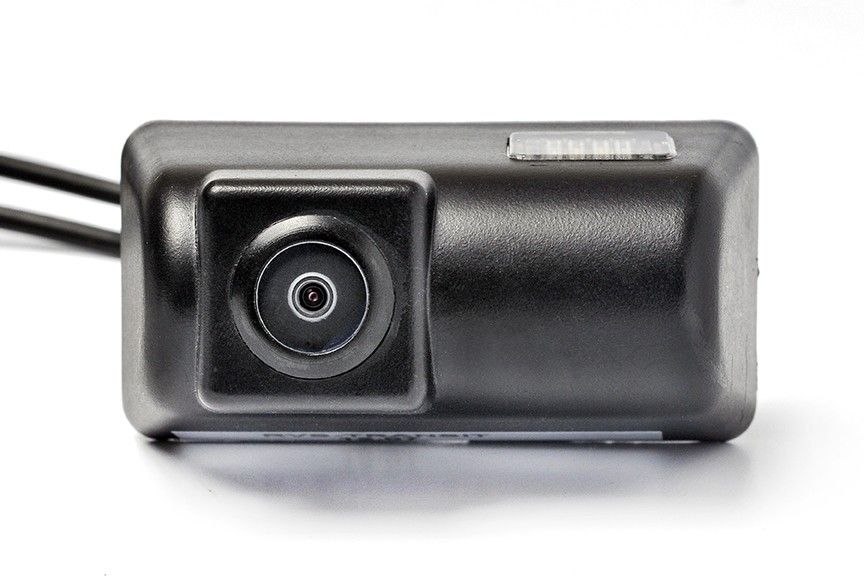

The RVS-Transit-NC from RVS Systems is a Ford Transit-Connect backup camera that snaps into the existing light placement above the license plate for a sleek OEM look. The Ford Transit backup camera boasts a 130 Degree Sony® CCD sensor which displays a rich color picture both day and night. The camera has excellent night vision which works great in low light settings.
RVS Systems RVS-Transit-NC Camera Features
- OEM Installation: Installs seamlessly on top of the license plate, providing a factory-installed appearance.
- 130° Ultra-Wide-Angle View: Enjoy a broad field of view for enhanced safety and visibility, complemented by excellent night vision capabilities.
- Waterproof Design: Rated IP68, this camera is completely waterproof, ensuring durability in all weather conditions.
- Integrated License Plate Light: The camera includes a light for the license plate, improving safety and visibility at night.
- Vehicle Compatibility: Specifically designed to fit Ford Transit-Connect vans from 2010 to 2016, ensuring a perfect fit for your vehicle.
RVS Systems RVS-Transit-NC Detailed Specifications
| Camera Type | Backup Camera |
| Sensor Type | Sony® CCD |
| Viewing Angle | 130 Degrees |
| Night Vision | Yes |
| Waterproof Rating | IP68 |
| Installation Location | Above License Plate |
| Weight | 0.5 lbs |
| Compatibility | Ford Transit-Connect (2010-2016) |
SKU  | RVS-Transit-NC |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 520 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 TO 1.0 |
| Minimum Scene Illumination | 0.3 Lux |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | -30°C ~ +80°C |
| S/N Ratio | More Than 48dB |
| Video Output | 1VP.P 75 OHM |
| Weatherproof | IP68 |
| Synchronization | INTERNAL SYNCHRONIZATION |
| Angle of View | 130° |
| Auto Gain Control | Yes |
