RVS Systems RVS-Transit-06 520 TVL Backup Camera for Ford Transit-Connect Vehicles, 16' Cable, RCA Adapter
SKU
RVS-Transit-06
Model No
RVS-Transit-06
$141.50
Product Highlights

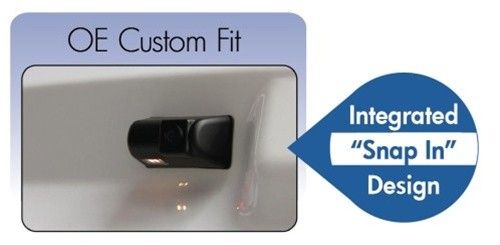

- OEM installation - installs on top of license plate
- 130° ultra-wide-angle view with excellent night vision
- Completely waterproof with an IP68 rating
- Comes included with light for license plate
- Fits transit-Connect vans from 2010-2016
Speak to an expert

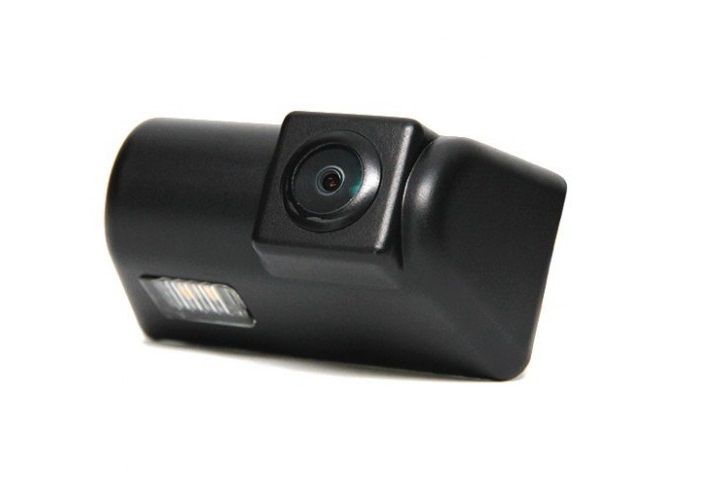

The RVS-Transit-06 from RVS Systems is a Ford Transit-Connect backup camera that snaps into the existing light placement above the license plate for a sleek OEM look. The Ford Transit backup camera boasts a 130 Degree Sony® CCD sensor which displays a rich color picture both day and night. The camera has excellent night vision which works great in low light settings. Camera comes with 16' cable, RCA adapter, 5 pin male to RCA male adapter, female power cable for RCA adapters.
RVS Systems RVS-Transit-06 Camera Features
- OEM installation: Installs on top of license plate for a factory-integrated look.
- 130° ultra-wide-angle view: Provides enhanced visibility and excellent night vision, ensuring safe maneuvers.
- Completely waterproof: With an IP68 rating, it is built to withstand harsh weather conditions.
- License plate light included: Conveniently brightens the area for added safety and visibility.
- Vehicle compatibility: Fits Transit-Connect vans from 2010-2016, ensuring a perfect fit for these models.
Detailed Specifications for RVS Systems RVS-Transit-06
| Camera Type | 520 TVL Backup Camera |
| Sensor Type | Sony® CCD Sensor |
| Viewing Angle | 130 Degrees |
| Night Vision | Yes, excellent performance in low light |

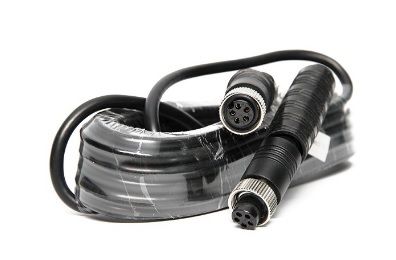

| Cable Length | 16 Feet |
| Water Resistance | IP68 Rating |
| Adapter Types | RCA adapter, 5 pin male to RCA male |

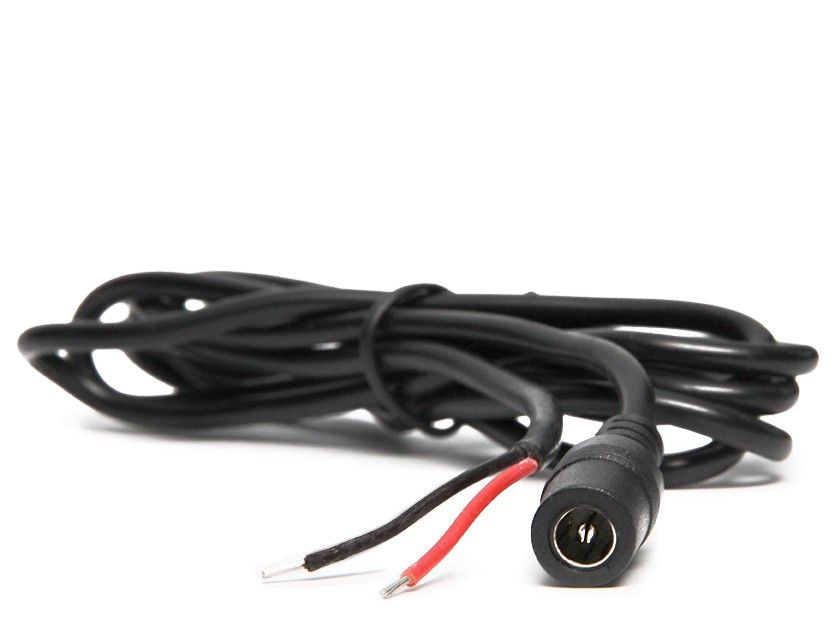

| Power Cable | Female power cable for RCA adapters |
| Compatible Vehicles | Ford Transit-Connect 2010-2016 |
SKU  | RVS-Transit-06 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 520 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 TO 1.0 |
| Minimum Scene Illumination | 0.3 Lux |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | -30°C ~ +80°C |
| S/N Ratio | More Than 48dB |
| Video Output | 1VP.P 75 OHM |
| Weatherproof | IP68 |
| Synchronization | INTERNAL SYNCHRONIZATION |
| Angle of View | 130° |
| Auto Gain Control | Yes |
