RVS Systems RVS-Transit-05 520 TVL Backup Camera for Ford Transit-Connect Vehicles, 33' Cable, RCA Adapter
SKU
RVS-Transit-05
Model No
RVS-Transit-05
$141.50
Product Highlights
- OEM installation - installs on top of license plate
- 130° ultra-wide-angle view with excellent night vision
- Completely waterproof with an IP68 rating
- Comes included with light for license plate
- Fits transit-Connect vans from 2010-2016
Speak to an expert

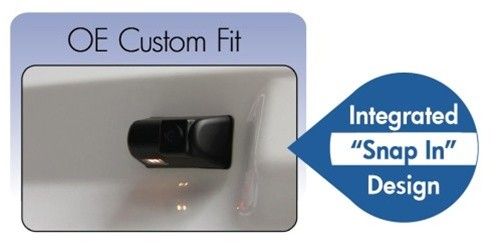

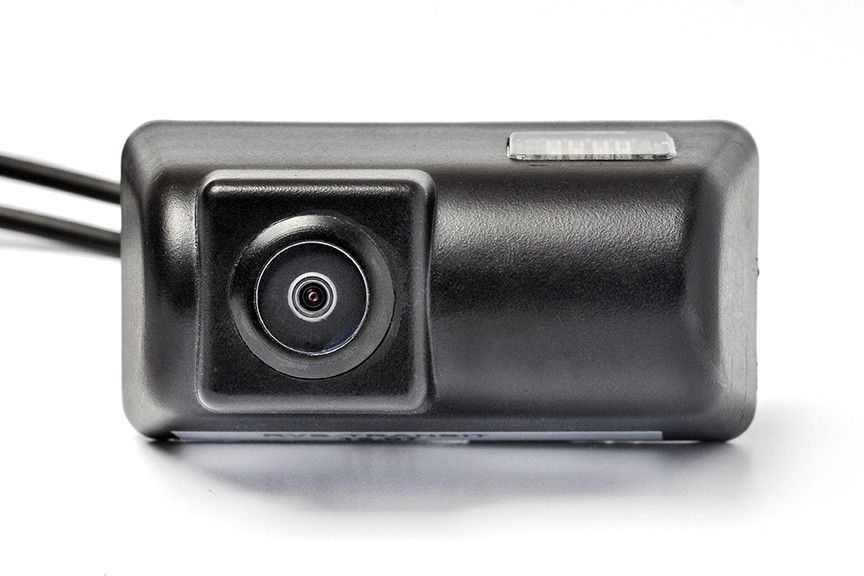

The RVS-Transit-05 from RVS Systems is a Ford Transit-Connect backup camera that snaps into the existing light placement above the license plate for a sleek OEM look. The Ford Transit backup camera boasts a 130 Degree Sony® CCD sensor which displays a rich color picture both day and night. The camera has excellent night vision which works great in low light settings. Camera comes with 33' cable, RCA adapter, 5 pin male to RCA male adapter, female power cable for RCA adapters.
RVS Systems RVS-Transit-05 Camera Features
- OEM installation: Installs on top of the license plate for a seamless appearance.
- 130° ultra-wide-angle view: Provides excellent night vision, allowing for better visibility in low light conditions.
- Completely waterproof: IP68 rating ensures durability and reliability in various weather conditions.
- License plate light included: Enhances visibility of the license plate at night.
- Compatibility: Fits Transit-Connect vans from 2010-2016, providing a custom fit.
Detailed Specifications for RVS-Transit-05
| Camera Type | Backup Camera |
| Sensor Type | Sony® CCD |
| Field of View | 130 Degrees |
| Cable Length | 33 Feet |
| Waterproof Rating | IP68 |
| RCA Adapter Included | Yes |
| Vehicle Compatibility | Ford Transit-Connect (2010-2016) |
SKU  | RVS-Transit-05 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 520 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 TO 1.0 |
| Minimum Scene Illumination | 0.3 Lux |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | -30°C ~ +80°C |
| S/N Ratio | More Than 48dB |
| Video Output | 1VP.P 75 OHM |
| Weatherproof | IP68 |
| Synchronization | INTERNAL SYNCHRONIZATION |
| Angle of View | 130° |
| Auto Gain Control | Yes |
