RVS Systems RVS-Transit-04 520 TVL Backup Camera for Ford Transit-Connect Vehicles, 66' Cable, RCA Adapter
SKU
RVS-Transit-04
Model No
RVS-Transit-04
$119.99
Product Highlights

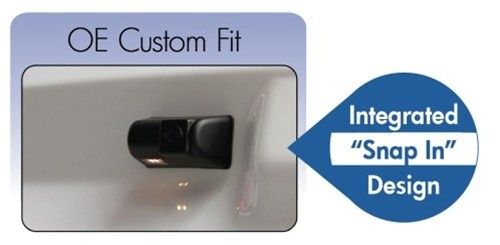

- OEM installation - installs on top of license plate
- 170° ultra-wide-angle view with excellent night vision
- Completely waterproof with an IP68 rating
- Comes included with light for license plate
- Fits transit-Connect vans from 2010-2016
Speak to an expert

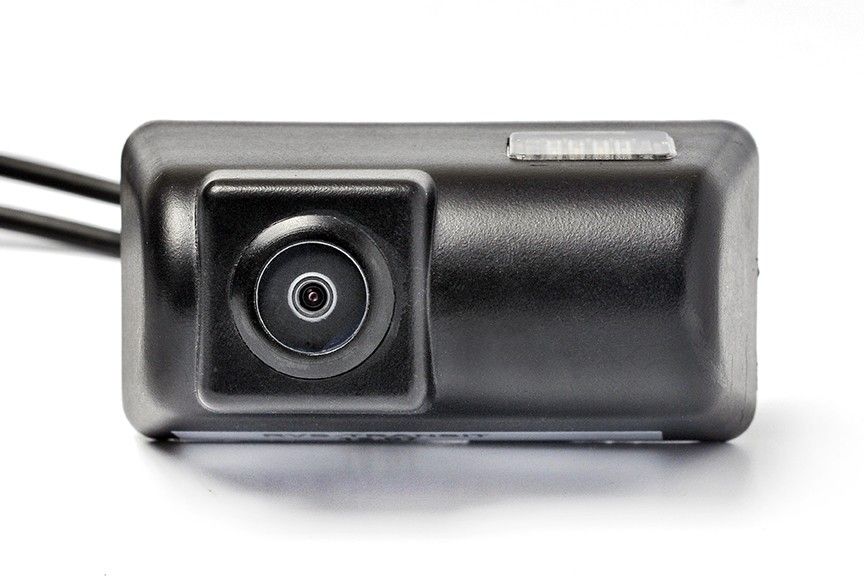

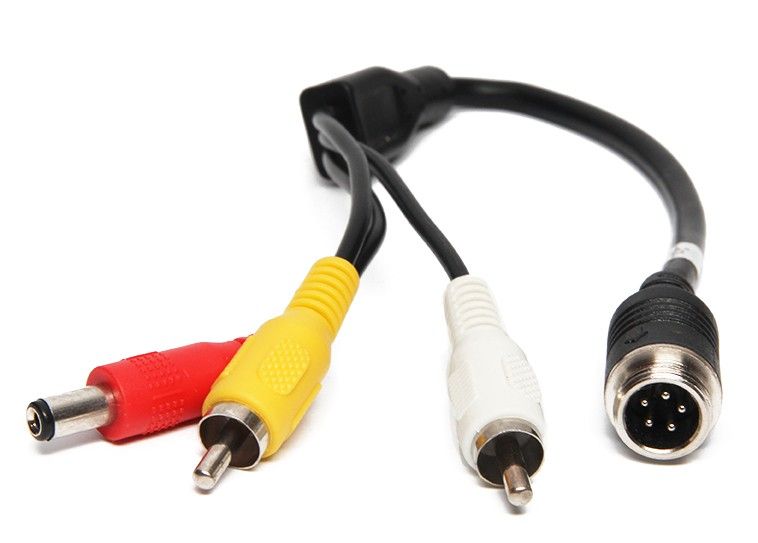

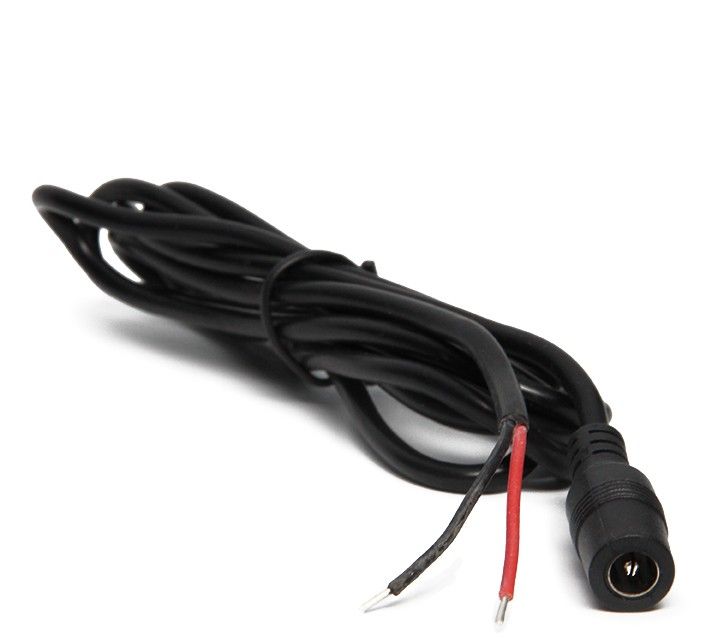

This Ford Transit-Connect backup camera snaps into the existing light placement above the license plate for a sleek OEM look. The Ford Transit backup camera boasts a 170 Degree Sony CCD sensor which displays a rich color picture both day and night. The camera has excellent night vision which works great in low light settings. Camera comes with 66' Cable, RCA Adapter, 5 pin male to RCA male adapter, female power cable for RCA adapters.
RVS Systems RVS-Transit-04 Camera Features
- OEM installation: installs seamlessly on top of the license plate for a factory-like appearance.
- 170° ultra-wide-angle view: offers a broader field of vision, ensuring better visibility when reversing.
- Excellent night vision: equipped with advanced technology to provide clear images in low light conditions.
- Completely waterproof: features an IP68 rating, making it durable and reliable in harsh weather conditions.
- Includes license plate light: provides additional illumination for improved visibility at night.
- Vehicle compatibility: specifically designed to fit Ford Transit-Connect vans from 2010-2016.
RVS Systems RVS-Transit-04 Detailed Specifications
| Type | Backup Camera |
| Image Sensor | Sony CCD |
| Resolution | 520 TVL |
| Field of View | 170 Degrees |
| Waterproof Rating | IP68 |
| Cable Length | 66 Feet |
| Compatibility | Ford Transit-Connect 2010-2016 |
| Included Accessories | RCA Adapter, 5 Pin Male to RCA Male Adapter, Female Power Cable |
SKU  | RVS-Transit-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 520 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 TO 1.0 |
| Minimum Scene Illumination | 0.3 Lux |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | –30°C ~ +80°C |
| Dimensions (W x H) | 1.25" (H) x 2.25" (L) x 1.50 "(D) |
| S/N Ratio | MORE THAN 48DB |
| Video Output | 1.0Vp-p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| Auto Gain Control | Yes |
