RVS Systems RVS-Pickup 480 TVL Analog Outdoor Backup Camera System For Pickup Trucks

SKU
RVS-Pickup
Model No
RVS-082587
$231.59
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4.3" Mirror Monitor
  • Distance Grid Lines for Backing Up Reference
  • 170° Ultra Wide Viewing Angle
  • Backup Camera Mounts Flush Against Vehicle
  • Completely Waterproof Camera - IP68

RVS Systems RVS-Pickup Backup Camera System Features

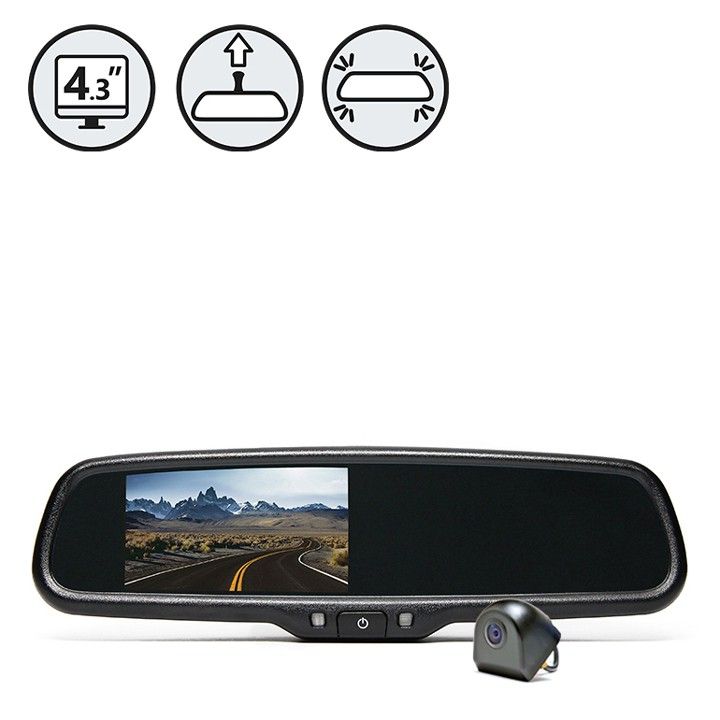

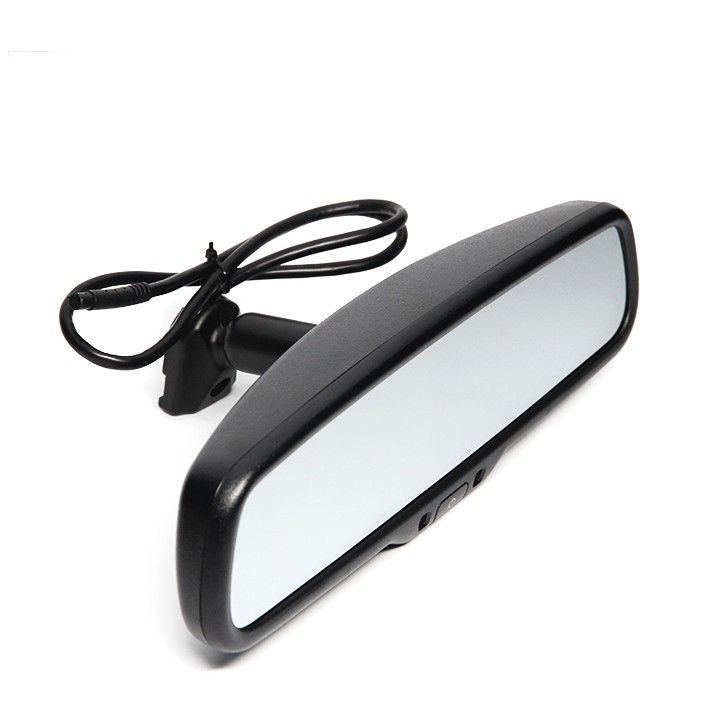

Backup camera system for your pickup truck, look no further than the RVS-Pickup. This system features the legendary G-Series Monitor and a compact camera which, despite its small size, is powerfully built to withstand all weather conditions. The G-Series monitor replaces the existing rear view mirror for a clean look. A clip-on version of the monitor is also available (See item options on the right). Its screen is 4.3 inches wide and pushed to the left of the mirror to be more easily viewed by the driver. For an absolute perfect backing up experience, this monitor comes with adjustable grid lines, allowing you to adjust the grid lines to be completely accurate regardless of where you mount the camera. The tailgate camera is composed of an MT9V139 sensor and a lens with a 170° viewing angle with excellent night vision. The rear view camera is completely weatherproof with an IP68 rating, strong and reliable, shock resistant with a 10G vibration rating (highest in the industry) and comes with a full year warranty. The tailgate camera mounts to the handle and looks OEM and flush with the vehicle.

Features

  • 4.3" Mirror Monitor: Provides a clear display for better visibility while reversing.
  • Distance Grid Lines for Backing Up Reference: Helps ensure precise parking and maneuvering.
  • 170° Ultra Wide Viewing Angle: Captures a larger field of view, minimizing blind spots.
  • Backup Camera Mounts Flush Against Vehicle: Offers an OEM look without compromising aesthetics.
  • Completely Waterproof Camera - IP68: Ensures durability and performance in all weather conditions.

RVS Systems RVS-Pickup Detailed Specifications

FeatureDetails
Monitor Size4.3 inches
Camera SensorMT9V139
Viewing Angle170°
Weatherproof RatingIP68
Vibration Rating10G
Warranty1 year
SKU  RVS-Pickup
Features  Auto Gain Control, Automatic White Balance, Day/Night, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    480 TVL
Sensor Option    1/4" Image Sensor
Infrared Distance    Non Infrared
Durability    Weather Resistant
Mount Type  In-Ceiling
Minimum Scene Illumination  0.5 Lux
Operating Temperature    -20°C ~ +75°C
Dimensions (W x H)  Camera: 1" (H) x 1.25" (L) x 1.16" (D), Mirror Monitor: 3" (H) x 10.25" (L) x 1" (D)
Power Consumption  8W
S/N Ratio  48dB
Signal System    PAL / NTSC
Video Output    1.0Vp-p 75 Ω
Weatherproof    IP68
Synchronization  Internal Synchronization
Angle of View    170°
Automatic White Balance    Auto
Auto Gain Control    Auto
Automatic White Balance    Yes
Day/Night    Yes
Auto Gain Control    Yes
