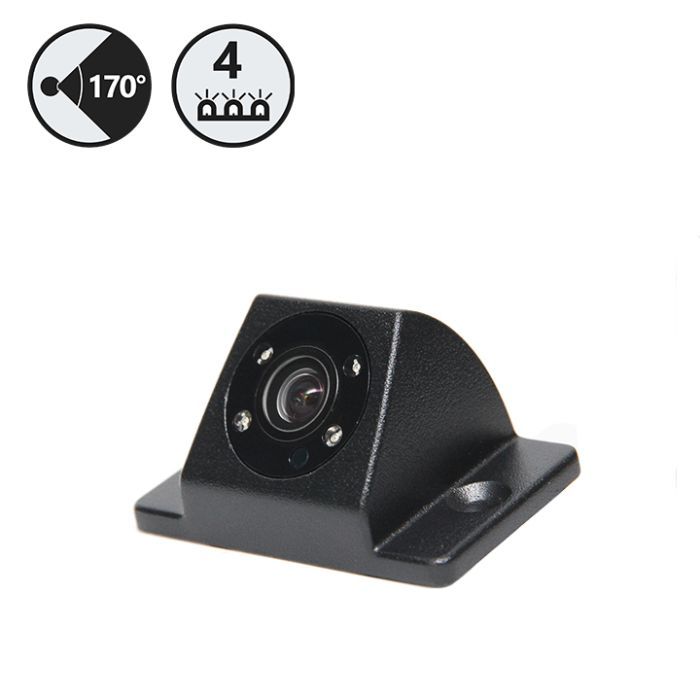

RVS Systems RVS-MV3R-IR Surface Mount Backup Camera with Infrared Illuminators
SKU
RVS-MV3R-IR
Model No
RVS-MV3R-IR
$186.55
Product Highlights
- Surface Mounts on back of vehicle
- 170° all-encompassing viewing angle
- High quality image - 620 TV lines
- 4 infra-red lights - excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

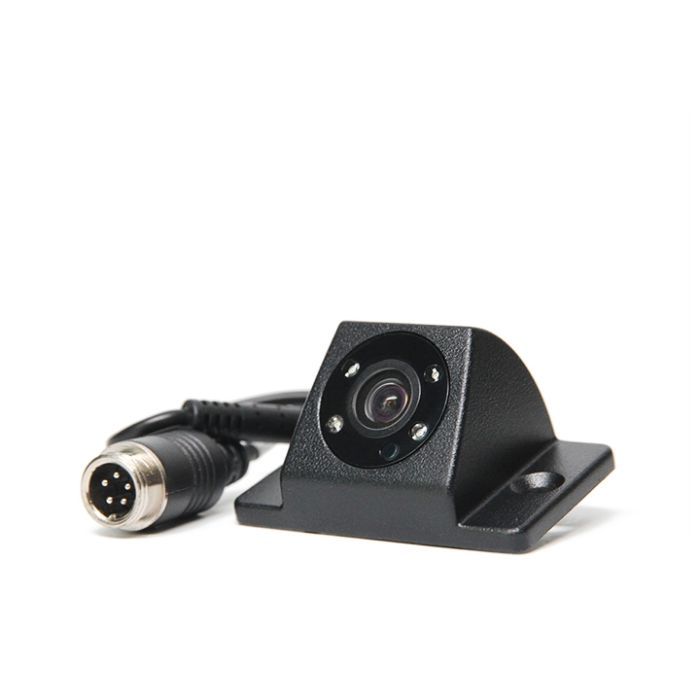

This compact backup camera easily mounts at the back of the vehicle and provides a wide viewing angle behind the vehicle. With infra-red lights, this backup camera provides stunning picture at night as well as day allowing up to 30 feet of vision. With 600 TV Lines, the picture quality this camera provides is super sharp and a completely waterproof encasing allows it to operate in all weather conditions. Camera comes with cable (select length from dropdown), the option for a 5 Pin connection (to connect to our systems) or an RCA adapter (to connect to an external display).
RVS Systems RVS-MV3R-IR Backup Camera Features
- Surface Mount: Easily mounts to the back of the vehicle for convenience and optimal placement.
- 170° Viewing Angle: Offers a wide view behind the vehicle to minimize blind spots, enhancing safety during reversing.
- High Quality Image: 620 TV lines provide super sharp picture quality, ensuring clear visibility of obstacles.
- Infra-red Night Vision: Equipped with 4 infra-red lights for excellent night visibility, enhancing safety in low-light conditions.
- Waterproof Design: Rated IP68, this camera is completely waterproof, making it suitable for all weather conditions.
Detailed Specifications for RVS Systems RVS-MV3R-IR
| Feature | Details |
|---|---|
| Model | RVS-MV3R-IR |
| Mount Type | Surface Mount |
| Viewing Angle | 170° |
| Resolution | 620 TV lines |
| Night Vision | 4 infra-red lights |
| Waterproof Rating | IP68 |
| Max Vision Distance | 30 feet |
| Connection Options | 5 Pin connection or RCA adapter |
SKU  | RVS-MV3R-IR |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Mount Type | Ceiling, Wall |
| Operating Temperature | –40°C ~ +75°C |

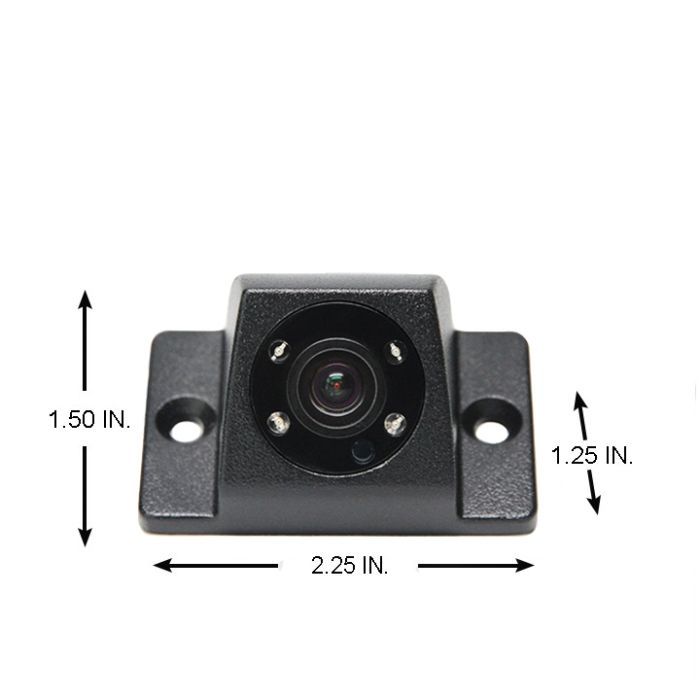

| Dimensions (W x H) | 1.50" (H) x 2.25" (L) x 1.25" (D) |
| S/N Ratio | More than 48 dB |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Auto Gain Control | Auto |
| Auto Gain Control | Yes |
