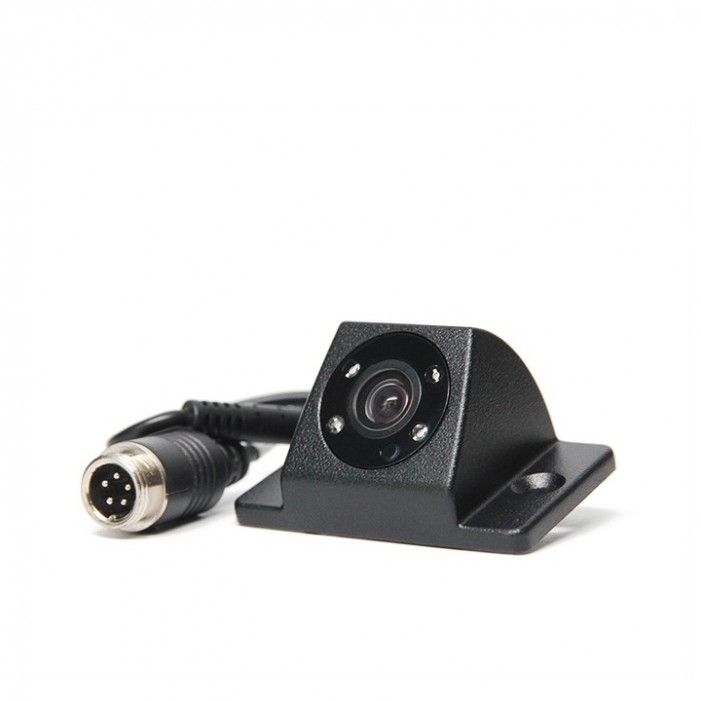

RVS Systems RVS-MV3R-IR-02 Surface Mount Right Side Camera with IR, 33' Cable
SKU
RVS-MV3R-IR-02
Model No
RVS-MV3R-IR-02
$141.50
Product Highlights
- Surface Mounts on right of vehicle
- 170° all-encompassing viewing angle
- High quality image - 620 TV lines
- 4 infra-red lights - excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert
This compact right side camera easily mounts at the back of the vehicle and provides a wide viewing angle behind the vehicle. With infra-red lights, this backup camera provides stunning picture at night as well as day allowing up to 30 feet of vision. With 620 TV Lines, the picture quality this camera provides is super sharp and a completely waterproof encasing allows it to operate in all weather conditions. Camera comes with a 33' Cable.
RVS Systems RVS-MV3R-IR-02 Camera Features
- Surface Mount: Easily installs on the right side of the vehicle for optimal positioning and visibility.
- Wide Viewing Angle: Features a 170° all-encompassing viewing angle to minimize blind spots for safer driving.
- High Image Quality: With 620 TV lines, receive clear and sharp images that enhance visibility.
- Night Vision Capability: Equipped with 4 infra-red lights, providing excellent visibility in low-light conditions.
- Weather Resistant: Boasts an IP68 rating, making it completely waterproof for reliable performance in all weather conditions.
RVS Systems RVS-MV3R-IR-02 Detailed Specifications
| Camera Type | Surface Mount Right Side Camera |
| Viewing Angle | 170° |
| Image Quality | 620 TV Lines |
| Night Vision | 4 Infra-red Lights |
| Waterproof Rating | IP68 |
| Length of Cable | 33 Feet |
SKU  | RVS-MV3R-IR-02 |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Bracket Required |
| Voltage | 12vDC |
| IR Distance | 9.14m / 30ft |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | -40°C ~ +75°C |
| S/N Ratio | More than 48dB |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| IR LEDs | 4 Infra-Red Lights |
| Day/Night | Yes |
| Auto Gain Control | Yes |
