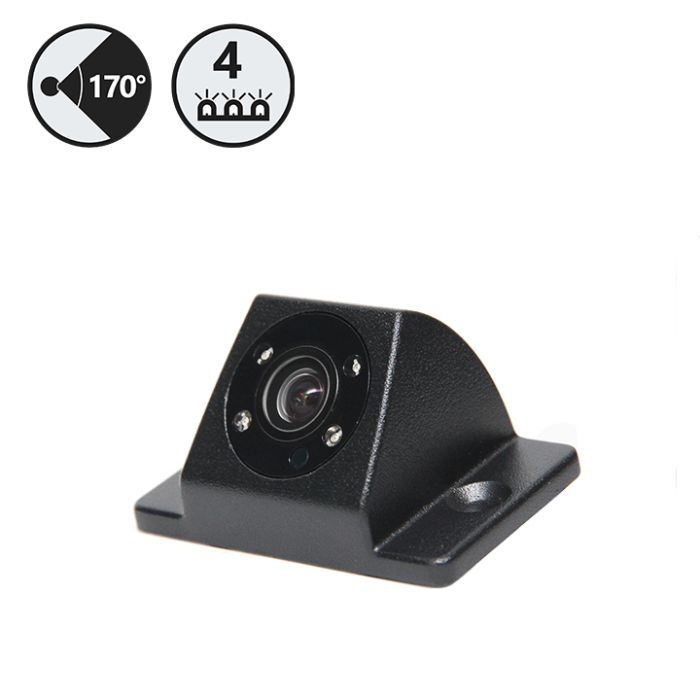

RVS Systems RVS-MV3L-IR Surface Mount Backup Camera with Infrared Illuminators
SKU
RVS-MV3L-IR
Model No
RVS-MV3L-IR
$141.30
Product Highlights
- Surface Mounts on back of vehicle
- 170° all-encompassing viewing angle
- High quality image - 620 TV lines
- 4 infra-red lights - excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert
RVS Systems RVS-MV3L-IR Backup Camera Features
This compact backup camera easily mounts at the back of the vehicle and provides a wide viewing angle behind the vehicle. With infra-red lights, this backup camera provides stunning picture at night as well as day allowing up to 30 feet of vision. With 600 TV Lines, the picture quality this camera provides is super sharp and a completely waterproof encasing allows it to operate in all weather conditions. Camera comes with cable (select length from dropdown), the option for a 5 Pin connection (to connect to our systems) or an RCA adapter (to connect to an external display).
Features
- Surface Mount: Surface mounts easily on the back of the vehicle for convenient installation.
- Viewing Angle: 170° all-encompassing viewing angle for maximum visibility and safety.
- Image Quality: High-quality image with 600 TV lines, ensuring clarity and detail.
- Night Vision: Equipped with 4 infra-red lights for excellent night vision up to 30 feet.
- Waterproof Rating: Completely waterproof with IP68 rating, making it durable in any weather condition.
RVS Systems RVS-MV3L-IR Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | Surface Mount Backup Camera |
| Viewing Angle | 170 Degrees |
| Image Resolution | 600 TV Lines |
| Night Vision | 4 Infra-red Lights |
| Waterproof Rating | IP68 |
| Connection Options | 5 Pin or RCA Adapter |
| Cable Length Options | Selectable from dropdown |
SKU  | RVS-MV3L-IR |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Mount Type | Ceiling, Wall |
| Operating Temperature | –40°C ~ +75°C |

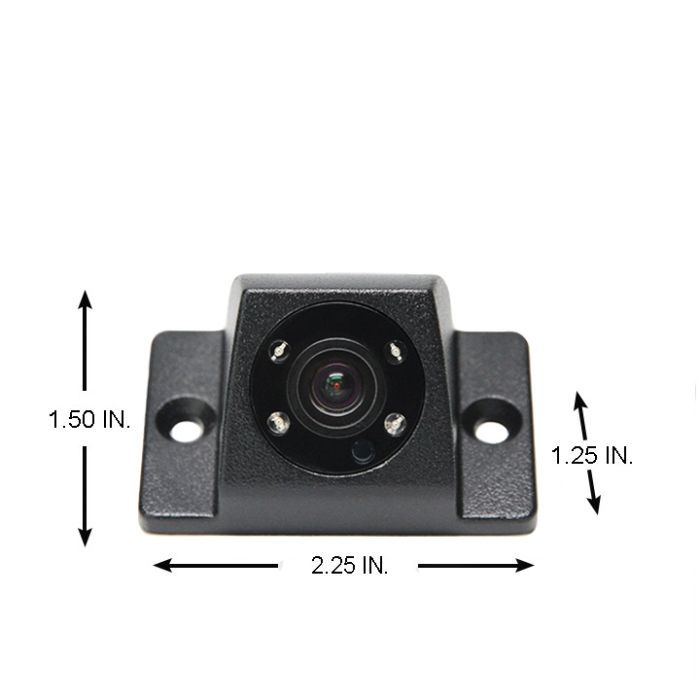

| Dimensions (W x H) | 1.50" (H) x 2.25" (L) x 1.25" (D) |
| S/N Ratio | More than 48 dB |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Auto Gain Control | Auto |
| Auto Gain Control | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
RVS-MV3L-IR-Specsheet
