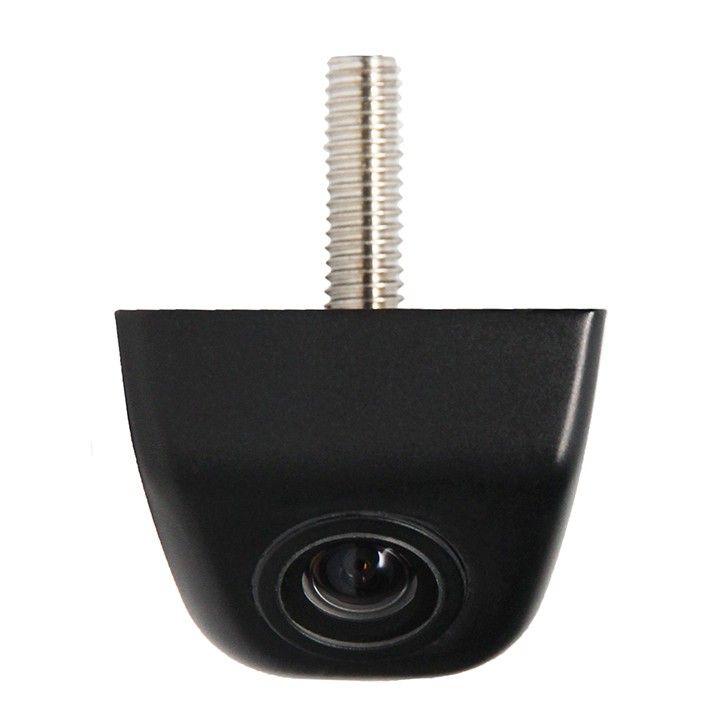

RVS Systems RVS-MV3077N Backup Camera System With Three Camera Setup (MV1 Cameras)
SKU
RVS-MV3077N
Model No
RVS-0825MV3
$524.05
Product Highlights
- Backup Camera System with Three Cameras (2 Side, 1 Backup)
- 7" or 9" LED Digital Panel Color Display
- 170° Ultra Wide Viewing Angle
- MV1 Cameras are Completely Waterproof
- Optional Quad View Upgrade
Speak to an expert
This RVS Systems RVS-MV3077N Backup Camera System offers a comprehensive solution for enhanced visibility and safety while reversing. With a clear 7" LED digital monitor and three strategically positioned MV1 cameras, including two side cameras for blind spot monitoring and one rear camera, this system ensures you have a full view of your surroundings. Built to withstand the elements with an IP68 weatherproof rating, it delivers reliable performance in various conditions.
RVS Systems RVS-MV3077N Camera Features
- Backup Camera System: Includes two side cameras and one backup camera to provide a complete view while reversing.
- 7" LED Digital Monitor: Features a vibrant color display with distance grid lines for easier parking and maneuvering.
- 170° Ultra Wide Viewing Angle: Expands your field of vision for increased safety and awareness of your surroundings.
- Waterproof MV1 Cameras: Ensures durability and performance in all weather conditions with an IP68 rating.
- Optional Quad View Upgrade: Allows for simultaneous viewing of all cameras, enhancing visibility and safety.
RVS Systems RVS-MV3077N Detailed Specifications
| Feature | Details |
|---|---|
| Monitor Size | 7" or 9" LED Digital Panel |
| Camera Configuration | Two (2) Side Cameras, One (1) Backup Camera |
| Viewing Angle | 170° Ultra Wide |
| Weatherproof Rating | IP68 |
| Camera Type | MV1 Cameras |
| Upgrade Options | Optional Quad View |
SKU  | RVS-MV3077N |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/4 Inch |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +50°C |
| Dimensions (W x H) | 3.25" (H) x 1.25" (L) x 1.40: (D) |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | PAL/NTSC |
| Video Output | 1Vp-p, 75Ω |
| Synchronization | Internal |
| Angle of View | 170° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
