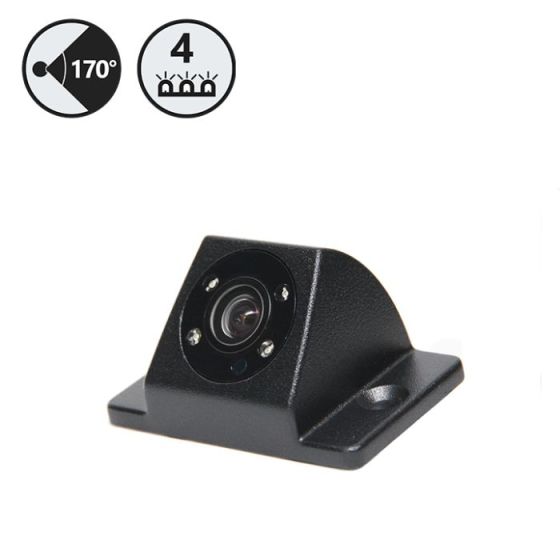

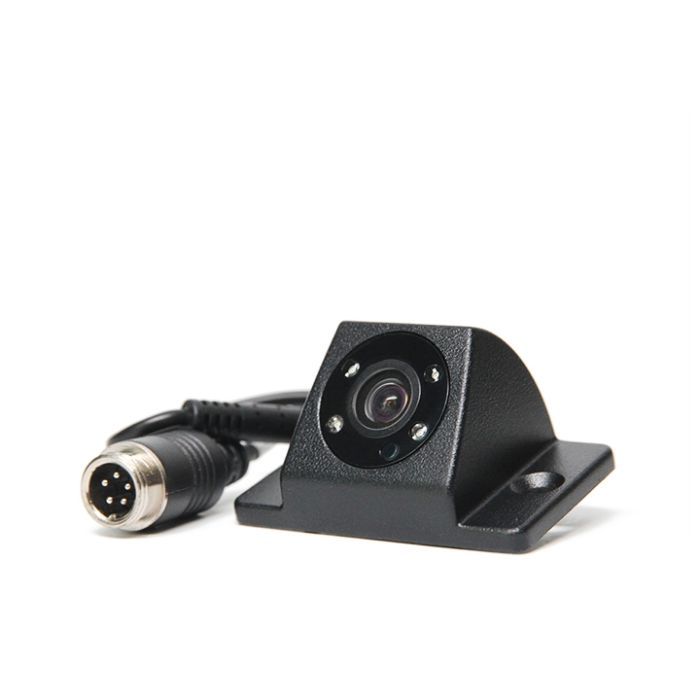

RVS Systems RVS-MV3-IR Surface Mount Backup Camera with Infrared Illuminators

SKU
RVS-MV3-IR
Model No
RVS-MV3-IR
$144.11
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Surface Mounts on back of vehicle
  • 170° all-encompassing viewing angle
  • High quality image - 620 TV lines
  • 4 infra-red lights - excellent night vision
  • Completely waterproof - IP68 rating

RVS Systems RVS-MV3-IR Backup Camera Features

This compact backup camera easily mounts at the back of the vehicle and provides a wide viewing angle behind the vehicle. With infra-red lights, this backup camera provides stunning picture at night as well as day allowing up to 30 feet of vision. With 600 TV Lines, the picture quality this camera provides is super sharp and a completely waterproof encasing allows it to operate in all weather conditions. Camera comes with cable (select length from dropdown), the option for a 5 Pin connection (to connect to our systems) or an RCA adapter (to connect to an external display).

Features

  • Surface Mounting: Easily installs on the back of the vehicle for optimal rear visibility.
  • 170° All-Encompassing Viewing Angle: Provides a wide field of vision, ensuring you can see more of what's behind you.
  • High-Quality Image - 620 TV Lines: Delivers sharp and clear visuals for enhanced safety when reversing.
  • 4 Infra-Red Lights: Allows for excellent night vision, ensuring safety in low-light conditions.
  • Completely Waterproof - IP68 Rating: Designed for all weather conditions, ensuring durability and reliability in any environment.

Detailed Specifications for RVS Systems RVS-MV3-IR

Mounting TypeSurface Mount
Viewing Angle170°
Image Quality620 TV Lines
Infrared Lights4
Waterproof RatingIP68
Connection Options5 Pin connection or RCA adapter
Cable LengthSelectable from dropdown
SKU  RVS-MV3-IR
Features  Auto Gain Control
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Lens Type    Fixed
Lens Size    2.1mm
Mount Type  Ceiling, Wall
Operating Temperature    –40°C ~ +75°C
Dimensions (W x H)  1.50" (H) x 2.25" (L) x 1.25" (D)
S/N Ratio  More than 48 dB
Weatherproof    IP68
Synchronization  Internal Synchronization
Angle of View    170°
Auto Gain Control    Auto
Auto Gain Control    Yes
