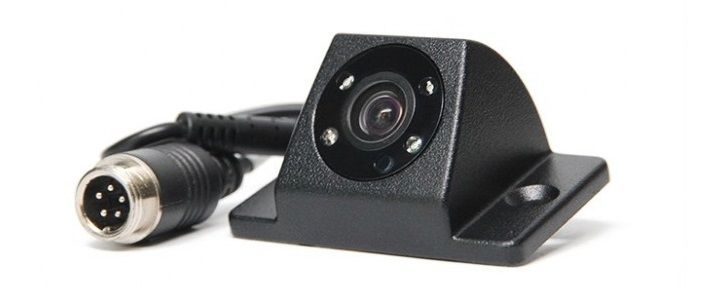

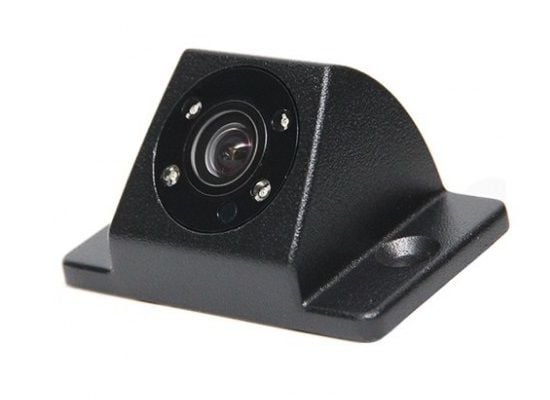

RVS Systems RVS-MV3-IR-04 Surface Mount Backup Camera with IR, 33' Cable, RCA Adapter, Female Power Cable for RCA Adapter
SKU
RVS-MV3-IR-04
Model No
RVS-MV3-IR-04
$141.50
Product Highlights
- Surface Mounts on back of vehicle
- 170° all-encompassing viewing angle
- High quality image - 620 TV lines
- 4 infra-red lights - excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert
RVS Systems RVS-MV3-IR-04 Backup Camera Features
This compact backup camera easily mounts at the back of the vehicle and provides a wide viewing angle behind the vehicle. With infra-red lights, this backup camera provides stunning picture at night as well as day allowing up to 30 feet of vision. With 620 TV Lines, the picture quality this camera provides is super sharp and a completely waterproof encasing allows it to operate in all weather conditions. Camera comes with 33' Cable, Female Power Cable for RCA Adapters, 5 Pin Male To RCA Male Adapter.
Features
- Surface Mounts: Easily attaches to the back of your vehicle for quick installation.
- Wide Viewing Angle: 170° all-encompassing viewing angle enhances visibility while reversing.
- High Quality Image: 620 TV lines ensure clarity and sharpness of the image on display.
- Night Vision: 4 infra-red lights provide excellent visibility even in low-light conditions.
- Waterproof Design: IP68 rating guarantees performance in all weather conditions.
RVS Systems RVS-MV3-IR-04 Detailed Specifications
| Mounting Type | Surface mount |
| Viewing Angle | 170° |
| Image Quality | 620 TV Lines |
| Infra-red Lights | 4 |
| Waterproof Rating | IP68 |
| Cable Length | 33' |

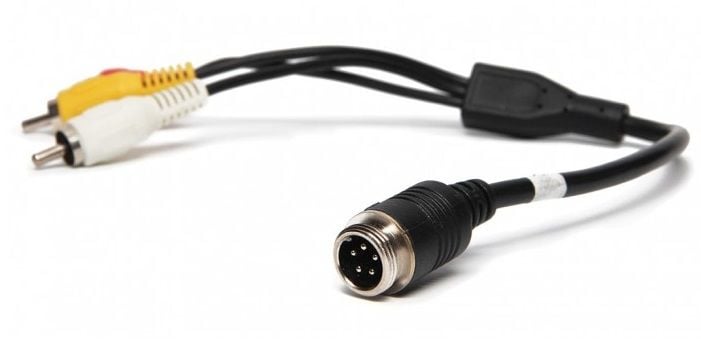

| Included Adapters | Female Power Cable for RCA, 5 Pin Male To RCA Male Adapter |
SKU  | RVS-MV3-IR-04 |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Bracket Required |
| Voltage | 12vDC |
| IR Distance | 9.14m / 30ft |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | -40°C ~ +75°C |
| S/N Ratio | More than 48dB |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| IR LEDs | 4 Infra-Red Lights |
| Day/Night | Yes |
| Auto Gain Control | Yes |
