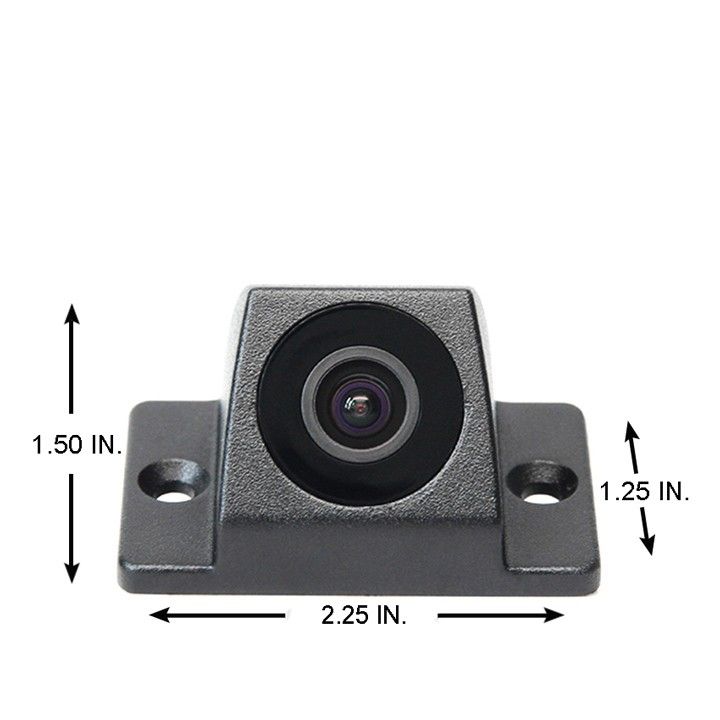

RVS Systems RVS-MV3-AHD-03 Analog HD Surface Mount Backup Camera, 16' Camera Cable
SKU
RVS-MV3-AHD-03
Model No
RVS-MV3-AHD-03
$181.89
Product Highlights
- Full AHD Camera only Compatible with Mobile DVR's
- Surface Mounts on Back of Vehicle
- 170° All-Encompassing Viewing Angle
- Completely Waterproof IP68 Rating
Speak to an expert
The RVS-MV3-AHD is a compact analog HD backup camera optimized for enhancing vehicle safety. With a resolution of 1280 x 720, this camera ensures crystal-clear images whether it's day or night, thanks to its infra-red capabilities. Its wide 170° viewing angle and robust waterproof design make it a reliable choice for any weather condition.
RVS Systems RVS-MV3-AHD-03 Camera Features
- Full AHD Camera: Only compatible with Mobile DVRs, ensuring high-quality video transmission.
- Surface Mounting: Easily mounts at the back of the vehicle for optimal viewing.
- 170° Viewing Angle: Provides an all-encompassing view behind the vehicle, reducing blind spots.
- Waterproof IP68 Rating: Designed to operate in all weather conditions, ensuring durability and longevity.
RVS Systems RVS-MV3-AHD-03 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Resolution | 1280 (H) × 720 (V) |
| Viewing Angle | 170° |
| Infra-red Capability | Night vision up to 30 feet |
| Waterproof Rating | IP68 |
| Included Camera Cable Length | 16' (selectable from dropdown) |
SKU  | RVS-MV3-AHD-03 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | HD-AHD |
| Resolution | 720p |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Durability | Weather Resistant |
| Mount Type | Bracket Required |
| Voltage | 12vDC |
| Operating Temperature | -40°C ~ +75°C |
| S/N Ratio | More than 48dB |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Auto Gain Control | Yes |
