RVS Systems RVS-MV1-L-01 150° 700 TVL MV1 Left Side Camera, 10' Cable
SKU
RVS-MV1-L-01
Model No
RVS-MV1-L-01
$144.11
Product Highlights
- Mounts flush against the vehicle
- 150° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

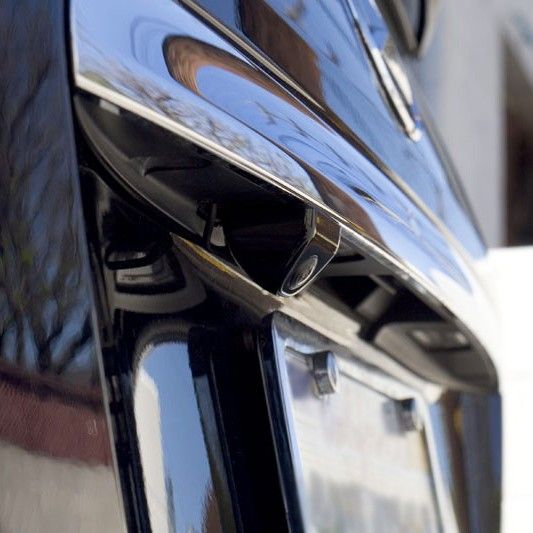

The RVS-MV1-L-01 from RVS Systems is an MV1 Left Side Backup Camera which is mount either to the side of the vehicle as a side camera or on the back of a vehicle as a backup camera. Its small size and OEM look make this a very popular camera choice. The camera is very easy to install and makes hitching and backing up easy.
RVS Systems RVS-MV1-L-01 Camera Features
- Mounts flush against the vehicle: This provides a seamless appearance and reduces the risk of damage to the camera during daily use.
- 150° all-encompassing angle: Offers a wide field of view, ensuring drivers have a better perspective on their surroundings.
- Compact design: The small size allows for discreet installation while maintaining functionality.
- Excellent night vision: Enhances visibility in low light conditions, ensuring safety during nighttime driving.
- Completely waterproof - IP68 rating: Guarantees durability and reliability under various weather conditions.
Detailed Specifications for RVS Systems RVS-MV1-L-01
| Feature | Detail |
| Camera Type | Left Side Backup Camera |
| Mounting Type | Flush Mount |
| Viewing Angle | 150 Degrees |
| Resolution | 700 TVL |
| Night Vision | Yes |
| Waterproof Rating | IP68 |
| Cable Length | 10 Feet |
| OEM Look | Yes |
SKU  | RVS-MV1-L-01 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant, Wide Dynamic Range |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Lens Type | Fixed |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Gamma Correction | R=0.45-1.0 |
| Image Device | 1/3" 1099 Color Camera |
| Image Pixels-Effective | 976 (H) x 496 (V) |
| Minimum Scene Illumination | 0.01 Lux |
| Operating Humidity | 90% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | 1.25" (H) x 1.25" (L) x 1.50" (D) |
| Power Consumption | <50mA@12V |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Angle of View | 150° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Automatic White Balance | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
