RVS Systems RVS-MV1-04 700 TVL MV1 Backup Camera, 66' Cable, RCA Adapter
SKU
RVS-MV1-04
Model No
RVS-MV1-04
$144.11
Product Highlights
- Mounts flush against vehicle
- 150° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

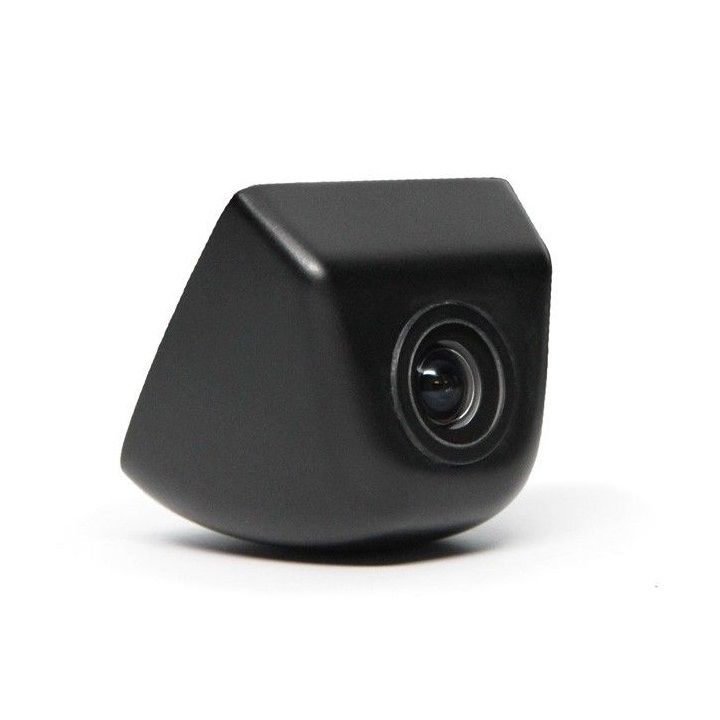

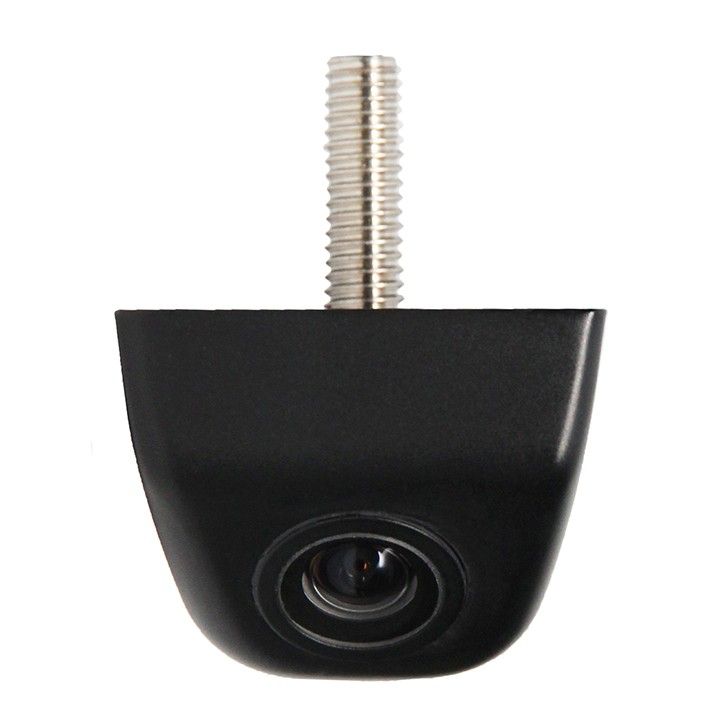

RVS Systems RVS-MV1-04 Backup Camera Features

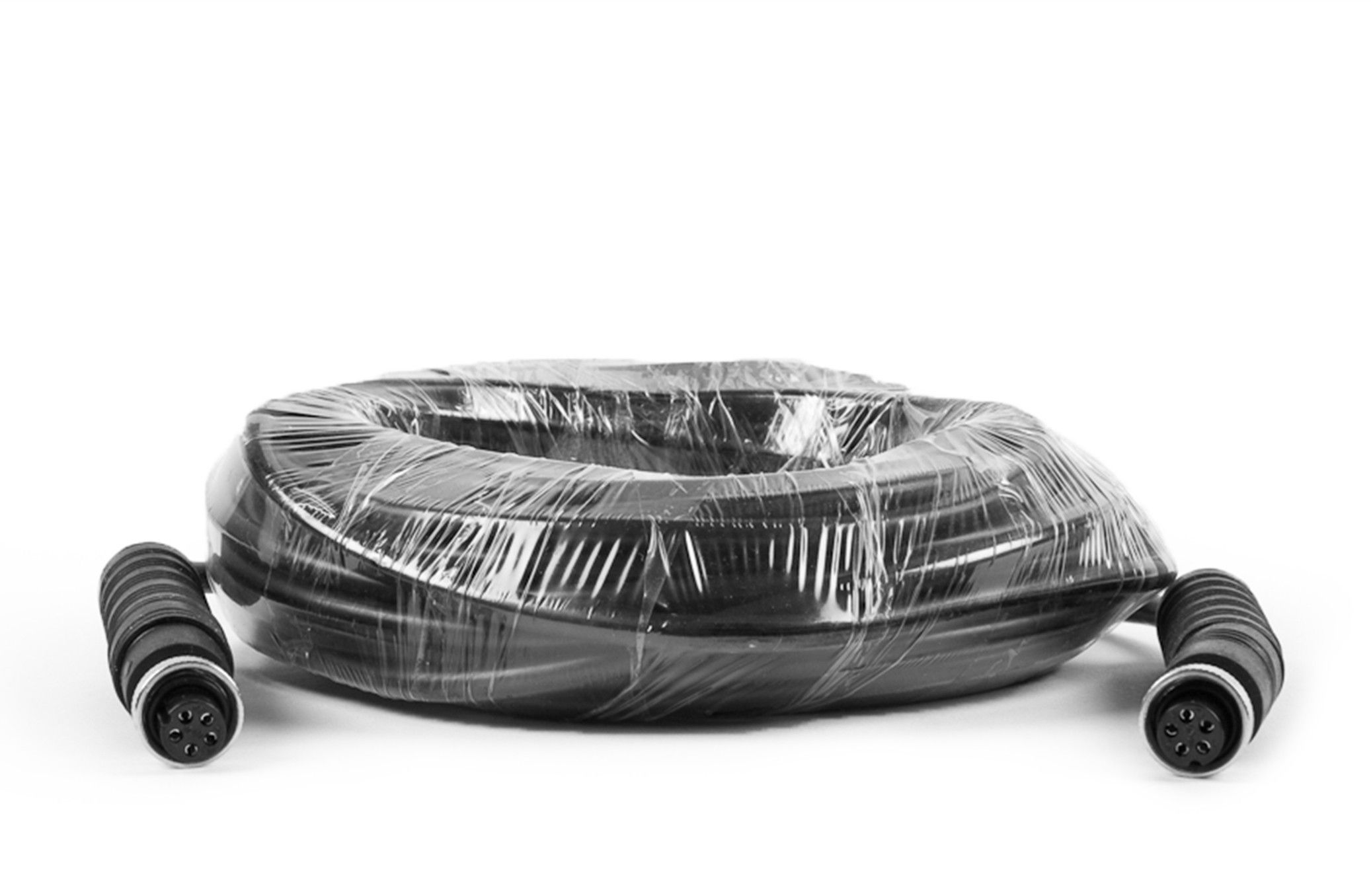

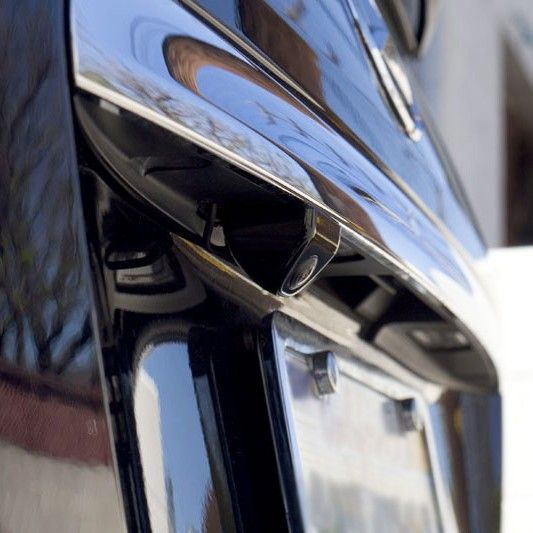

The MV1 Backup Camera can mount either to the side of the vehicle as a side camera or on the back of a vehicle as a backup camera. Its small size and OEM look make this a very popular camera choice. The camera is very easy to install and makes hitching and backing up easy. Camera comes with 66' cable, RCA adapter, 5 pin male to RCA male adapter, female power cable for RCA adapters.
Features
- Mounts flush against vehicle: ensures a clean and professional installation.
- 150° all-encompassing angle: provides a wide field of view for better visibility, enhancing safety while reversing.
- Compact design: blends seamlessly with vehicle aesthetics, maintaining an OEM appearance.
- Excellent night vision: allows for safe and secure operation in low-light conditions.
- Completely waterproof - IP68 rating: ensures durability and functionality in various weather conditions.
Detailed Specifications for RVS Systems RVS-MV1-04
| Camera Resolution | 700 TVL |
| Mounting Options | Side or rear installation |
| Cable Length | 66 feet |
| Connector Type | RCA adapter with 5 pin male to RCA male adapter |
| Waterproof Rating | IP68 |
| Viewing Angle | 150° |
SKU  | RVS-MV1-04 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant, Wide Dynamic Range |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Lens Type | Fixed |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Image Device | 1/3" 1099 Color Camera |
| Image Pixels-Effective | 976 (H) x 496(V) |
| Minimum Scene Illumination | 0.01 Lux |
| Operating Humidity | 90% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | 1.25" (H) x 1.25" (L) x 1.50" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal |
| Angle of View | 150° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Automatic White Balance | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
