RVS Systems RVS-L7-04 170° 500 TVL Left Side Surface Mounted Camera, 66' Cable, RCA Adapter
SKU
RVS-L7-04
Model No
RVS-L7-04
$127.19
Product Highlights
- Surface Mounts on the side, front or back of the vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

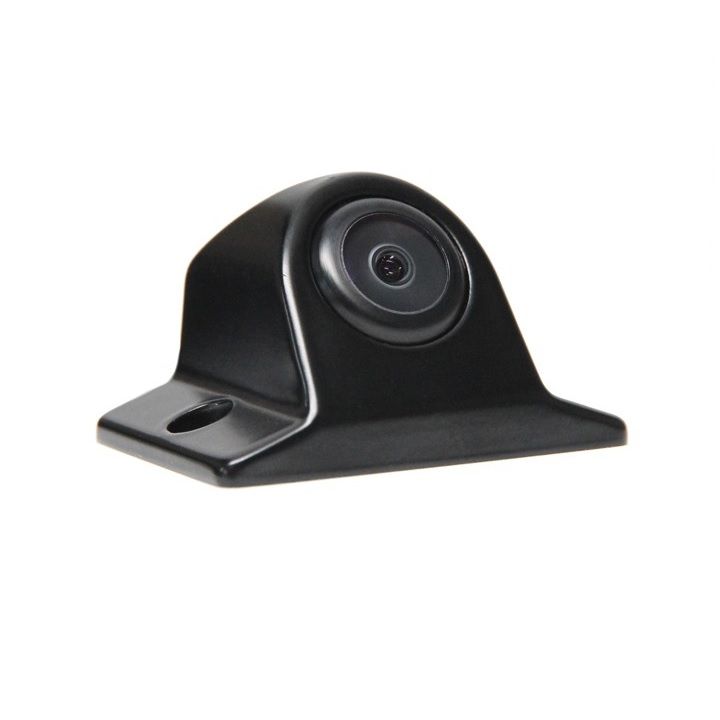

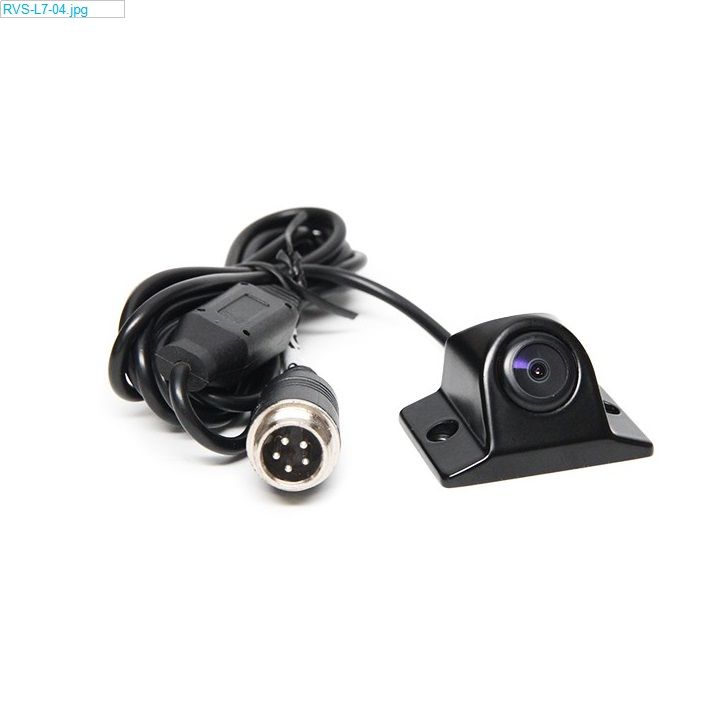

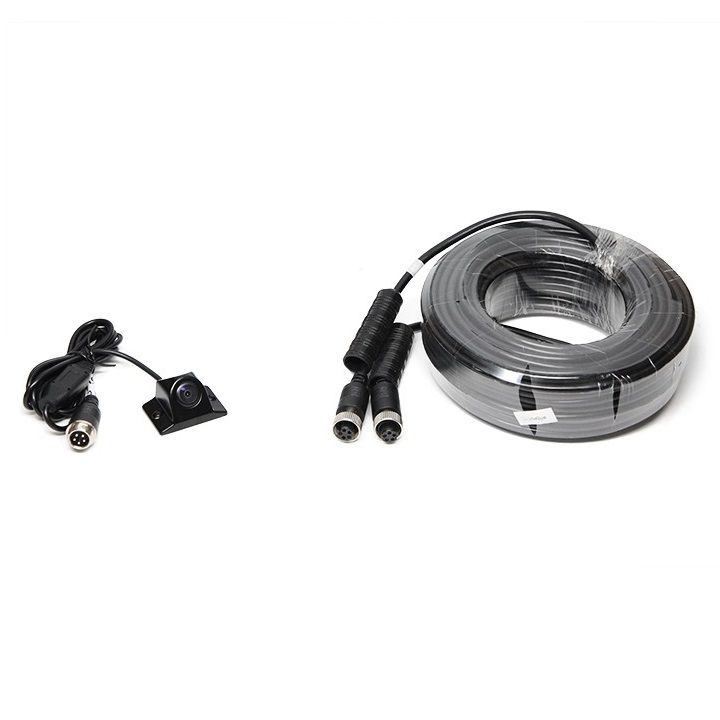

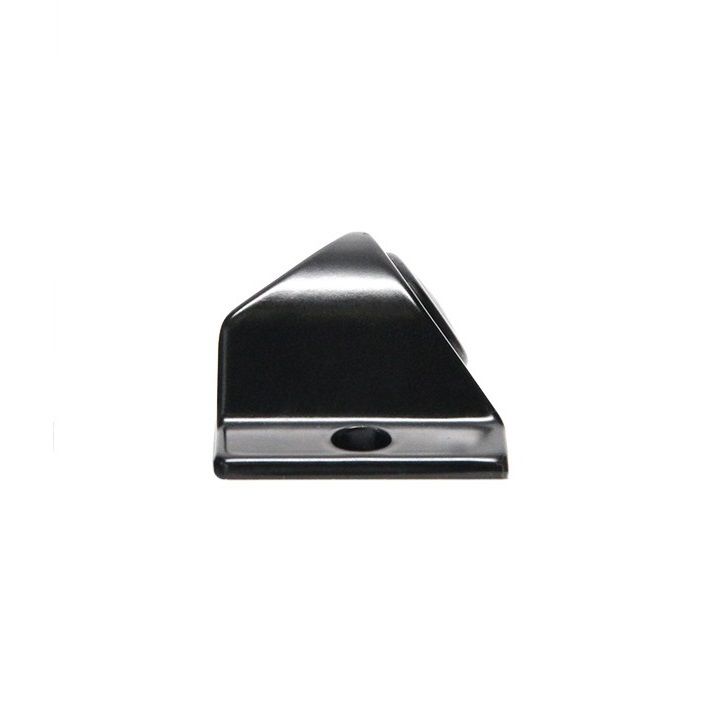

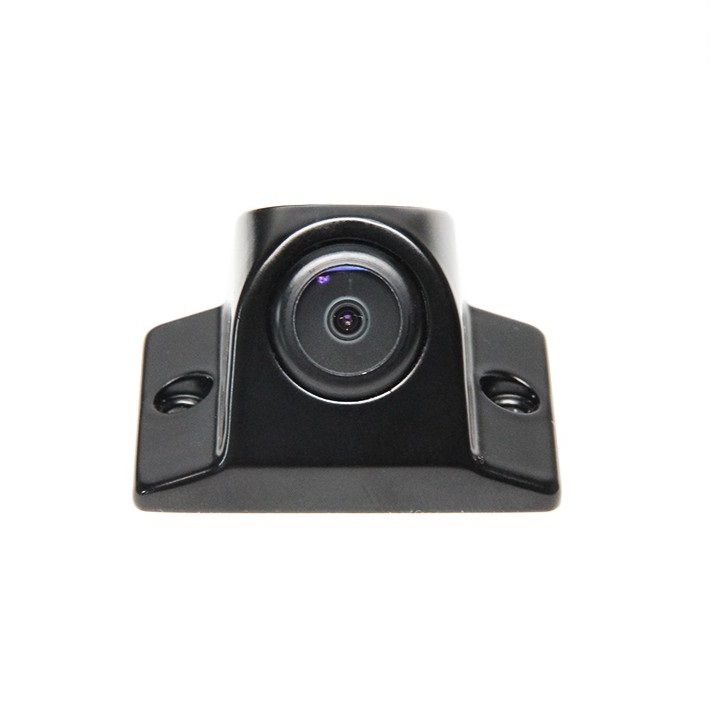

The RVS-L7-04 from RVS Systems is a Left Side Compact camera that surface mounts on the side of the vehicle. Boasts an ultra-wide viewing angle of 170° and excellent night vision. The camera comes with 66' Camera Cable with a double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power, Cable to connect power to RCA adapters.
RVS Systems RVS-L7-04 Camera Features
- Surface Mounting: Easily surface mounts on the side, front, or back of the vehicle for versatile placement.
- Wide Viewing Angle: Features a 170° all-encompassing angle, providing maximum visibility to reduce blind spots.
- Compact Design: The compact size allows for discreet installation without compromising on performance.
- Night Vision: Excellent night vision capabilities enhance visibility in low-light conditions, ensuring safety during nighttime driving.
- Waterproof Rating: Completely waterproof with an IP68 rating, making it resistant to harsh weather conditions and ensuring durability.
RVS Systems RVS-L7-04 Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | RVS-L7-04 |
| Viewing Angle | 170° |
| Camera Type | Left Side Surface Mounted Camera |
| Cable Length | 66' |
| Connection Type | Double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power |
| Waterproof Rating | IP68 |
| Night Vision | Yes |
| Installation Type | Surface Mount |
SKU  | RVS-L7-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 500 TVL |
| Sensor Option | 1/3" CMOS |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Image Device | PC3089 1/3 inch CMOS |
| Image Pixels-Effective | 740 (H) x 580 (V) |
| Power Consumption | <50mA@12V |
| Signal System | NTSC/PAL |
| Weatherproof | IP68 |
| Auto Gain Control | Yes |
